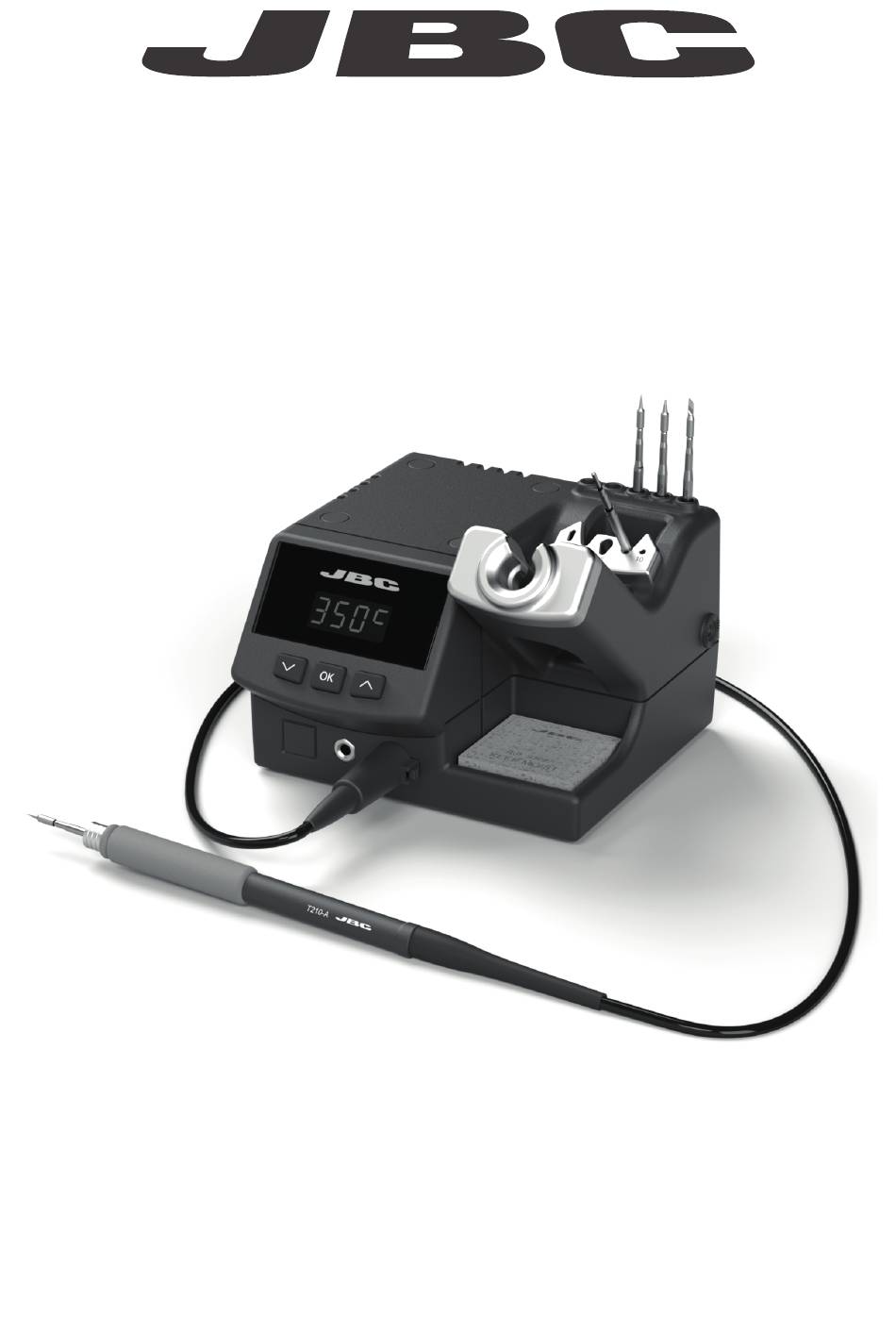

Packing List The following items should be included: LC Control Unit ........1 unit Precision Purpose Handle ....1 unit Ref. LC-2SIA (230V) Ref. T210-A Power Cord ..........1 unit Sponge ............1 unit Ref. 0019162 (230V) Ref. S2027 Manual ............1 unit Ref.
Page 3
w w w.jbctools.com Features Cartridge storage LC Control Unit Ref. LC-2SA Quick Tip Changer Process Screen Sponge Ref. S2027 Equipotential connection to tool Fuse Main switch Power Socket...
Page 4
Mark ø 3,5 ø 1 ø 1,5 Compatible cartridges The LC-2SIA stations work with C210 cartridges. Find the model that best suits your soldering needs in www.jbctools.com Conical Chisel Conical-bent...
Page 5
w w w.jbctools.com Accesories* Wiper LC Ref.CL1170 Placing the Wiper 1. Insert the wiper in the 2. Press the wiper down to 3. Make sure that the wiper is cleaning place of the LC Unit fix it in place. inserted correctly. Control.
Operation The JBC Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases by 5. 1. Work 2. Sleep 3. Hibernation...
w w w.jbctools.com Control Process Menu - By pressing OK during three seconds will enter in Program. - Moves by the options with the up and down keys. Stations settings Tool settings Counters Factory Password Temperature unit Sleep delay* Total hours Insert new code Maximum temp.
Page 8
Min. temp. by or plastics (e. g. riveting). power (e.g. multilayered or default is 200ºC (392ºF). This high dissipation boards), is considered to be a proper JBC recommends using starting point for leaded other aids like preheaters. applications. Beep Enable/disable the beep sound of the keypad.
Page 9
Set values within ±50°C It provides a more precise (± 90°F) to achieve zero error. When you change adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset actual one.
If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
Page 11
w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Make sure that it is properly grounded before use.
