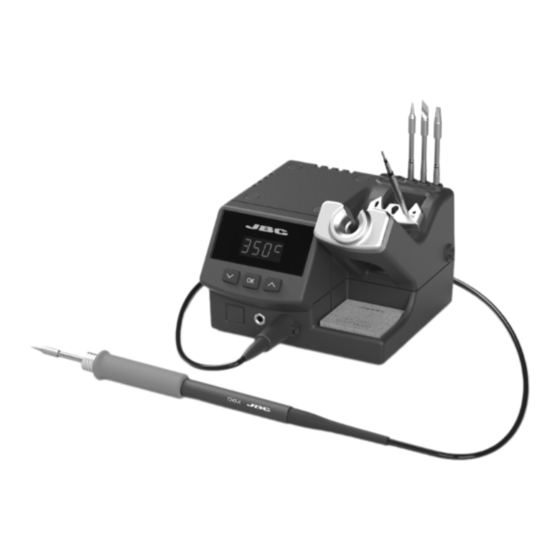

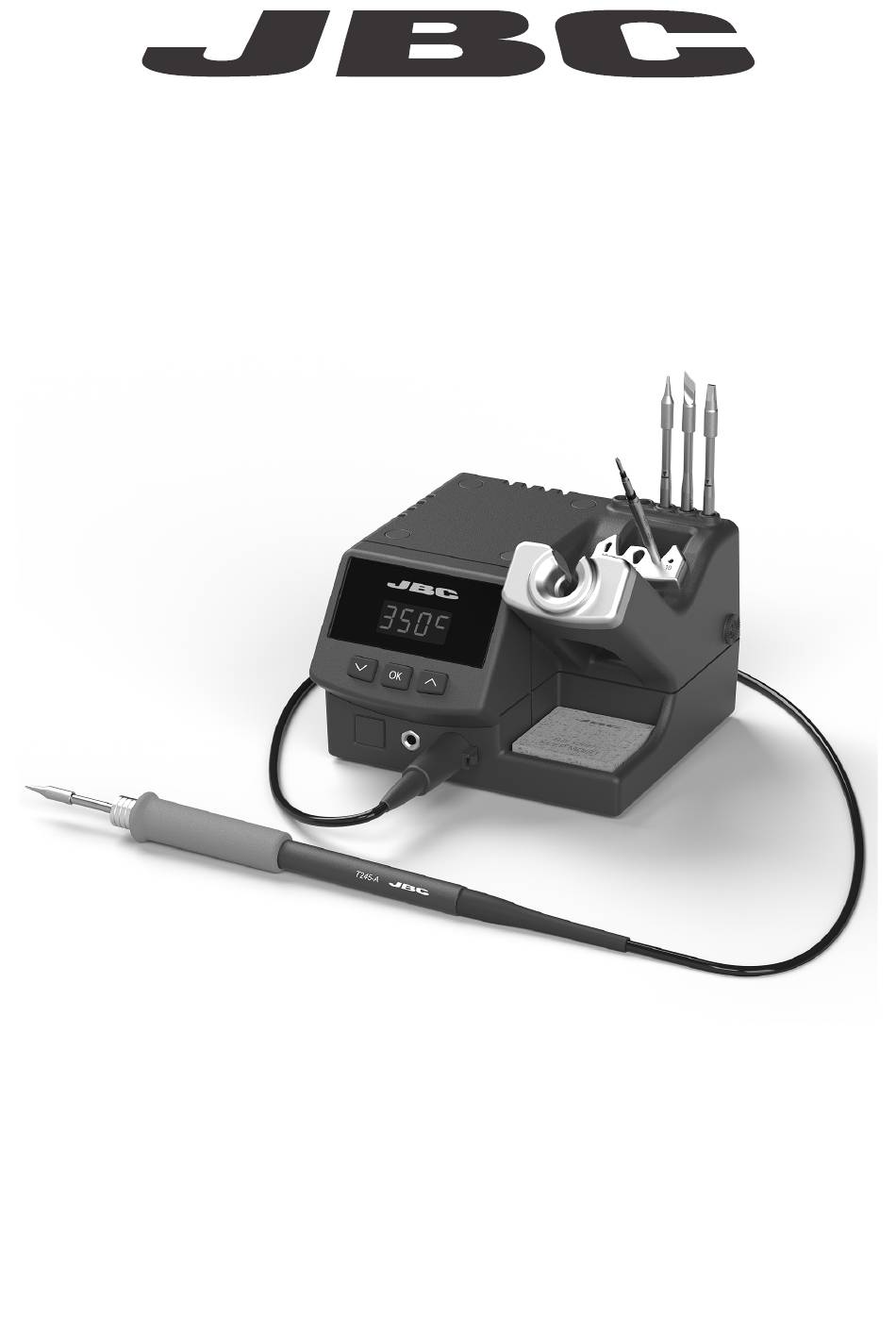

- Page 1 INSTRUCTION MANUAL Soldering Station Ref. LC-2BA...
-
Page 2: Packing List
Packing List The following items are included: LC Control Unit ........1 unit General Purpose Handle ...... 1 unit Ref. LC-2BA (230V) Ref. T245-A Power Cord ..........1 unit Sponge ............1 unit Ref. 0019162 (230V) Ref. S2027 Manual ............1 unit Ref. - Page 3 Features Cartridge storage LC Control Unit Ref. LC-2BA Quick Tip Changer Process Screen Sponge Ref. S2027 Equipotential connection to tool Fuse Main switch Power Socket...
- Page 4 Mark ø 3,5 ø 1 ø 1,5 Compatible cartridges The LC-2BA stations work with C245 cartridges. Find the model that best suits your soldering needs in www.jbctools.com Conical Chisel Conical-bent...
- Page 5 w w w.jbctools.com Accesories* Wiper LC Ref.CL1170 Placing the Wiper 1. Insert the wiper in the 2. Press the wiper down to 3. Make sure that the wiper is cleaning place of the LC Unit fix it in place. inserted correctly. Control.
-
Page 6: Operation
Operation The JBC Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases by 5. 1. Work 2. Sleep 3. Hibernation... -
Page 7: Control Process
w w w.jbctools.com Control Process Menu - By pressing OK during three seconds will enter in Program. - Moves by the options with the up and down keys. Stations settings Tool settings Counters Factory Password Temperature unit Sleep delay* Total hours Insert new code Maximum temp. - Page 8 Min. temp. by or plastics (e. g. riveting). power (e.g. multilayered or default is 200ºC (392ºF). This high dissipation boards), is considered to be a proper JBC recommends using starting point for leaded other aids like preheaters. applications. Beep Enable/disable the beep sound of the keypad.
- Page 9 Set values within ±50°C It provides a more precise (± 90°F) to achieve zero error. When you change adjustment between the JBC strongly recommends the cartridge type, the selected temperature and the the use of TID-A or TIA-A parameter should be reset actual one.
-
Page 10: Maintenance
If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 11 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 12 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
- Page 13 w w w.jbctools.com Notes...
- Page 14 Notes...
- Page 15 w w w.jbctools.com Notes...
-
Page 16: Specifications
Specifications LC-2BA 230V 50/60Hz. Input fuse: 1A. Output: 23.5V - Temperature Range: 90 - 450 °C (190 - 840 °F) - Output Peak Power: 130 W - Idle Temp. Stability (still air): ± 1.5 ºC / ± 3 ºF - Tip to ground resistance: <2 ohms...
