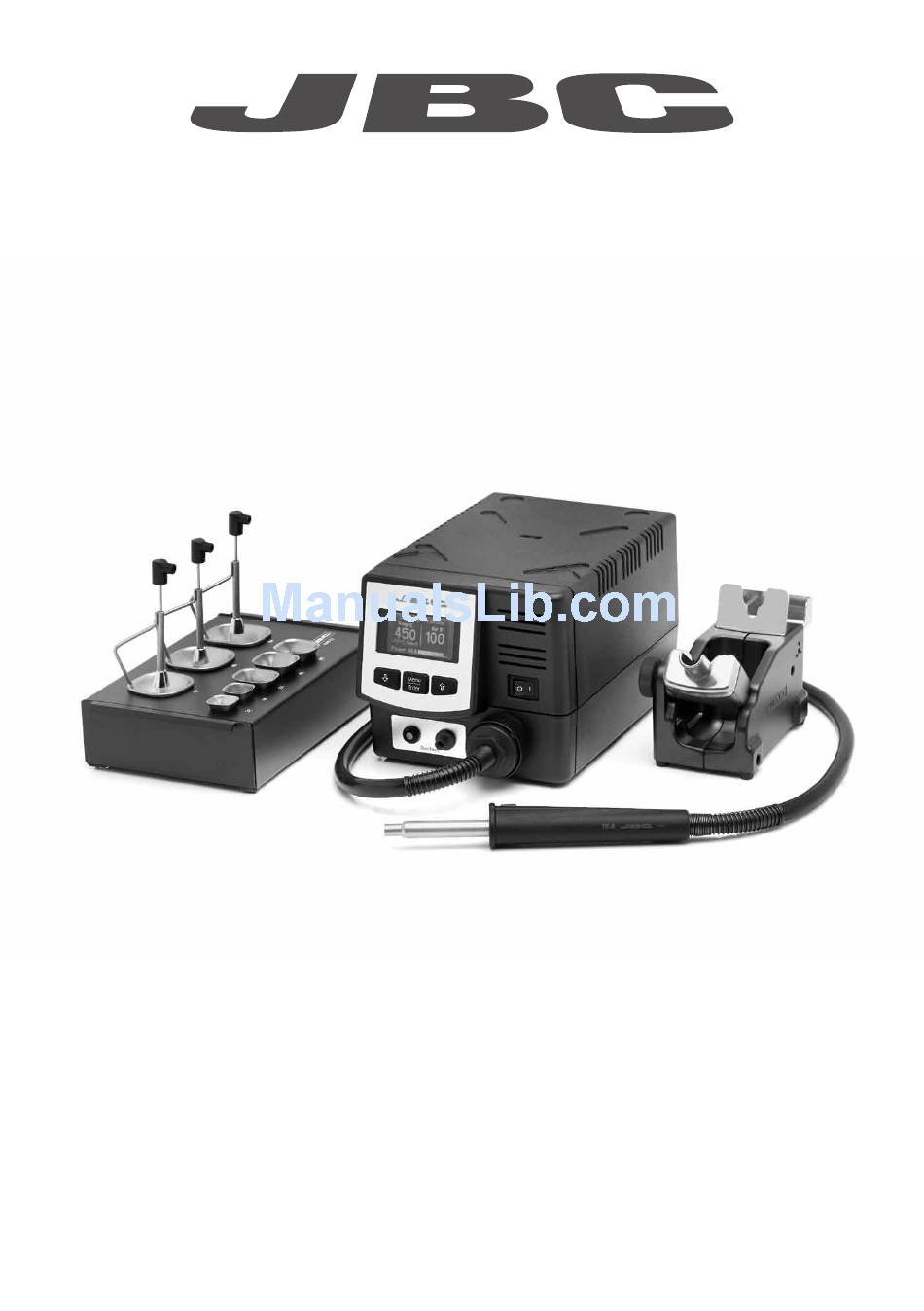

- Page 1 www.jbctools.com www.jbctools.com English Precision Hot Air Station Ref. TE-C...
-
Page 2: Packing List
w w w.jbctools.com Packing List The following items should be included: Precision Heater JTE Control Unit ....1 unit Stand ........1 unit hose set ......1 unit Ref. JTE-1C Ref. TE-SA Ref. TE-TB JTE-2C JTE-9C Extractor desk* ..........1 unit Accessory set Ref. 0008752 Ref. - Page 3 Adjustable Stand Nozzle Changer Nozzle changer Suits your work position USB-B connector Update the station software from the JBC website Activates the suction pump Compatible Nozzles Precision Heater Hose set The TE-TB works with TE nozzles. Find the model that best suits your soldering needs in www.jbctools.com Ref.
-
Page 4: Operation
w w w.jbctools.com Protectors & Extractors Operation 1. Placing 2. Heating 3. Releasing For small components For large components (fig. 1 and 2). (fig. 3 and 4). We recommend using the protector + tripod We recommend using the extractors Protectors Extractors Position the extractor with the Heat the component by... - Page 5 w w w.jbctools.com Program Mode Menu Screen Original PIN: 0105 P r o g r a m 8 Selected program M a i n m e n u º T e m p º Reset settings Station Settings Current temperature Program Settings Graph of selected Counters...
-
Page 6: Replacing The Heating Element
w w w.jbctools.com Replacing the Heating Element Pick & Place (not supplied with TE) Only perform this operation when the element is cold and the unit is disconnected from the mains. This tool helps you easily place and remove SMDs of any size thanks to the suction pump. 1. -
Page 7: Maintenance
Children must not play with the appliance. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Maintenance must not be carried out by children unless supervised. -
Page 8: Specifications
Specifications Exploded View TE-1C 120V 50/60Hz. Input fuse 8A. Rated Current 6A. Control Unit model: JTE-1C TE-2C 230V 50/60Hz. Input fuse 4A. Rated Current 3A. Control Unit model: JTE-2C TE-9C 100V 50/60Hz. Input fuse 8A. Rated Current 7A. Control Unit model: JTE-9C - Weight: 5.2 kg (11.4 lb) - Page 9 Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
