INSTRUCTION MANUAL
JNA

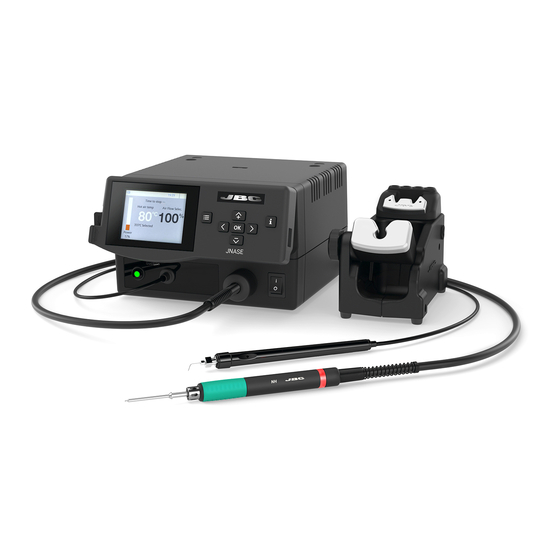

High Precision Hot Air Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JNA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc JNA

Summary of Contents for jbc JNA

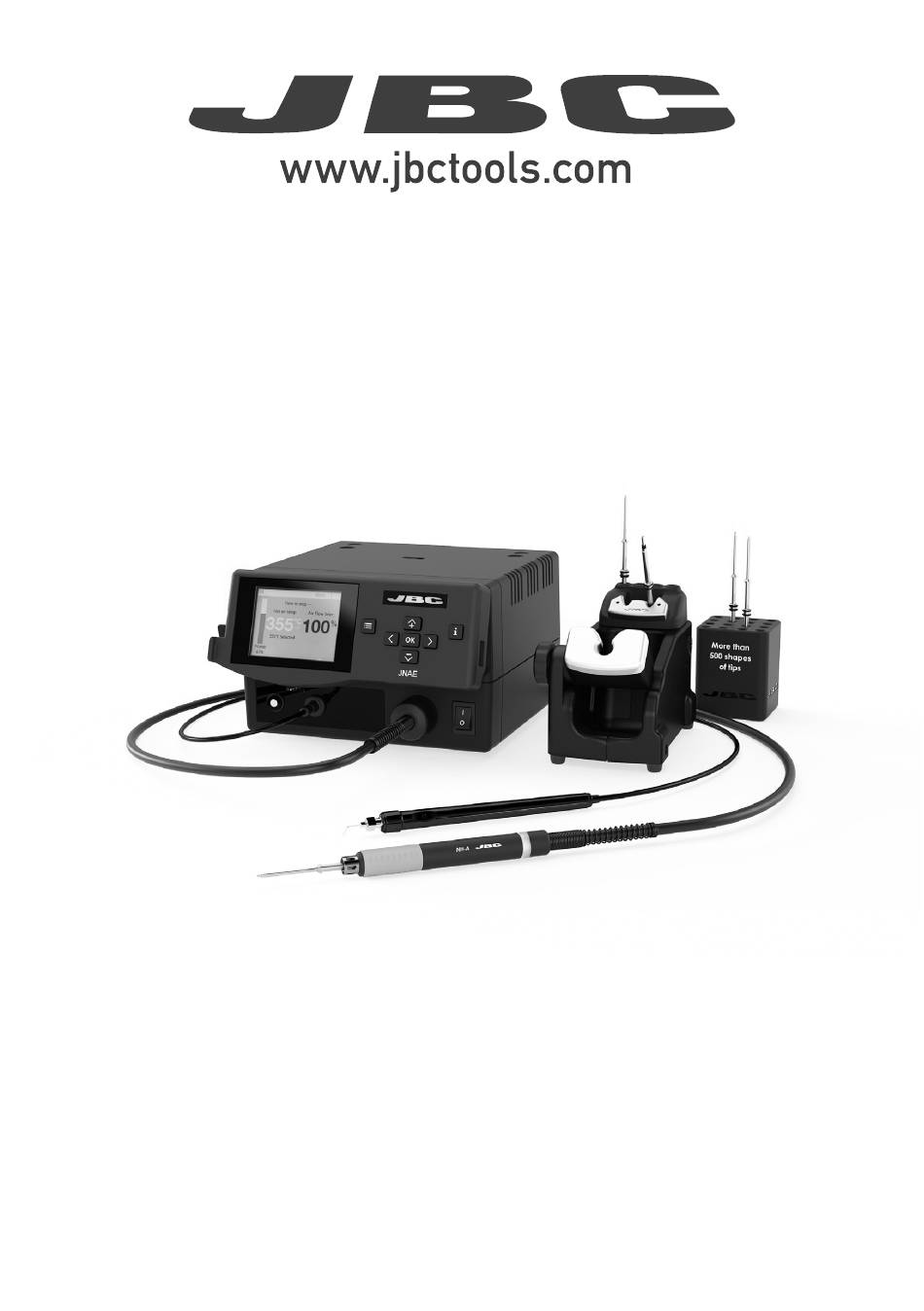

  • Page 1 INSTRUCTION MANUAL High Precision Hot Air Station...

  • Page 2: Packing List

    This manual corresponds to the following references: JNASE-9A (100V) JNASE-1A (120V) JNASE-2A (230V) Packing List The following items are included: JNAU Control Unit (85V -265V) ....1 unit Stand .............1 unit Ref. NA-SA High Precision Heater Hose Set ....1 unit Heating Element..........1 unit Ref.
  • Page 3 w w w.jbctools.com Pedal.............. 1 unit Pick & Place ..........1 unit Ref. P-405 Ref. T260-A Matallic Needles & Cup Set ....1 unit Power Cord ..........1 unit Ref. 0026490 Ref. 0024092 (100V) 0023715 (120V) 0023714 (230V) Manual ............1 unit Cartridge Holder ........

  • Page 4: Features And Connections

    Features and Connections JNAU Control Unit Cartridge (not inluded) Ref. J125010 Process Screen USB-A Connector Pick and Place Activation Switch Main Switch High-Precision Pick & Place Heater Hose Set Ref. T260-A Ref. NH-A JNAU Control Unit Stand Power Socket (not inluded) Ref.

  • Page 5: Changing Cartridges

    It is essential to insert the cartridges as far as the mark for a proper connection. Mark Compatible Cartridges The JNA High Precision Hot Air Station works with J125 Cartridges and NH High Precision Heater Hose Set.w Find the model that best suits your soldering needs in www.jbctools.com...
  • Page 6 Pick & Place This tool helps you place and remove SMDs of any size easily thanks to the suction pump. Pick & Place Metallic Needles & Cup Set* Ref. T260-A Ref. 0026490 *Set includes the following needles and cups (2 units of each reference): - Ref.
  • Page 7 w w w.jbctools.com Pedal By means of the Pedal (ref. P-405) connection the Heater Hose Set (ref. NH-A) for hot air funtion and the Pick & Place Tool (ref. T260-A) for suction function may be activated and deactivated. Made in EU PATENTED 85-265V 50/60Hz Power 70W...
  • Page 8 For most rework processes JBC recommends a preheat temperature between 90 and 130 ºC / 195 and 265 ºF and not exceed a heating rate of 4 ºC/s. With the use of JBC preheaters, a homoge- neous and controlled heating is achieved within the recommended parameters.
  • Page 9 JNA Work Screen The JNA offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105 Status Bar 17:14 Status Indicator 4m 38s Instant Power Supplied to Hot Air Temp. Air Flow Selec.

  • Page 10: System Notifications

    Station Update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the file downloaded to the station. Update System Notifications The following icons will be displayed on the screen’s status bar. USB flash drive is connected.

  • Page 11: Maintenance

    Employer uniquement avec un fusible de 250V un fusible de 250V Fuse holder Fuse holder - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 12 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Make sure that it is properly grounded before use.
  • Page 13 w w w.jbctools.com Notes...
  • Page 14 Notes...

  • Page 15: Specifications

    w w w.jbctools.com Specifications JNASE-9A 100V 50/60Hz. Main fuse: T2A. Rated current 0.85A JNASE-1A 120V 50/60Hz. Main fuse: T2A. Rated current 0.85A JNASE-2A 230V 50/60Hz. Main fuse: T2A. Rated current 0.85A - Temperature Selection: Room temp. / 150 - 450 °C / 300 - 840 °F - Nominal Power: - Cool Mode: Temp.
  • Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
