Installing the VESA Mount (Optional)

NOTE:

• Use only wall mount kits approved by the manufacturer. Wall mount kits are sold
separately.
• The Touch Terminal device is compatible with a VESA mounting hole pattern of
75x75mm.

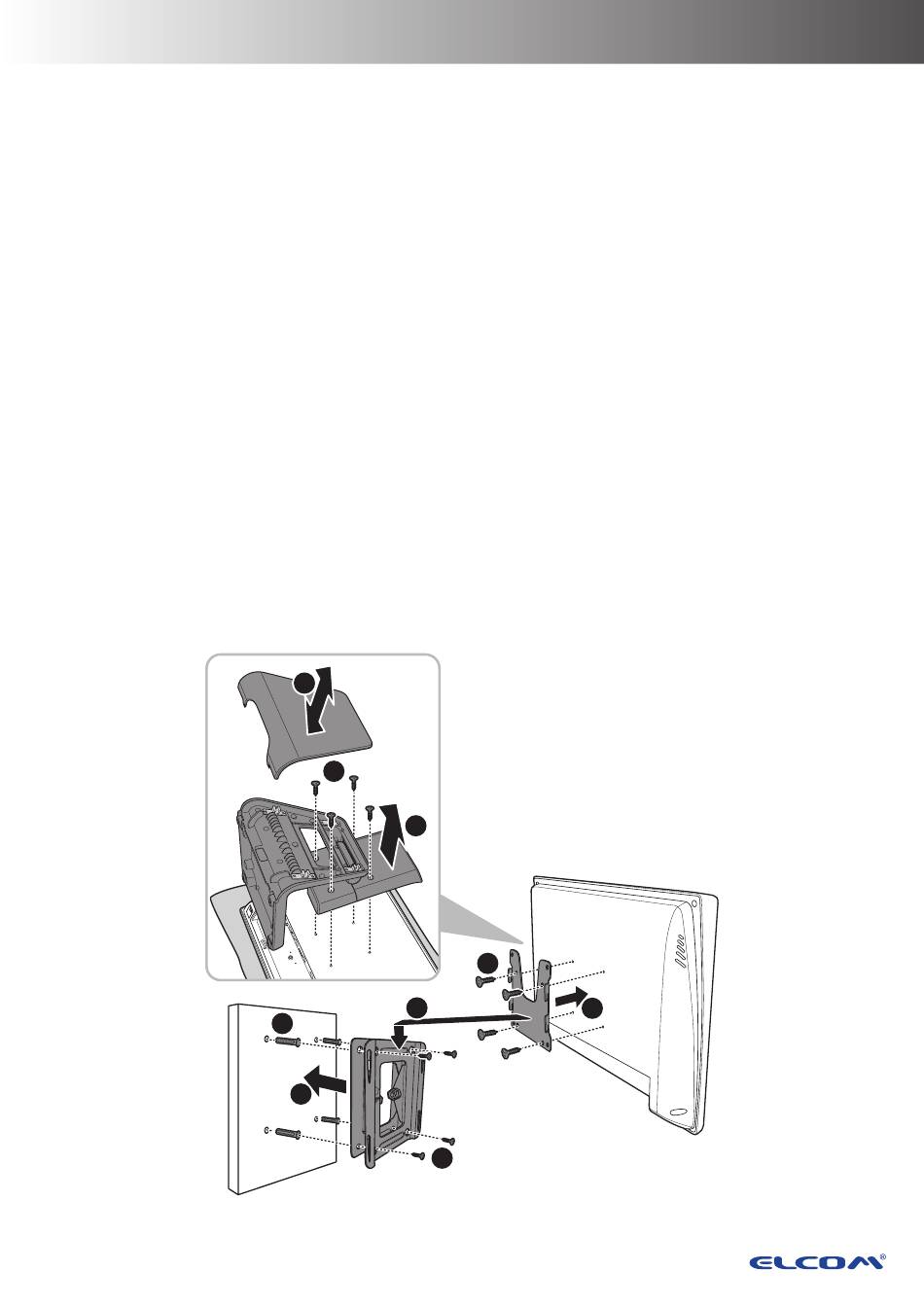

1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing down.
Remove the cable compartment cover.
2. Remove the four screws on the stand.
3. Remove the stand.
4. Align and install the mount bracket on the back of the Touch Terminal.
5. Secure the mount bracket to the Touch Terminal with the four screws.
6. Drill four small holes on the mounting location and insert the plastic washers into the holes.
7. Align by the screw holes and then install the wall bracket on the wall.
8. Secure the wall bracket to the wall with the four supplied screws.
9. Align and hook the Touch Terminal to the wall bracket, and then push down to secure it into
place. (i)
10. Replace the cable compartment cover for storing the stand assembly.
