PREPARING FOR THE INSTALLATION

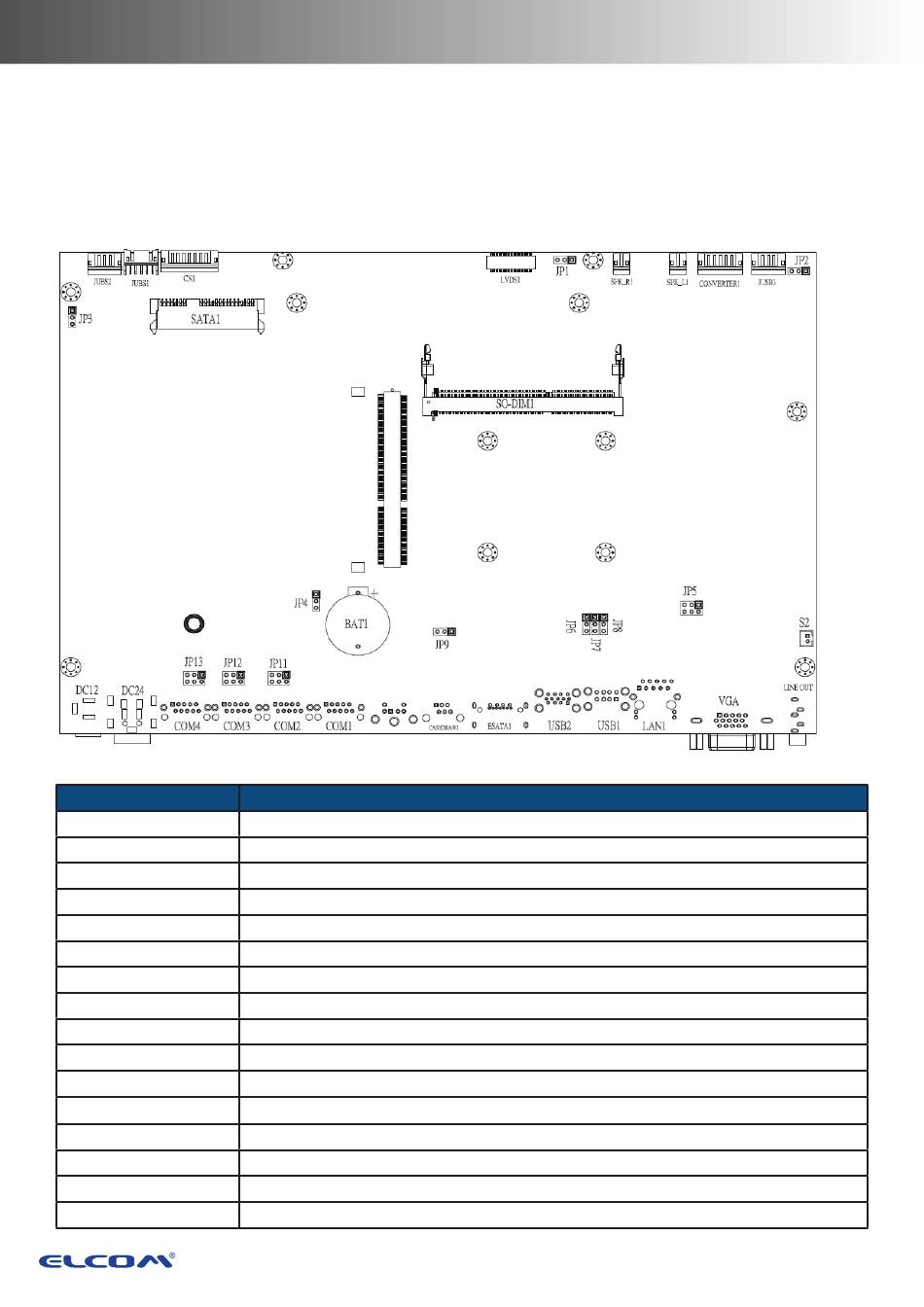

Main Board Jumper Setting and Connector
Definition
W-615
Connector/Jumper Description
LINE OUT
VGA
LAN1
USB1
USB2
ESATA1
CASHDRAW1
COM1
COM2
COM3
COM4
DC24
DC12
JUSB1
JUSB2
JUSB3
Audio line output connector
VGA output
LAN connector
USB2.0 *2 connector
USB3.0 *1 connector USB2.0 *1 connector
E-SATA + USB connector
Cash Drawer output
COM1 connector
COM2 connector
COM3 connector
COM4 connector
24V DC power input
12V DC power output
USB port for USB Touch
USB port for POS input device
USB port for POS input device
22
