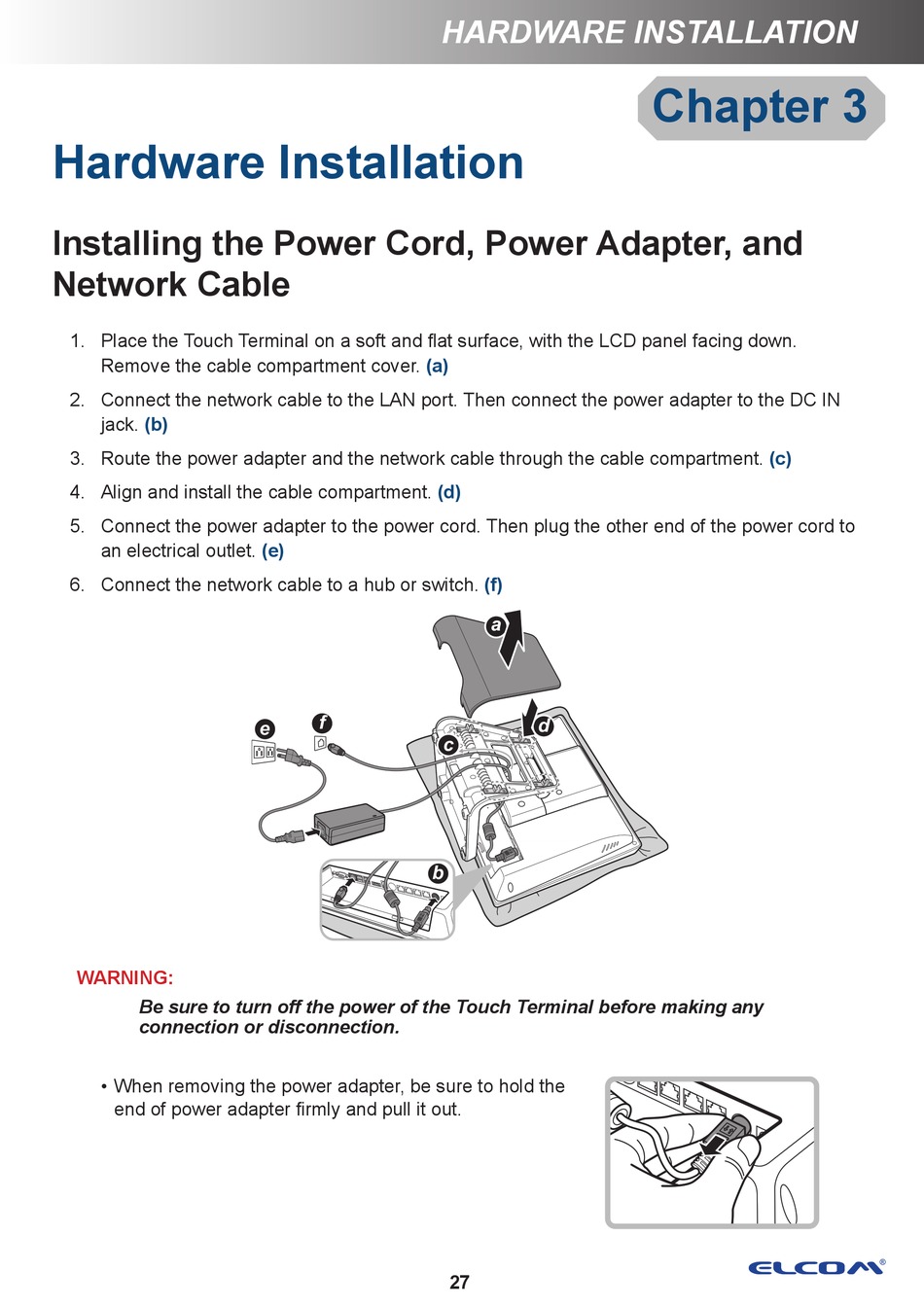

Hardware Installation
Installing the Power Cord, Power Adapter, and
Network Cable
1. Place the Touch Terminal on a soft and flat surface, with the LCD panel facing down.
Remove the cable compartment cover.
2. Connect the network cable to the LAN port. Then connect the power adapter to the DC IN
jack. (b)
3. Route the power adapter and the network cable through the cable compartment.
4. Align and install the cable compartment.
5. Connect the power adapter to the power cord. Then plug the other end of the power cord to
an electrical outlet.
6. Connect the network cable to a hub or switch.

ARNINNG:

Be sure to turn off the power of the Touch Terminal before making any
connection or disconnection.
• When removing the power adapter, be sure to hold the
end of power adapter firmly and pull it out.
(a)
(e)
f
e
b
HARDWARE INSTALLATION HARDWARE INSTALLATION
(d)
(f)
a
d
c
27
Chapter 3
(c)
