1 | System Overview
4 / 28

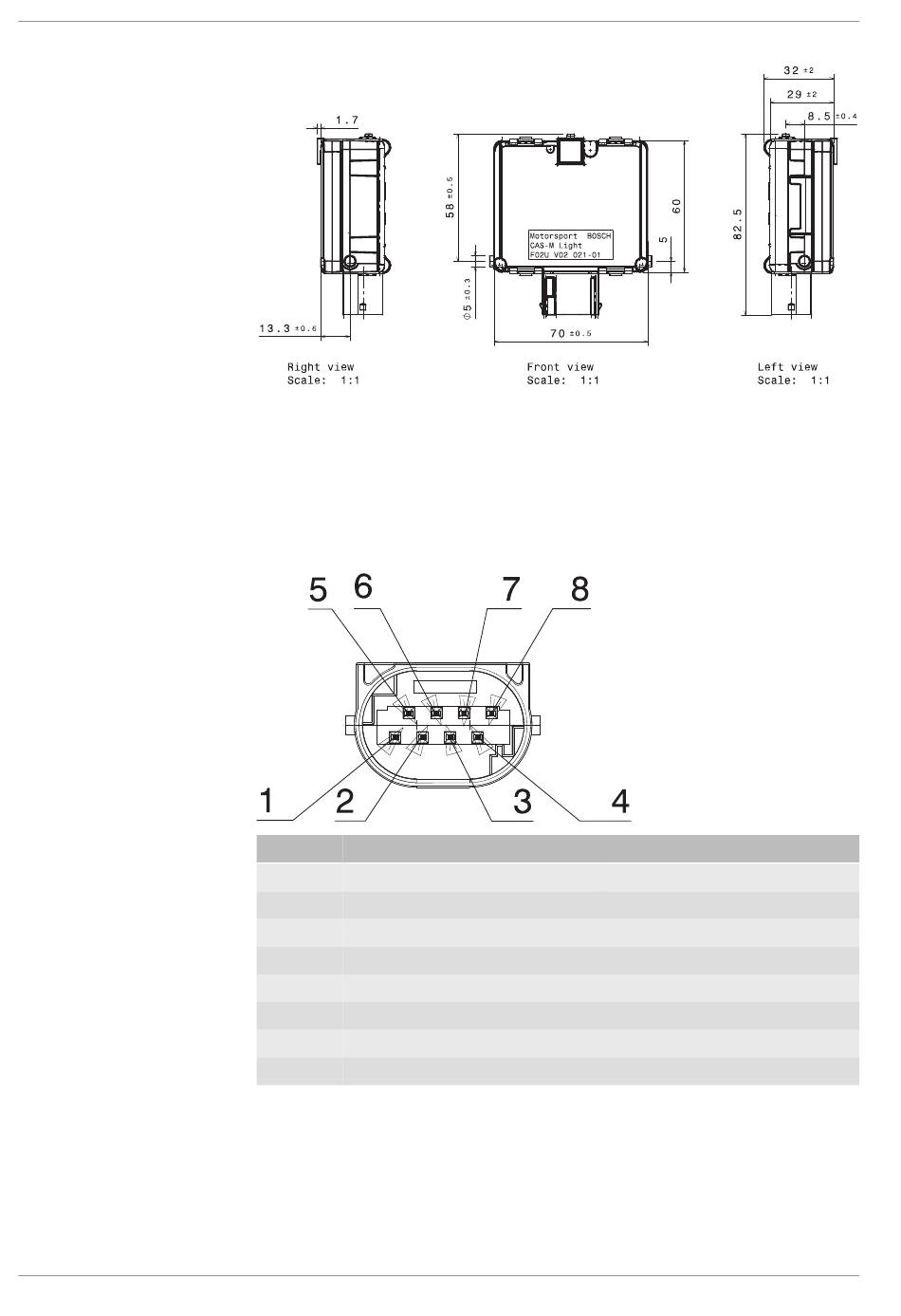

Illustration 2: CAS-M light dimensions
1.3 Wiring
The sensor needs to be connected to the vehicle CAN bus (connection to display needed)
and supplied with 12 V from the supply system on board. For the speed calculation of the
approaching cars, the sensor needs to know the vehicle's speed.
Pin
Designation
1
GND
2
CAN-H
3
CAN-L
4
Not connected
5
Not connected
6
Not connected
7
Not connected
8
V+
Collision Avoidance System CAS-M light
Description
Sensor Ground
CAN High
CAN Low
Not connected
Not connected
Not connected
Not connected
Supply voltage for sensor (12 V)
Bosch Motorsport
