No: D000064 – 5/21 rev. 1

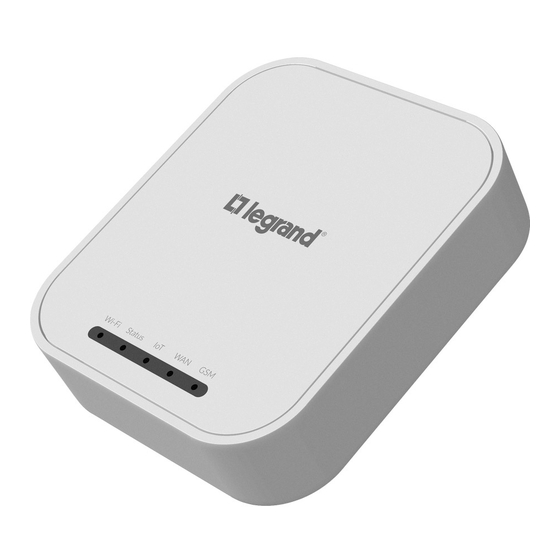

The QzHub3 hardware device allows you to easily control your QMotion Zigbee-enabled, motorized shades from your phone in
conjunction with the QzHub App. The QzHub App's intuitive interface and simple navigation allows you to easily edit, add, commission,
and control local shades.
•
The QzHub3 can handle up to 60 devices per hub. Devices include shades, remotes, and extenders. Multiple hubs are allowed if
needed beyond the alloted 60 devices.
•
ZigBee 3.0 ready and scalable for future updates
•
Compatible with QMotion RZ2 and LeedZRX range extenders
Download the QMotion QzHub App from either Google Play or the App Store.
Simply hook the power cord in and connect the QzHub3 to a router with an Ethernet cable.
POWER
OVERVIEW
FEATURES AND OPERATION OVERVIEW
SOFTWARE

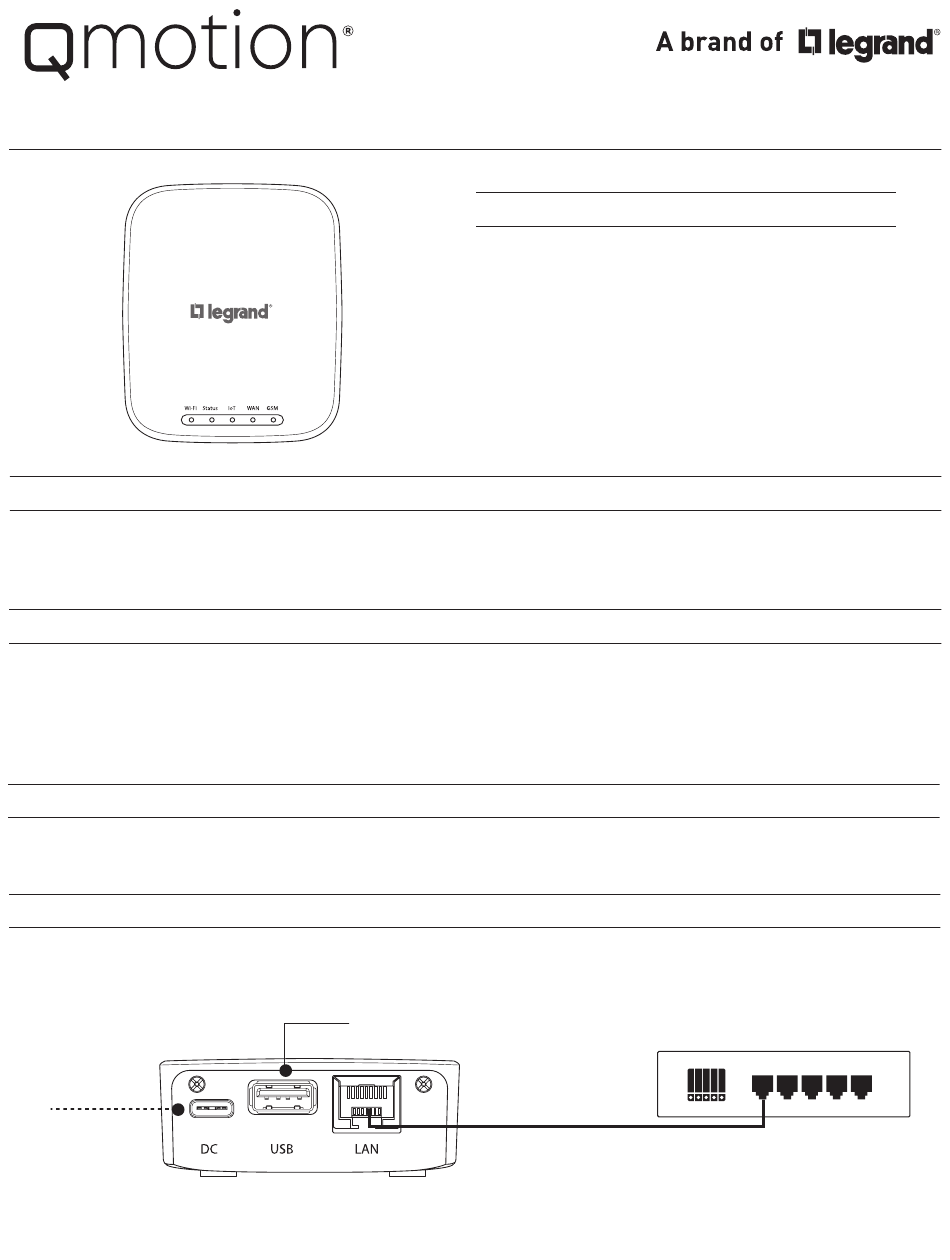

CONNECTION DIAGRAM
USB PORT
QzHub3 / QzApp 2.1
User's Guide
SPECIFICATIONS
Dimensions, HWL
....................
LED Indicator
..................................
Power
...........................................
Available Plug Type ............................................... Type A (Nema)
Ports .......................................................................Ethernet, USB
Operation ................................................................... WPS Button
Storing Temperature ........................... -4° to 140°F (-20° to 60°C)
Operating Temperature .........................32° to 122°F (0° to 50°C)
Regulatory ................. Meets US and Europe standards CE, FCC
Compliance ....................... Meets RoHS and REACH regulations
ETHERNET
1
1"H x 2.8125" W x 3.3125"L
Power, Zigbee, Ethernet
90-240V +/- 10%, 50/60Hz
ROUTER
Advertisement
Related Manuals for LEGRAND Qmotion QzHub3
Summary of Contents for LEGRAND Qmotion QzHub3
- Page 1 QzHub3 / QzApp 2.1 No: D000064 – 5/21 rev. 1 User’s Guide SPECIFICATIONS Dimensions, HWL 1”H x 2.8125” W x 3.3125”L ....LED Indicator Power, Zigbee, Ethernet ........Power 90-240V +/- 10%, 50/60Hz ........... Available Plug Type ..........Type A (Nema) Ports ...............Ethernet, USB Operation ..............
-
Page 2: Software Navigation
ELIOT CLOUD Download the QMotion QzHub App from either Google Play or the App Store. To start using your app you will You will need to create an Eliot need to agree to the new Terms cloud account to enable you and Conditions. - Page 3 USER INSTRUCTIONS GROUP CONTROL PAGE By default, the app launches to Group Control. This page contains a list of your device groups that can be raised and lowered using the arrow buttons. Tap a group to access individual group control. A list of various shade groups To access individual shade is displayed.
-
Page 4: Installer Instructions
INSTALLER INSTRUCTIONS SELECTING THE HUB QZHUB HARDWARE QzHub3 Upon logging in you will not have a QzHub designated hub and the first screen will prompt you to select which hub will be used in set up. ACTIVATING A HUB - QZHUB3 NOTE: You can activate and add multiple hubs to your Eliot account. - Page 5 ACTIVATING A HUB - QZHUB To activate a QzHub ensure it is Once the hub is activated you will plugged into a router. Enter the 6 see it listed on the devices page. digit code (located under the battery Tap on it to begin joining shades. cover), press and hold the red button on the back to put the hub in join mode, about 5 seconds.
- Page 6 ADDING SHADES Once a hub has been activated, you can start adding shades to the network. NOTE: You can only join one shade at a time. Go to the Add Devices page and One at a time, tug on the shades From here you should rename tap on your hub to begin pairing to cause them to search for an...
-
Page 7: Setting Limits
SETTING LIMITS Setting Limits can be accessed either when first adding a shade, or in the Edit Devices page under each individual shade. NOTE: Due to the nature of wireless communication, you may need to refresh the page or it will appear slow to respond as it reconciles communication between the hub, app, and shade motor. -
Page 8: Edit Devices
EDIT DEVICES To configure your devices, open The details page displays device To delete, press the trash icon. the navigation menu and select information. The Information section This will remove the device from Edit Devices. This will list your displays details about the device such as the hub. -
Page 9: Edit Groups
EDIT GROUPS The Edit Groups page takes you to an overview of your device groups. These will typically be a room or location in your home. Tap on the Edit Group. To add a new group, tap the “+” Tap on a group to begin editing. icon next to the hub. - Page 10 SETTINGS - QZHUB3 Open the navigation menu, tap on Settings, and select the hub. In the Settings page you may rename the QzHub3. It also displays the activation key used to authorized additional/ other devices. ACTIONS Prioritize Local Mode: Toggle mode which changes when pressed to these options: •...
- Page 11 QZHUB3 - TRANSFERRING OWNERSHIP AND REVOKING ACCESS In the settings for QzHub3, tap The person now can login to their To revoke a user, simply tap on the Transfer Ownership Eliot account when they open the on the revoke button and enter and enter the email that you are app to access the shades.
-
Page 12: Technical Notes
TECHNICAL NOTES On your Eliot account you are allowed multiple QzHub3s, but only one QzHub. QzHub3 Join Shade Blink Pattern: - IoT: Slow flash when in pairing mode; Rapid flash when device is joining QzHub3 only allows one admin user. If that user deletes the hub, all added users will be deleted. To transfer admin ownership, under hub settings you can tap on Transfer Ownership and follow the prompts to transfer. - Page 13 TUG COMMANDS Tug Command Mode will allow certain features to be performed manually without a learned remote. Read the following instructions completely before starting the procedure. Inputs from the user are time sensitive. If the shade times out before entering a tug command, return the shade to the Upper Limit Position and begin the procedure over.
-
Page 14: Troubleshooting
TROUBLESHOOTING • Make sure QzHub3 and app are on the same network. • If you need to clear a shade manually, or the shade is not discoverable and you need to reset it, follow the manual tug commands on previous page. •... - Page 15 QR con su appareil mobile. dispositivo móvil. No. D000064 – 05/21 Rev. 1 © Copyright 2021 Legrand All Rights Reserved. 877-849-6070 © Copyright 2021 Tous droits réservés Legrand. www.legrand.us/shading © Copyright 2021 Legrand Todos los derechos reservados.
