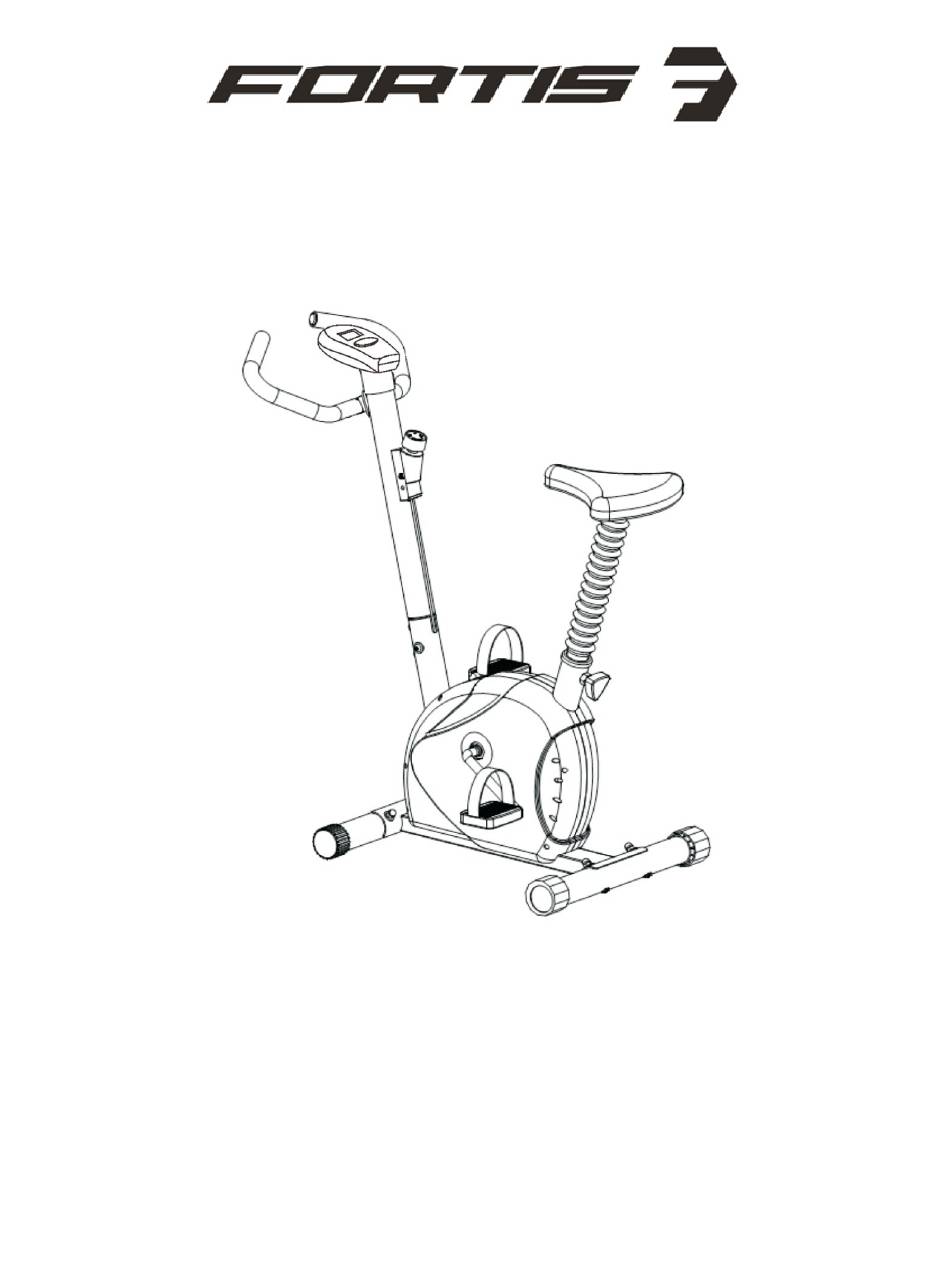

Variable Resistance Exercise Cardio Bike
FSCMPEXBIKA
Quick Start Guide
Table of Contents
Safety & Warnings ................................................................................................................................................... 2
Overview ...................................................................................................................................................................... 3
Assembly Instruction .............................................................................................................................................. 6
Operation ..................................................................................................................................................................... 9
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fortis FSCMPEXBIKA
Summary of Contents for Fortis FSCMPEXBIKA
- Page 1 Variable Resistance Exercise Cardio Bike FSCMPEXBIKA Quick Start Guide Table of Contents Safety & Warnings ..............................2 Overview ..................................3 Assembly Instruction .............................. 6 Operation ..................................9...
-
Page 2: Safety & Warnings
Safety & Warnings Please Keep This Manual in A Safe Place for Reference It is important to read this manual completely before assembling and using the equipment. Safe and efficient use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Overview
Overview Exploded-view Assembly Drawing... - Page 4 Spare Parts Name Instruction Quantity Main Pedal Body Assembly Set Assembling unit Internal Metal Chassis Cover (Left) Plastic Cover (Right) Plastic Cover Decorative Cover Plastic Bushing Plastic Crank Set Assembling unit Belt 20 x 50mm Belt Hook Ø2.5 x 43 Belt Spring Ø12 x Ø1.8 x 38 1-10...
- Page 5 Seatpost Ø38 Head Tube Assembling unit Tension Screw M5 x 12 Handle Ø22 x 1.2 Handle Foam Ø30 x 4 x 420 Pipe Plug Plastic Seat Computer Computer Stand Left Pedal Right Pedal Adjustment Knob Carriage Bolts M8 x 60 Arc Spacer Ø20 x Ø8.5 x 1.5 Cap Nut...
-
Page 6: Assembly Instruction
Assembly Instruction Step 1 Fix the Front Stabiliser Bar (2) on the Main Pedal Body Assembly (1) with the Carriage bolts (13) and Arc spacer (14). The Rear Stabiliser Bar (3) is attached in the same manner as the Front Stabiliser Bar (2). Note: The end tube cap (3-1) can be adjusted to make the whole bike stable. - Page 7 Step 3 Insert the Computer Wire (End) (20) into the Computer Wire Extension (19) and make sure the connection is OK. Insert the Head Tube (5) into Main Pedal Body Assembly set (1). Fix with the Arc spacer and Disc hexagonal nut. Fix the Upper Tension Cable (21) into the Main Pedal Body Assembly (1) with the Tension screw (5-1).
- Page 8 Step 5 Set the Handle (6) on the Stand tube (5) with the Bolt (16) and Washer (14). Step 6 Set the Left Pedal (10) on the left crank and set the Right Pedal (11) on the right crank and tighten them with the Open End Wrench (23).
-
Page 9: Operation
Operation Button functions Mode: Press to select a function and hold on for 4 seconds to reset. (There is no separate reset button in the Computer) Functions Scan: Automatically scan through each function within a period of 6 seconds. Time: Displays the total workout time. Maximum value is 99:59hr. Speed: Displays the current speed during exercise.
