TECHNICAL SPECIFICATIONS
VIDEO
Video Bandwidth
300 MHz
Resolution
Up to 4Kx2K@30Hz
HDMI Version
HDMI 1.4
Interface
HDMI-A
CONTROL
Front Panel
Buttons
RS-232
DB9 (female)
TCP-IP
LAN accessible website
Remote Control
IR
MECHANICAL
Height
2.0 in.
Width
17.25 in.
Depth
9.0 in.
Weight
5.6 lbs
POWER
Max Consumption
20 W
Power Adapter
12 V / 3 A
WHAT'S IN THE BOX
PART NO.
QTY DESCRIPTION
4K Resolution 8x8
HDR-8X8-Plus
1
HDMI Router
PS12VDC3A
1
Power Supply
RMHDR8X8
1
IR Remote Control
HDR8X8-PLUS-EAR
2
Mounting Brackets
User Manual
1
Quick Start Guide
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI
makes no warranty of any kind with regard to
this material, including but not limited to, im-
plied warranties of merchantability and fitness
for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential dam-
ages in connection with the furnishing, perform-
ance or use of this material.
No part of this document may be photocopied,
reproduced, or translated into another lan-
guage without prior written consent from Smar-
tAVI Technologies, Inc.
20160725
Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

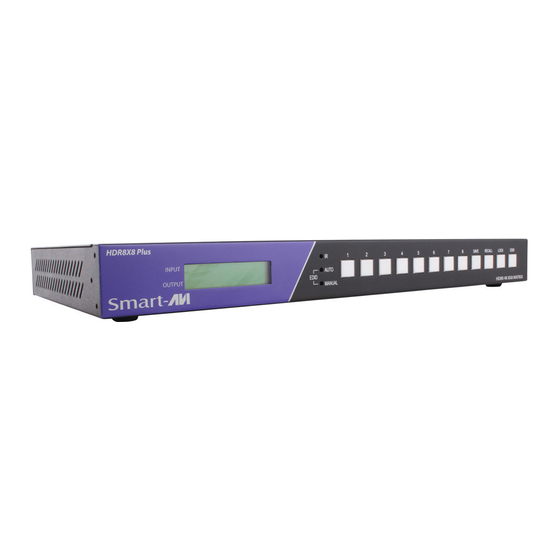

HDR-8X8-Plus
Quick Start Guide
4K 8x8 HDMI Switch
Matrix
Switch up to eight
different HDMI video
sources to up to eight
different outputs
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMART-AVI HDR-8X8-Plus
Summary of Contents for SMART-AVI HDR-8X8-Plus
-
Page 1: Quick Start Guide
TECHNICAL SPECIFICATIONS VIDEO Video Bandwidth 300 MHz Resolution Up to 4Kx2K@30Hz HDR-8X8-Plus HDMI Version HDMI 1.4 Interface HDMI-A NOTICE CONTROL Quick Start Guide The information contained in this document is Front Panel Buttons subject to change without notice. SmartAVI makes no warranty of any kind with regard to... -
Page 2: Edid Learning
Learn and automatically switch between signals with ease. with the EDID learning button EDID Learning Press the EDID learning front‐panel button to acquire information about output port signals. Back Panel Control Activate the HDR-8X8-Plus with the On/Off switch, Once pressed, the EDID button will illuminate LED indicators. and control the device with RS232 connections or Pressing buttons 1 or 2 illuminates the AUTO or MANUAL LEDs. TCP/IP web controls via Ethernet. IR Remote Control INSTALLATION DIAGRAM Switch inputs to outputs with ease.
