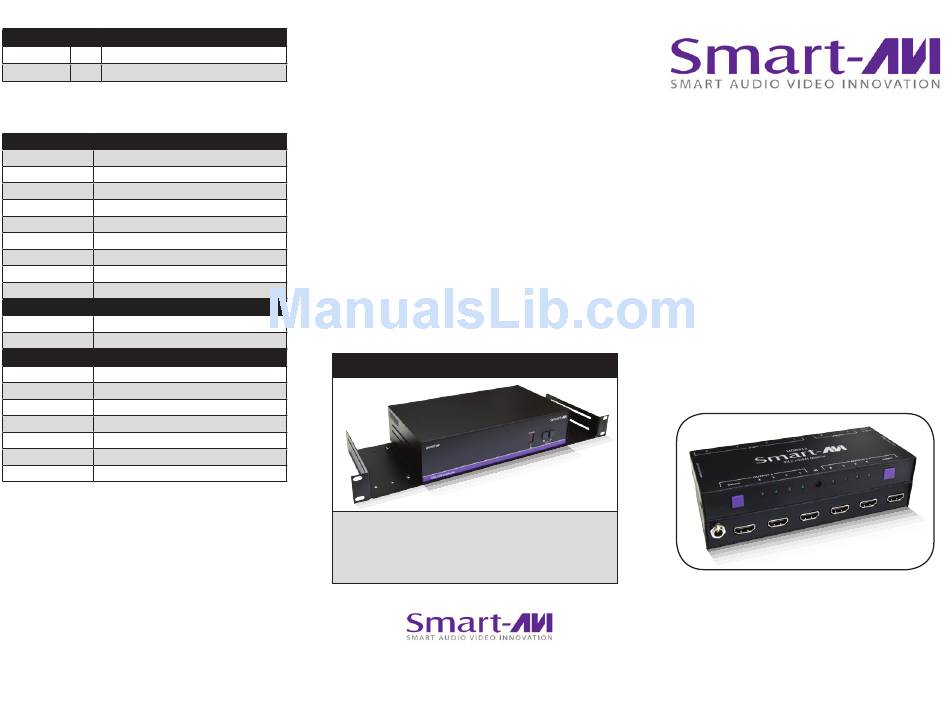

SMART-AVI HDR4X2 Installation Manual

What's in the Box?
PART NO. QTY DESCRIPTION
HDR4X2 1 HDR4X2 Router
Power Supply 1 PS5VDC2A

Technical Specifications

VIDEO
Format HDMI 1.3b [Deep Color, xvYcc color space supported]
DVI Compliance Single-link DVI-D 1.1
HDCP Compliance 1.0/1.1
Video Bandwidth Single-link 340MHz [10.2Gbps]
Resolution 480i,480p,720i,720p,1080i,1080p
Input Interface (4) HDMI[7.1ch audio & video]
Output Interface (2) HDMI[7.1ch audio & video]
Connector Type A[19-pin female]
Maximum Distance 25 ft.
CONTROL
Front Panel Tact Switch
IR Via Remote Control with IR Type 3
OTHER
Power External 100-240 VAC/5VDC2A @10W
Dimensions 6.625"W x 1"H x 2.875"D
Weight 0.8 lbs.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
© Copyright 2011 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
Rack Mountable Option
Our SmartRack is the perfect solution to allow
virtually all SmartAVI devices to be custom mounted
in a standard 19" server rack. The SmartRack is fully
adjustable and can secure/organize several devices.
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Installation
Manual

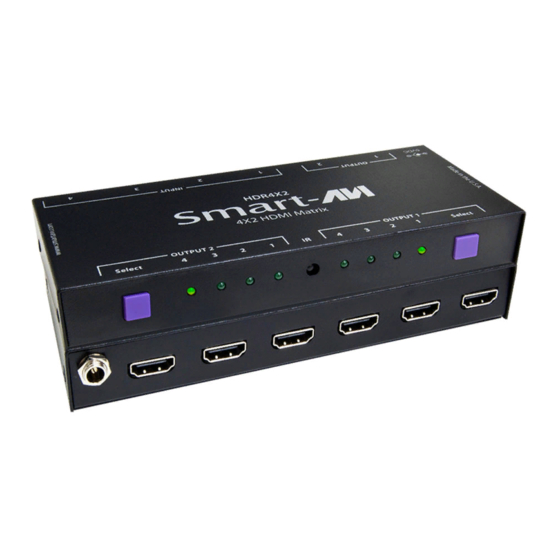

HDR4X2
High Definition 4X2
HDMI Matrix Switch
Switch Four HDTV 1080p HDMI Signals
Between Two Displays
