Page 2
EC Declaration of Conformity, available at www.jotron.com Abbreviations and definitions Antenna Changeover Unit AIS -Automatic Identification System. A shipborne broadcast transponder system in which ships continually transmit their position, course, speed and other data to other nearby ships and shoreline authorities on a common VHF radio channel.
Page 3
See COURSE OVER GROUND COURSE OVER GROUND Course made good relative to the sea bed. CURSOR A flashing rectangle superimposed on a character position in the display window, indicating that a character may be entered in that position, or that the existing character may be changed via the keyboard. DEFAULT A condition that the navigator assumes automatically if no other condition is initiated by the operator.
Page 4
Greenwich Mean Time. See also UNIVERSAL TIME COORDINATED. GPS SYSTEM TIME Time corrected to Universal Time Coordinated (UTC) and used as the time standard by the user segment of the GPS system. HEADING The direction in which the vessel is pointed, expressed as angular distance from north clockwise through 360 degrees. HEADING should not be confused with COURSE.
Page 5
Man Machine Interface NMEA National Marine Electronics Association. The NMEA electronics interface specifications have been developed under the auspices of the Association. The NMEA 0183 is an internationally recognized specification for interfacing marine electronics. NMEA 0183 version 2.3 is identical to lEC 61162-1. POLLED MODE A transponder is in a polled mode during a request-response session only.
Page 6
SET AND DRIFT The direction and the speed of the water over ground (current). SIGNAL- TO-NOISE RATIO (SIN) Quantitative relationship between the useful and non-useful part of the received satellite signal. A high SIN indicates a good receiving condition. S/N See SIGNAL- TO-NOISE RATIO SOFTWARE Values programmed and preloaded into memory.
Page 7
Amendment Record AMENDMENT INCORP. DATE PAGE(S) VERSION REASON FOR CHANGE 02.07.2004 24 (All) 27.10.2004 28.02.2005 Added design notes, removed 08.03.2005 Removed SW & HW versions 06.11.2006 Kontroll med manualer.doc 11.04.2007 Total: 38 New company name New logo 04.01.2008 5-12 Talker identifier 81983_TM_TR2600_I...
Page 8
1. Do not place liquid-filled containers on top of the equipment. 2. Immediately turn off the power if water or other liquid leaks into the equipment. Continued use of the equipment can cause fire or electrical shock. Contact a Jotron AS agent for service.

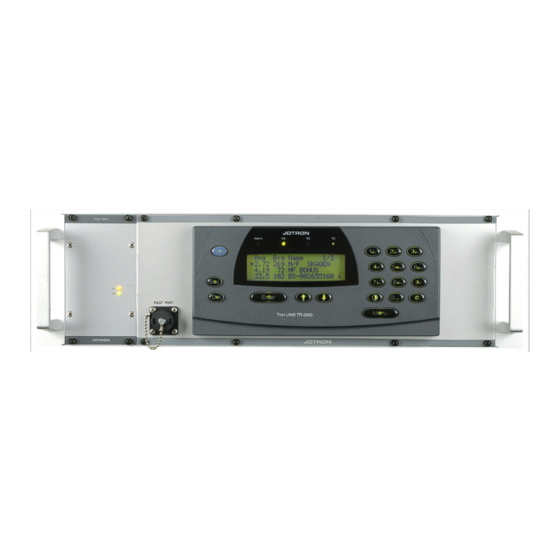

DESIGN NOTES The Tron AIS TR-2600, an AIS Base Station, is the most basic AIS-related entity of any AIS Shore Infrastructure. The AIS Base Station is defined by IMO. It cannot operate on its own, because it needs commands from an external unit, i.e. a Base Station Controller (BSC), which may be connected to a Management System.
• Each time a new rate is determined, the last start slot is used to allocate the other slots in the frame. Old reserved slots are marked free. • Each time a CAB message is received enabling or disabling one of the channels, the current start slot will be used to calculate the other slots according to schedule.
• BSC IP address and destination port for UDP connection 1.2.9.2 Configurable start of msg 4 In the Jotron AIS BS there are three options at a system re-start for how to handle msg.4. Normally the msg. 4 is defined in the CBM message, with a start slot.
1.2.9.3 Configurable LAN interface The Jotron AIS BS provides PI over either TCP or UDP connection to unit. UDP, destination can either be another unicast or a multicast address. Configuration by MMI: • Own IP Address and AIS Receiver listen port •...
Administration The operation system used for the AIS BS is embedded Linux. A small Linux system is configured specially for our unit. A subset of Linux commands are available. 1.5.1 User / groups We have defined three users in our system; root, lab and guest. These are initial users, with initial passwords.
All ports have selectable baudrate, 4800/38400. Simplified diagram of Linear Tech. LTC1535 Input Output Inside TR-2600 External cables Note 1: The cabling shall be designed in a way that stubs are avoided and kept as short as possible. 81983_TM_TR2600_I Page 4-1...
This port is used for DGPS data input (Beacon input). This port use Opto-coupler to isolate interface Input To UART (ITU-R M.823-2) GND Isolated Inside TR-2600 External cables Input current: (when A-B= +5V) Without termination strap : 4 mA With -“-...
DESCRIPTION OF SENTENCE FORMAT The following provides a summary explanation of the approved sentence structure according to IEC 61162: $AACCC, C---C*HH<CR><LF> ASCII Description "$" Start of sentence: starting delimiter aaccc Address field: alphanumeric characters identifying type of talker, and sentence formatter. The first two characters identify the talker.
Input Addressed Binary and safety related Message AIS Regional Channel Assignment Message Acknowledge Alarm Preparation and initiation of a broadcast of Addressed msg 22 AIS Interrogation Request Preparation and initiation of a broadcast of Assigned msg 16 Base Station Configuration Control AIS Base Station Configure Base Station Message Reporting Rates Data Link Management slot allocations for base station and mobiles...
5.1.2 ACA - AIS Regional Channel Assignment Message This sentence is used to both enter and obtain channel management information. $--ACA,x,llll.ll,a,yyyyy.yy,a,llll.ll,a,yyyyy.yy,a,x,xxxx,x,xxxx,x,x,x,a,x,hhmmss.ss*hh<CR><LF> Time of “in-use” change In-Use Flag Information source Power level control Tx/Rx mode control Channel B bandwidth Channel B Channel A bandwidth Channel A Transition Zone Size...
5.1.4 ACM - Addressed Channel Management Support for ITU-R M.1371 message 22. Provides an AIS base station with information it uses to broadcast an “adressed VDL message 22”. $--ACM,xxxxxxxxx,xxxxxxxxx,xxxx,x,xxxx,x,x,x,x*hh<CR><LF> Broadcast Channel for Base Station Power level control TX/RX mode control Channel B bandwidth Channel B Channel A bandwidth...
5.1.6 ASN - Assignment VDL Message 16 Support for ITU-R M.1371 message 16. Provides an AIS base station with information it uses to broadcast an “assignment VDL message 22”. $--ASN,xxxxxxxxx,x.x,x.x,x,xxxxxxxx,x.x,x.x,x,x*hh<CR><LF> Broadcast Channel for Base Station Increment for AIS unit 2 Hard Assigned Reporting Rate for AIS unit 2 Soft Assigned Reporting Rate for AIS unit 2 MMI of addressed AIS unit 2...
5.1.7 BBM - Broadcast Binary Message This sentence supports generation of an ITU-R M.1371 Binary Broadcast Message (message 8) or Safety Related Broadcast Message (message 14). It provides an external application with a means to broadcast data, as defined by the application only - not the AIS. !--BBM,x,x,x,x,x.x,s--s,x*hh<CR><LF>...
5.1.9 CAB - Control AIS Base Station Turn on or off transmission on channel A and B in AIS base station. $--CAB,x,x,x*hh<CR><LF> Restart (1= restart) Channel B transmission (1=on, 0=off) Channel A transmission (1=on, 0=off) 5.1.10 CBM Configure Base Station Message Reporting Rates This sentence configures the broadcast schedule of ITU-R M.1371 messages 4, 17, 20 and 22 that are to be broadcast from an AIS Base Station.
5.1.11 DLM Data Link Management slot allocations for base station and mobiles This sentence provides the base station with the slot allocations to be reserved for FATDMA base station broadcasts. This sentence provides the base station with the information necessary to broadcast an ITU-R M.1371 Message 20 Data link management message, which informs mobile AIS units about the reserved FATDMA slots.
5.1.13 GBS - GNSS satellite fault detection This message is used to support receiver autonomous integrity monitoring (RAIM). Given that a GNSS receiver is tracking enough satellites to perform integrity checks of the positioning quality of the position solution, a message is needed to report the output of this process to other systems to advise the system user.
5.1.15 GLL - Geographic position - latitude/longitude Latitude and longitude of vessel position, time of position fix and status. $--GLL, llll.ll, a, yyyyy.yy, a, hhmmss.ss, A, a *hh<CR><LF> Mode indicator Status: A = data valid V = data invalid Time of position (UTC) Longitude , E/W Latitude, N/S Note:...
5.1.17 RMC Recommended minimum specific GNSS data Time, date, position, course and speed data provided by a GNSS navigation receiver. This sentence is transmitted at intervals not exceeding 2 s. All data fields must be provided, null fields used only when data is temporarily unavailable.
Output All sentences starts with a delimiter that can be “$” or “!”. followed by the talker identifier indicated by “- -“. The talker identifier is BS for Base station. Addressed and binary broadcast acnowledgement VHF Data – link Own-vessel message VHF Data –...
5.2.3 TXT - Text transmission For the transmission of short text messages. Longer text messages may be transmitted by using multiple sentences. $--TXT,xx,xx,xx,c--c*hh<CR><LF> Text message, ASCII, up to 61 characters Text identifier, 01-99 Message number, 01 to 99 Total number of messages, 01 to 99 5.2.4 VDM See “Input “section (4.1.18) This sentence is used to transfer the entire contents of a received AIS message packet, as...
5.3 Proprietary sentences All proprietary sentence shall start with $P<mnemonic> Jotrons mnemonic code is “JTR”. This makes our proprietary sentence like: $PJTR[,Msg id][,data] "*”<checksum field><CR><LF> Checksum is required in proprietary sentence. 5.3.1 Proprietary sentence overview Msg id Error message (see 1.3) $PJTR,00,error code,msg.id,key,text*hh<CR><LF>...
“L” is own LAN IP port and address, “B” is remote BSC IP port and address Network address: x.x.x.x Listen PORT number 5.3.5 PJTR,40 - Request Version Request hardware and software versions from the different modules in TR-2600. Answer in “PJTR,41” $PJTR,40,c,x.x*hh<CR><LF> Function Note 1: Idx Identifier of version element.
5.3.7 PJTR,210 - Request system configuration parameters Request system parameters from TR-2600. $PJTR,210,c*hh<CR><LF> Which data to request Note: value = L: LAN connection request. value = A: Request msg4 handling after restart. 5.3.8 PJTR,211 - LAN connection modus Configure type of LAN connections for the Presentation Interface. System must be restarted after configuration.
