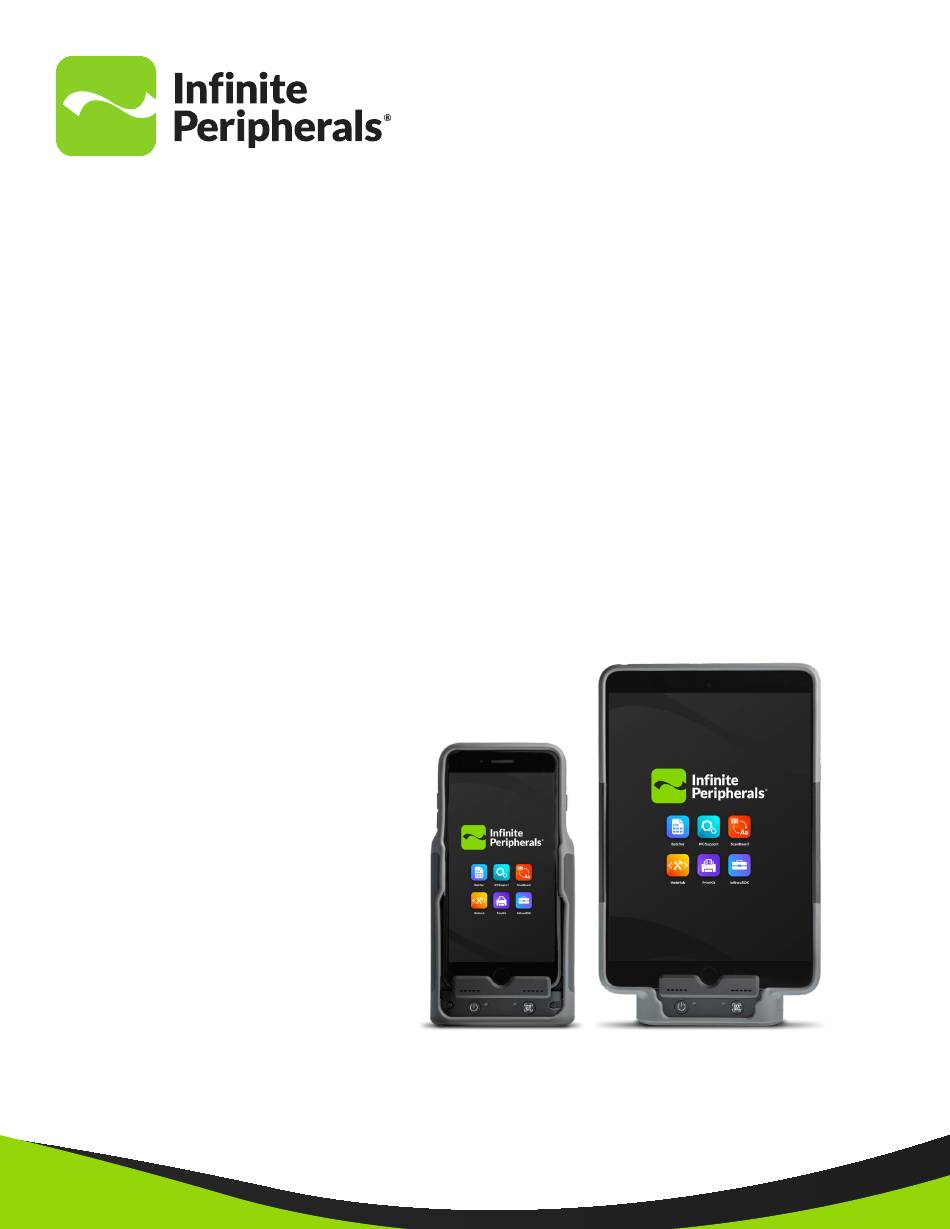

- Page 1 USER MANUAL Infinea Tab ® For iPhone 6s Plus /7 Plus /8 Plus ® & iPad mini 1-4 /Air /Air 2 /Pro 9.7 /5th/6th Generation ®...
- Page 2 7 Plus iPad Pro 9.7 iPhone 8 Plus 5th/6th Generation Trademarks Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab, and Infinea Omni are trademarks of Infinite Peripherals, Inc. All other trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
USER MANUAL — INFINEA TAB C Table of Contents Overview Scan Barcodes Technical Specifications Magnetic Stripe Reader (MSR) Box Contents Near-Field Communication (NFC) Reader Getting Started SRED Encrypted MSR Information Product Description Troubleshooting 13-14 Programmable Options Servicing the Infinea Tab C... -
Page 4: Overview
Overview The Infinea Tab C (ITC) allows mobile employees to convert their iOS devices into powerful solutions for retail, warehousing, supply chain, ticketing, and hospitality industries. Includes a 3-track magnetic stripe reader (encrypted or unencrypted), optional 2D barcode scanner, optional Bluetooth, and/or optional contactless payments. - Page 5 USER MANUAL — INFINEA TAB C Connectivity Battery Capacity Near-Field Communication (NFC) Rechargeable Li-ion Battery 3.6V/2330mAh AMEX ExpressPay MagStripe and EMV Fuel Gauge micro-controller for precise battery management Discover ZIP and D-PAS Master Card PayPass MagStripe and M/Chip Power Supply...
-
Page 6: Box Contents
USER MANUAL — INFINEA TAB C Box Contents • Before using your Infinea Tab C, remove the unit and any included accessories from the shipping cartoon and verify the contents against the packing list. • Retain all packing materials, invoice, and bill of lading. These may be required to return the device for servicing later, or to process a claim with the shipping carrier. -
Page 7: Product Description
USER MANUAL — INFINEA TAB C Product Description NFC Reader Magnetic Stripe Reader Smartcard Slot Barcode Engine Scan button LEDs Lightning connector Power button Charging pad micro USB port Charging pad... -
Page 8: Programmable Options
Charging current may be set to 500mA (default) or 1000mA. Set Charging The unit can charge the iOS device using its internal battery by enabling the “setCharging” setting. When the Infinea Tab C battery is below 20%, it begins charging the iOS device battery. -
Page 9: Developing Infinea Tab C Applications
Developing Infinea Tab C Applications Software is not provided with your Infinea Tab C. Please contact your reseller or Infinite Peripherals for Third Party software solutions. Integrating the Infinea Tab Ci into your iOS application requires the use of the Infinite Peripherals Universal Software Developers Kit (SDK). -
Page 10: Turn On The Infinea Tab C
Turn On the Infinea Tab C Once the Infinea Tab C is fully charged, turn on the unit by pressing the Power button on the bottom left side of the unit. The LED flashing blue indicates is active. If you do not see either LED illuminated, the unit is turned off or not charging from an outside power supply. -
Page 11: Scan Barcodes
USER MANUAL — INFINEA TAB C Scan Barcodes You can scan one dimensional (1D) and optional two-dimensional (2D) barcodes with the Infinea Tab C. The effective reading distance of the barcode reader varies based on the size of the barcode. -
Page 12: Magnetic Stripe Reader (Msr)
SRED Encrypted MSR Information Integrating the PTS 4X SRED certified Infinea Tab C into your solution requires proper maintenance of the unit. This includes maintaining proper battery charge to prevent the unit from unintentionally entering tamper detect mode. When the battery becomes depleted or if it is removed, the magnetic read head becomes disabled and renders the unit unusable. -
Page 13: Troubleshooting
USER MANUAL — INFINEA TAB C Troubleshooting General Issues Issue Possible Cause Unit does not connect to • Battery is too low or fully discharged. iOS device • Unit is not powered on. • Unit is not properly connected to the iOS device in the iOS device Settings menu. - Page 14 USER MANUAL — INFINEA TAB C Magnetic Card Reader Issue Possible Cause Card data is not returned • Unit is not turned on. during swiping • Swipe method is incorrect. • Magnetic stripe is unreadable. • Secured read head requires decryption of data.
-
Page 15: Servicing The Infinea Tab C
Servicing the Infinea Tab C The Infinea Tab C is designed with a 2400mAh battery, which can be replaced only by Infinite Peripherals. If the battery is not charging properly, or the unit is not powering on, please contact your Infinite Peripherals account representative. -
Page 16: Symbols
USER MANUAL — INFINEA TAB C Symbols Symbol Description Refer to the instructions before using this product Manufacturer Manufacture Date Caution Serial Number Part Number Waste Electrical and Electric Equipment Complies with part 15 of the FCC rules...
