QUICK START GUIDE

Infinea® Tab C
For iPhone® 6+/6s+/7+/8+, iPad mini® 4,
iPad™ 5th/6th generation

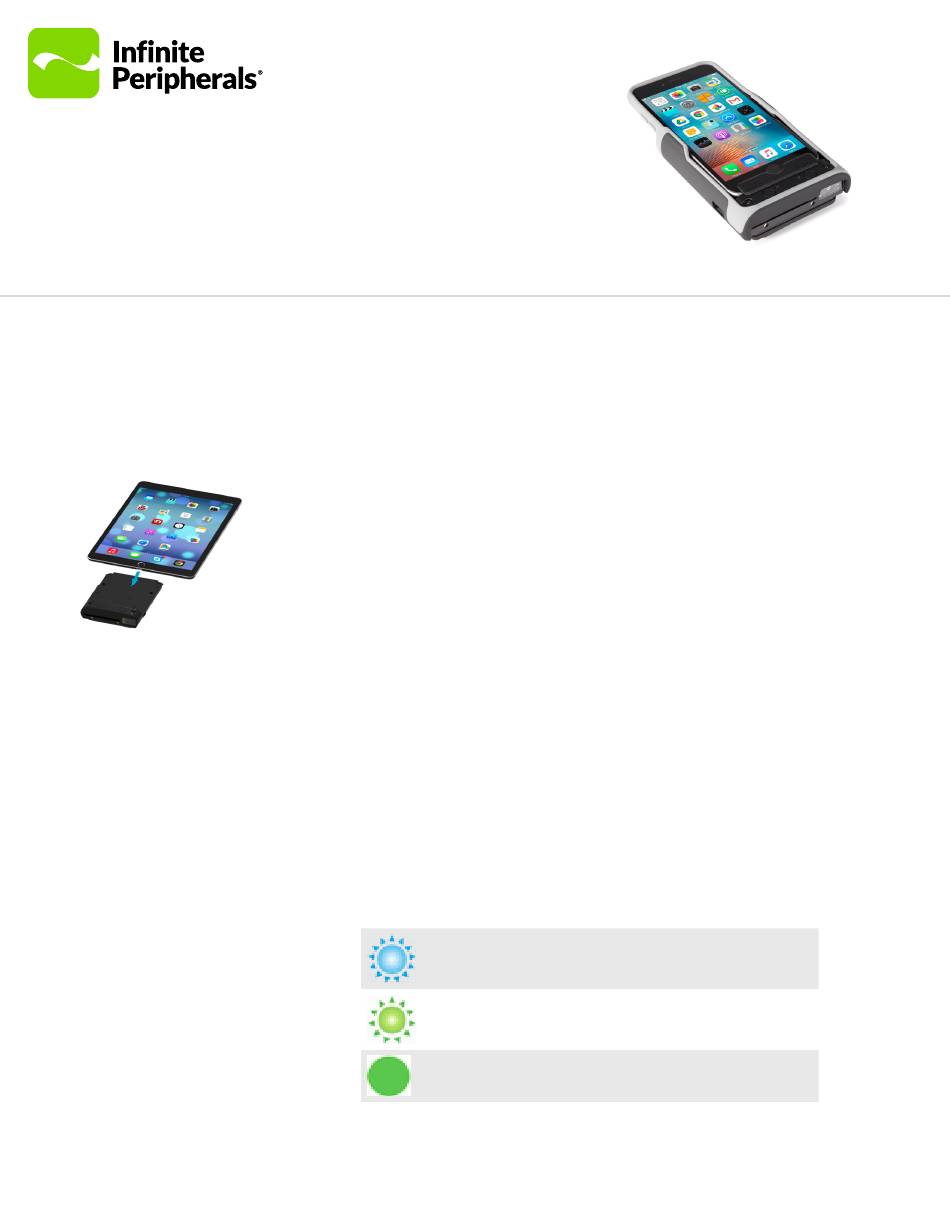

Connect to Your iOS
device
1. Position both your iOS device and the
Infinea Tab C upward, and then align the
home button with the half circle slot.
2. Gently side the unit into position, ensuring
the iOS device is firmly seated onto the
Lightning™ connector.
Charge the Infinea Tab C
Before first use, ensure the battery is fully
charged with a Lithium-ion rechargeable battery.
If the battery is completely depleted, the charging
time is approximately 6 hours.
Use only approved/recommended 5 volt, 2.1 amp
DC adapters to charge the device and Infinea
Tab C together. Failure to do so may result in
problems charging the unit and/or potential
damage to the Infinea Tab C and/or iOS device.
Refer to the Infinea Tab C user manual for
technical specification and other details.
• Connect the micro USB charging cable into
the USB port on the side of the unit.
Note:
• Do not force the plug into the connector
when connecting the micro USB charging
cable as it may damage the connector.
Barcode Scanner—1D or 2D barcodes
1. To activate the scanner, press and hold down the Scan button.
2. Position the scanning engine near the center of the barcode by aiming the
illumination box over the outer edges. The pointer should extend outside the
edges of the barcode.
3. Slowly pull the unit either backwards or forwards, while decreasing or
increasing the distance between the barcode and scanning engine until the
scanner reads the barcode. Once complete, barcode data displays on the iOS
device.

Magnetic Stripe Reader

1. Face the read head up towards the top of the bottom cover of the cradle.
2. While sliding a card through the reader, the magnetic stripe must face
downwards.
3. Keep the edges of the card flat on the inner base of the reader to ensure the
strip passes over the read head evenly.
Contactless Card Reader
Depending on your model, the contactless card reader uses several RFID formats. The
built-in RFID or contactless card reader receiver/transmitter is located on the back
below the LEDs, and is denoted by the WiFi symbol.
1. Press the contactless card reading option on your iOS device.
2. Place the RFID tag/card over the RFID label on the transmitter/receiver, keeping
the face of the tag/card flat and as close as possible to the receiver. The data is
read and then sent to the Infinea Tab C to the iOS device.
Status Operational Indicators
The two LEDs on the top of the Infinea Tab C indicate conditions of operation,
including active connection and charging.
• Press the Power button and unlock your iOS device
LED Statuses
Flashing blue indicates active connection with the iOS device.
Flashing green means the battery is charging from the USB Type-C port
connection or charging pads.
Solid green (no flash) indicates the battery is fully charged and may be
disconnected from the outside power supply.
No illumination from either LED points out the unit is turned off or not
Note
charging from an outside power supply.
