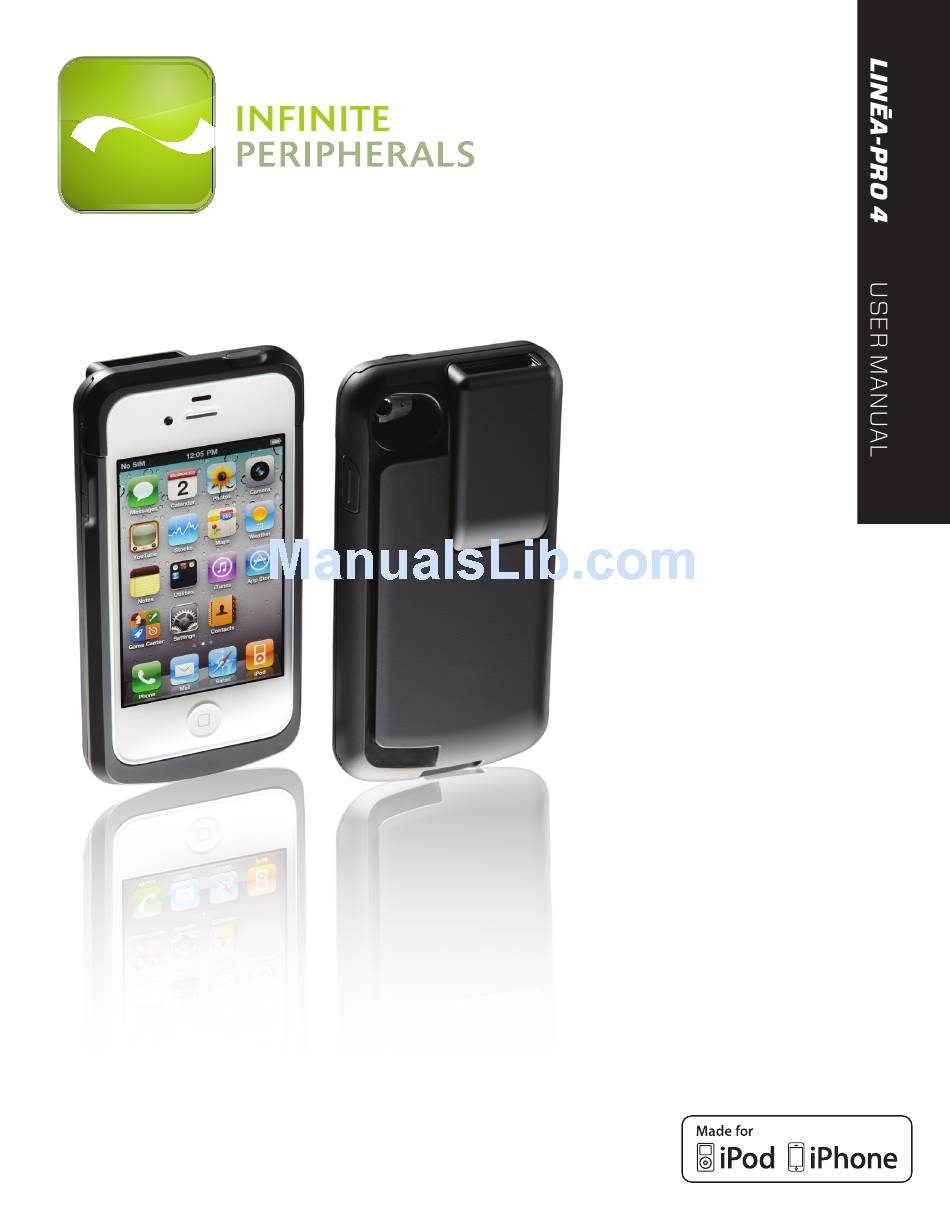

- Page 1 LINĒA-PRO 4 iPhone®/iPod Touch® 1D/2D SCANNER...
-
Page 2: Contact Information
CONTACT INFORMATION National Sales Headquarters: Infinite Peripherals, Inc. 1124 Main Street Suite B Irvine, CA 92614 Toll Free: (866) 278-7860 Office: (949) 222-0300 Fax: (949) 222-0375 HQ and Main Distribution Facility: Infinite Peripherals, Inc. 3104 N. Arlington Heights Road Arlington Heights, IL 60004... -
Page 3: Compatability
LEGAL NOTICE “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. - Page 4 LINEA-PRO 4 MODELS M odel Description Linea-pro 4 MSR Linea-pro 4 with 3-Track mag-stripe reader Linea-pro 4 with 3-Track mag-stripe reader and Linea-pro 4 MSR 1D 1D barcode scanner Linea-pro 4 with 3-Track mag-stripe reader and Linea-pro 4 MSR 2D...
-
Page 5: Table Of Contents
Software: D rivers & S DK Getting Started Quick S tart G uide About Your Linea-pro 4 Battery Charging Status and Operational Modes Attach Linea-pro 4 ... -
Page 6: Overview
OVERVIEW Linēa-pro 4 allows mobile workers to convert their iPod touch and iPhone handset into a powerful point-of-sale solution. The Linēa-pro 4 includes optional 1D or 2D barcode scanner, 3-tracks magnetic stripe reader, and a rechargeable battery extender in a very compact and durable protective case. FEATURES Battery: Rechargeable Li-ion Battery - 1300 mAh,... -
Page 7: Technical Data
TECHNICAL DATA GENERAL SPECIFICATIONS Power Supply Internal Voltage 3.3V and 5V Active (turn on Linea-pro 4) / Active with Scanning / Stand By Operation Modes (after 5sec without operate) Hitachi - HD64F3687 Memory 512k I2C EEPROM memory - for Linea-pro 4 settings RS232 Interface - communication between Linea-pro 4 &... -
Page 8: Box Contents
BOX CONTENTS Your Linēa-pro 4 will ship with the items listed below. Descriptions Im age Linēa-pro 4 USB sync cable *Bulk shipments may ship without cables in each box SOFTWARE: DRIVERS & SDK Because of the continually evolving SDK, the latest SDK are not distributed on For the latest Linēa-pro 4 SDK’s, please visit our Linēa-pro developer portal: http://dev.ipcprint.com / 6 ... -
Page 9: Getting Started
Charging Battery, Page 10. recommended. to ensure long battery life. Software is not provided with Linēa-pro 4. Please contact your Barcode Scanning reseller or Infinite Peripherals for suggestions on Third-Party & Card Reading Install Software. software solutions. requires software to be installed onto Developers should refer to the your iPod or iPhone. -
Page 10: About Your Linea-Pro 4
ABOUT YOUR LINEA-PRO 4 Linēa-pro 4 - Right Side On/Off Volume Controls Scan Engine Linēa-pro 4 - Left Side USB Sync / Charge Port Audio Connector Scan Button 8 USER MANUAL ... - Page 11 Special software must be used to process the information captured by the barcode scanner and magnetic strip reading feature. Please consult your reseller for this software or contact Infinite Peripherals for recommendations on compatible third party software solutions. 9 ...
-
Page 12: Battery Charging
BATTERY CHARGING Charging the Linēa-pro 4 The Linēa-pro 4 uses a Lithium Ion rechargeable battery. Before first use, the battery pack should be charged for at least (4) hours. To prevent electrical damage to the Linēa-pro 4 and/or battery, please use approved USB to Mini USB cables only. -
Page 13: Status And Operational Modes
STATUS AND OPERATIONAL MODES The Linēa-pro 4 uses the battery indicator LEDs to indicate various conditions of operation. Possible LED lighting indications may result from charging, active/online status, or because of low battery. The following table and figure explain these conditions and LED indication. Battery Status Button ... -
Page 14: Attach Linea-Pro 4
ATTACH LINEA-PRO 4 When using the Linēa-pro 4, care must be taken to ensure the Linēa-pro 4 30 pin connector and the iPod and iPhone connector are not accidentally damaged. The figures below show how to attach your device to the Linēa-pro 1: Unlock the top cover as shown in figure above. -
Page 15: Features
FEATURES 1D BARCODE SCANNING Using the 1D Barcode Scanner The Linēa-pro 4 1D uses a scan engine that supports one-dimensional (1D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. Scanning 1D Barcodes To scan a 1D barcode fist activate the scanner. -
Page 16: 2D Barcode Scanning
FEATURES 2D BARCODE SCANNING Using the 2D Barcode Scanner The Linēa-pro 4 2D uses a scan engine that supports one-dimensional (1D) and two-dimensional (2D) barcode symbols. The effective reading distance of the barcode reader varies depending on the barcode size. Scanning 2D Barcodes To scan a 2D barcode fist activate the scanner. -
Page 17: Magnetic Card Reader
To use the magnetic card reader feature, special software must be used to read and process the card information. Please consult your reseller if this software is available or contact Infinite Peripherals for recommendations on compatible third party software solutions. ... -
Page 18: Replace Battery
REPLACE BATTERY To replace the Linēa-pro 4 battery, follow the steps below. 1. Remove the device as shown in the figure below. 2. Squeeze battery cover latch to the left as shown in the figure above. 3. Lift the battery cover as shown in the figure above. Remove the existing battery. -
Page 19: Syncing
SYNCING The Linēa-pro 4 portable barcode scanner and card reader is designed specifically for use with iPod/iPhone there by allowing the iPod and iPhone to sync with iTunes through the Linēa-pro 4 while connected. To sync iPod with iTunes through the Linēa-pro 4 follow the steps below; 1. -
Page 20: Developing Applications
DEVELOPING APPLICATIONS Integrating the Linēa-pro 4 into your app requires the use of the Linēa-pro 4 SDK. The SDK incorporates an API specifically for developing applications to use the barcode scanning and card reading capability of the Linēa-pro 4. For details on using the Linēa-pro 4 SDK, please refer to the SDK’s documentation. -
Page 21: Troubleshooting
TROUBLESHOOTING CARD READING If you are having a problem reading the magnetic strip refer to the table below for possible causes. Problem Possible Cause * Linēa-pro 4 not turned On. * Card inserted incorrectly. No card data returned during * Swipe method incorrect. -
Page 22: Barcode Scanning
TROUBLESHOOTING BARCODE SCANNING If you are having problems scanning barcodes refer to the table below for possible causes. Item Problem Possible Cause * Linēa-pro 4 battery is to low. Scanner does not turn * Linēa-pro 4 not turned on by software. * Faulty scan engine. -
Page 23: Federal Communications Commission
FEDERAL COMMUNICATIONS COMMISSION Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
