5.
Then, swing product into position to engage the pins on the product with
the terminals on the mounting plate. Make sure that the tabs on the back
of the product housing fully engage with the mounting plate.
6.
Secure product by tightening the single mounting screw in the front
of the product housing. For tamper resistance, the standard captivated
mounting screw may be replaced with the enclosed Torx screw.

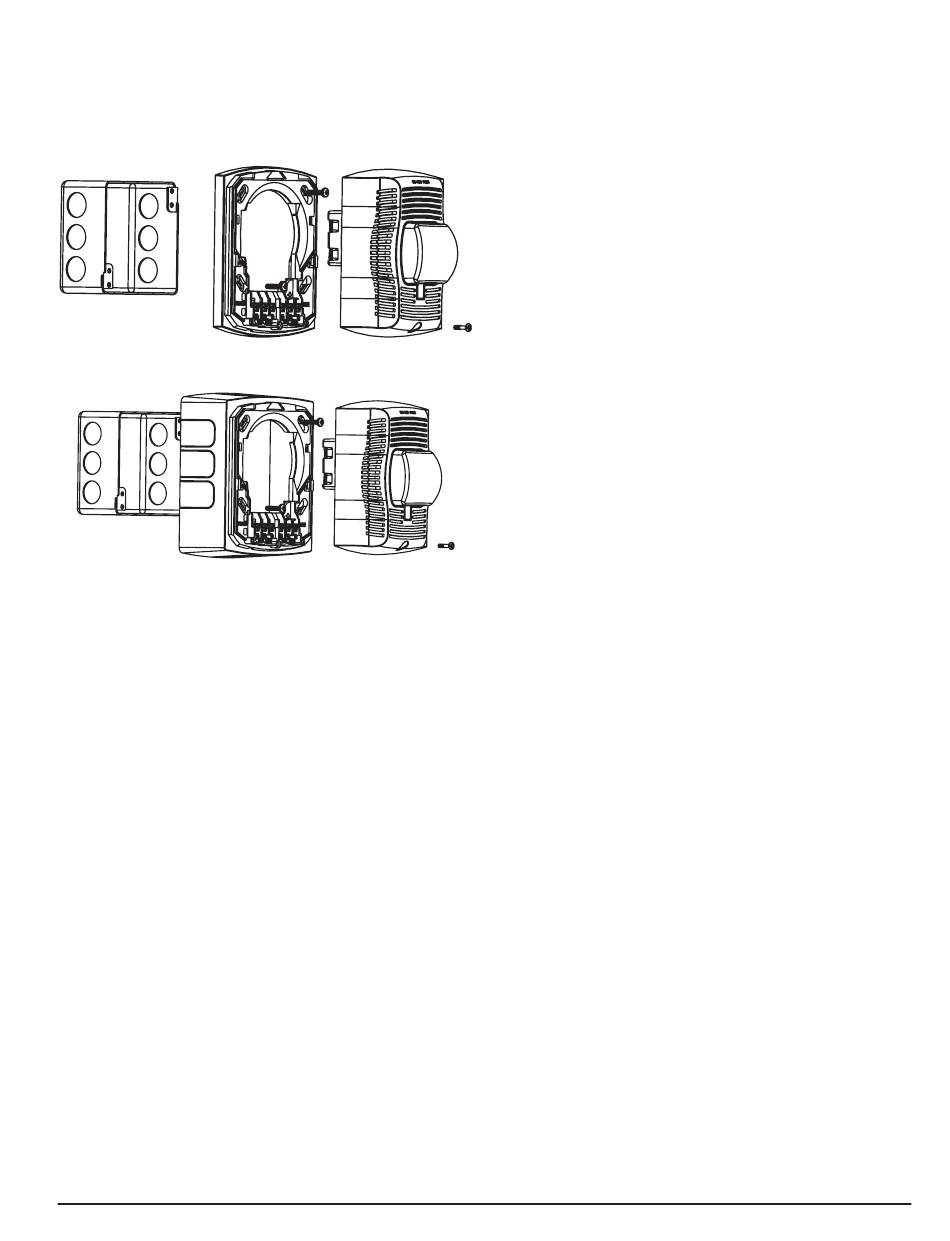

FIGURE 4: WALL MOUNT PRODUCT WITH TRIM RING:
FIGURE 5: WALL MOUNT PRODUCT WITH BACK BOX SKIRT:
NOTE: Device may be mounted to wall or ceiling.
A0389-00
A0392-00
3
I56-3935-004R
06-10
