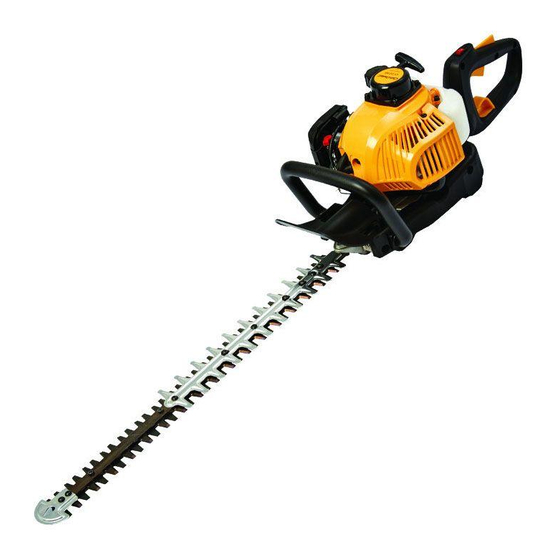

Hedge Trimmer CC924HT
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
FORM NO. 769-13611 00
DATE：01/25/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC924HT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cub Cadet CC924HT

Summary of Contents for Cub Cadet CC924HT

  • Page 1 Operation Practices Set-Up Operation Maintenance Service Troubleshooting PERATOR’S ANUAL Hedge Trimmer CC924HT WARNING READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

  • Page 2: Table Of Contents

    Thank You Please be aware that this Operator’s Manual may cover Thank you for purchasing a Hedge Trimmer manufactured a range of product specifications for various models. by MTD Asia. It was carefully engineered to provide Characteristics and features discussed and/or illustrated excellent performance when properly operated and in this manual may not be applicable to all models.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS WARNING THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES. Read the instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the hedge trimmer. become familiar with all controls and the proper use of the hedge trimmer. Clothing and Equipment Always wear proper eye glasses to prevent eyes from the risk of thrown objects.
  • Page 4 Before operation Before operating the hedge trimmer, always ensure that the operating position is safe and secure. Do not operate the hedge trimmer with a damaged or excessively worn blade. Always ensure that all handles and guards are fitted when using the hedge trimmer. Never attempt to use an incomplete hedge trimmer or one fitted with an unauthorized modication.

  • Page 5: Warning Labels And Symbols

    WARNING LABELS AND SYMBOLS Read warning labels on the unit and understand them. If any label is missing, damaged, or worn get a replacement from your dealer and install it in the correct position. CHOKE SETTINGS SAFETY AND WARNING SYMBOL 1.CHOKE CLOSE starting position Indicates danger,warning or a reason 2.CHOKE OPEN running position...

  • Page 6: Get To Know Your Hedge Trimmer

    GET TO KNOW YOUR HEDGE TRIMMER DOUBLE BLADE HEDGE TRIMMER ⑥ ② ③ ① ⑧ ④ ⑦ ⑤ ⑩ ⑨ 1.Throttle Lockout 9.Gear Case 2.Ignition Switch 10.Air Filter Cover 3.Throttle Trigger 11.Blade 4.Handle Lock Button 12.Spark Plug Cap 5.Rear Handle 13.Front Handle 6.Recoil Starter Grip 14.Front Guard...

  • Page 7: Fuel And Oil Instructions

    FUEL AND OIL INSTRUCTIONS WARNING 1. Only use high quality special oil for air cooled 2-stroke engine,JASO FC or FD, or ISO-L-EGC or EGD oil. Never use water cooled engine oil or any oil for 4-stroke engine. Fuel 1. Always use fresh, clean lead-free fuel. Minimum octane number: 90#. Mixing Ratio 1.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS STARTING starter handle in right hand. Gently pull the starter rope out until you feel that the pawls hook onto the flywheel, and then pull the starter quickly. WARNING Run Position Idle screw Choke Lever Before starting the engine, keep the cutting attachment clear of everything around it.
  • Page 9 handle is securely locked in position.Hedge 3.The engine should be run at idle speed for a Trimmer must be stopped before adjusting few minutes to allow sufficient warm-up time the swivel handle. to prevent engine damage before applying a OPERATING load.

  • Page 10: Maintenace And Repair

    MAINTENANCE AND REPAIR CARBURETOR 1. Idling speed can be adjusted by idle screw. 2. Adjusting the idle-speed screw clockwise Fuel Filter will increase the idling speed and adjusting it counterclockwise will decrease the idling speed. You should use a tachometer to measure the speed while adjusting.
  • Page 11 9. If spark plug is damaged or the unit still cannot work well after cleaning, replace with a Washing new one. 10. To ensure the machine work well Please use Drying the specified plug. Engine Oil Squeezing 0.6-0.7MM WARNING MUFFLER Improper element cleaning can result in Spark Arrester Service engine damage.Do not use compressed air...
  • Page 12 ANTI-VIBRATION SYSTEM WARNING The damaged anti-vibration system may cause the vibration or breakage of any parts. Oil inlet 1. Check periodically if the springs are deformed or out of place. 2. Please use an authorized service dealer to BlADES repair any damages. 1.

  • Page 13: Cleaning And Storage

    CLEANING AND STORAGE CLEANING 1.Brush off dust and grass cuttings from the unit and wipe up water and oil stain with dry cloth. STORAGE 1. Keep the unit away from flames or sparks when it contains fuel. 2. Allow the unit to cool before storage. 3.

  • Page 14: Trouble-Shooting

    TROUBLE-SHOOTING Problem Cause Remedy 1. Reconnect wire. 1. Spark plug wire disconnected. 2. Set switch to ON. 2. Ignition switch set to OFF. 3. Add fuel. 3. Fuel tank empty. 4. Empty the tank and fill with fresh fuel 4. Stale or improperly mixed fuel mixture.

  • Page 15: Specification

    SPECIFICATION Model CC924HT Engine Mitsubishi Air Cooled 2-Stroke Engine Carburetor Diaphragm Clutch Type Centrifugal Starter Recoil Displacement 22.5cc Max Power 0.7KW Mixing Ratio(Gasoline/OIl): 50:1 Idle Speed 2700-3300 rpm Speed at Max,Torque: 6000 rpm Speed at Max,Power: 7000 rpm Gear Box Reduction Ratio: 4.5 Fuel Tank Capacity: 0.5L...
  • Page 16 NOTE...
