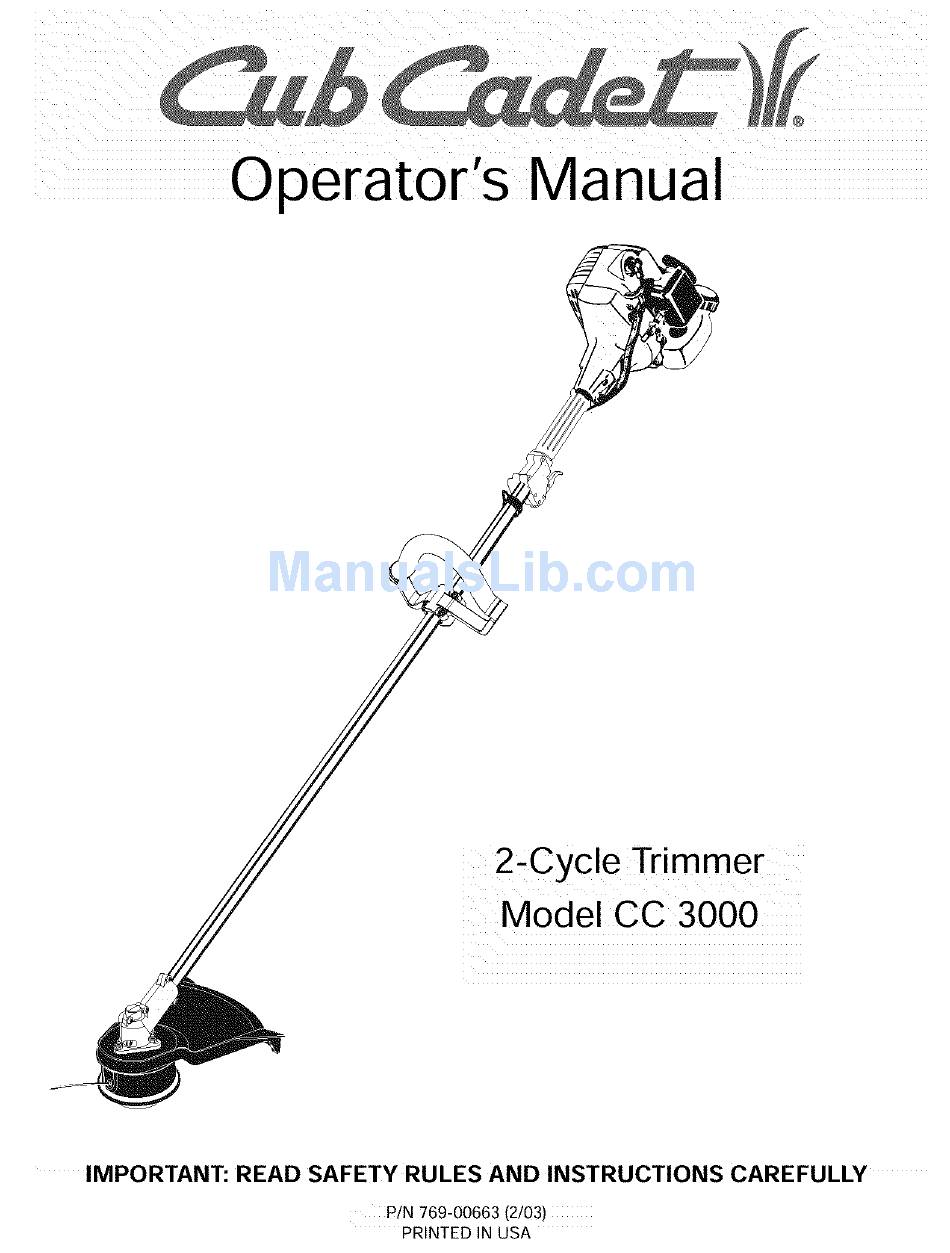

Operator's Manual
Model
CC 3000
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY
P/N 769-00663 (2/03)
PRINTED IN USA

Advertisement

Table of Contents
loading

Summary of Contents for Cub Cadet CC 3000

  • Page 1 Operator's Manual Model CC 3000 IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY P/N 769-00663 (2/03) PRINTED IN USA...
  • Page 2 We reserve the right to make changes at any time without notice. Service on this unit both within and after the warranty period should be performed only by a Cub Cadet dealer. Proof of purchase will be required for warranty service.
  • Page 3 Section 1 Safety The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and the r explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures. SYMBOL MEANING I SAFETY ALERT SYMBOL: Indicates danger,...
  • Page 4 Safety (continued) Safety Warnings for Gas Trimmers • Use the right tool. Only use this tool for the purpose intended. ," • Do not overreach. Always keep proper footing and balance. Gasoline is highly flammable, and its vapors can explode if ignited. Take the following precautions.
  • Page 5 Safety (continued) Safety and International Symbols This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. MEANING SYMBOL MEANING SYMBOL •...
  • Page 6 Section 2 KnowYourUnit Applications With the optional brushcutter accessory kit: As a trimmer: Cutting weeds and light bush of up to 1/2 inch in diameter Cutting grass and light weeds Edging Spark Plug,_ Starter Rope Grip Decorative trimming around trees, fences, etc. Fuel Cap Shaft Grip Throttle Control...
  • Page 7 Section 3 Assembly Install and Adjust the D-handle Shaft Grip (4) Screws _ Remove the screws and bottom clamp piece that were installed on the D-handle for shipping. Shaft Housing Place D-handle the over the shaft housing and onto the bottom clamp (Fig. 3-1). Place it a minimum of 6 inches (15.24 cm) from the end of the shaft grip.
  • Page 8 Section 4 0il and Fuel For proper engine operation and maximum reliability, pay strict attention to the oil and fuel mixing instructions on the 2-cycle oil container. Using improperly mixed fuel can severely damage the engine. UNLEADED GAS 2 CYCLE OIL Thoroughly mix the proper ratio of 2-cycle engine oil 1 GALLON US 3.2 FL OZ.
  • Page 9 Section 5 Operation Starting Instructions Mix gas with oil. Fill fuel tank with fuel/oil mixture. See Oil and Fuel Mixing Instructions. Put the On/Off Stop Control in the ON (I) position (Fig. 5-1). Fully press and release the primer bulb 10 times, slowly, until FUEL IS VISIBLE IN THE PRIMER BULB (Fig.
  • Page 10 Operation(continued) Each time the head is bumped, about 1 inch (25.4 mm) of trimming line releases. A blade in the cutting attachment shield will cut the line to the proper length if any excess line is released. For best results, tap the bump knob on bare ground or hard soil.
  • Page 11 Section 6 Maintenance Maintenance Schedule NOTE: Maintenance, replacement or repair of the emission control devices and system may be Perform these required maintenance procedures at the performed by any non-road engine repair frequency stated in the table. These procedures should establishment, individual or authorized...
  • Page 12 Maintenance (continued) Winding the Existing Inner Reel Hold the outer spool with one hand and unscrew the Bump Knob clockwise (Fig. 6-1). Inspect the bolt inside the Bump Knob to make sure it moves freely. Replace the Bump Knob if damaged. Remove the inner reel from the outer spool (Fig.
  • Page 13 Maintenance (continued) 12. Insert the ends of the line into the two holding slots (Fig. 6-7). 13. Insert the ends of the line through the eyelets in the outer spool and place inner reel with spring inside the outer spool (Fig. 6-8). Push the inner reel and outer spool together.
  • Page 14 Maintenance (continued) Air Filter Maintenance Cleaning the Air Filter Carburetor/Air To avoid serious personal injury, always turn your Filter Cover trimmer off and allow it to cool before you clean or service it. Clean and re-oil the air filter every 10 hours of operation. It is an important item to maintain.
  • Page 15 Maintenance (continued) Check Fuel Mixture Old and/or improperly mixed fuel is usually the reason for improper unit performance. Drain and refill the tank with fresh, properly mixed fuel prior to making any adjustments. Refer to Oil and Fuel Information. Clean Air Filter The condition of the air filter is important to the operation of the unit.
  • Page 16 Maintenance (continued) Storage • Never store the unit with fuel in the tank where fumes may reach an open flame or spark. 0.025 inch (0.655 mm) • Allow the engine to cool before storing. • Store the unit locked up to prevent unauthorized use or damage.
  • Page 17 Section 7 Troubleshooting CAUSE ACTION On/Off stop control is in the OFF position Turn the on/off stop control to ON Empty fuel tank Fill fuel tank with properly mixed fuel Primer bulb wasn't pressed enough Press primer bulb fully and slowly 10 times Engine is flooded Squeeze the trigger and pull the starter rope Old or improperly mixed fuel...
  • Page 18 Section 8 Specifications Engine Type ............................Air-Cooled, 2-Cycle Stroke ..............................1.25 in. (31.75 mm) Displacement ............................. 1.4 cu in. (25 cc) Clutch Type ................................. Centrifugal Idle Speed RPM ............................2,400 - 3,600 rpm Operating RPM ..............................7,200+ rpm Ignition Type ................................Electronic Ignition Switch ..............................
  • Page 19 • In order to file a claim, go to your nearest Authorized Cub Cadet Service Center. Warranty services or repairs will be provided at all Authorized Cub Cadet Service Centers.
  • Page 20 ENGINE PARTS - CC3000 2-CYCLE GAS TRIMMER PPN 410DC03G100 Item Part No. Description 753-04015 Cylinder 753-04016 Cylinder Base Gasket Item Part NO. Description 791-181706 Bolt 791-181079 Pull Handle 791-181707 Insulator 791-182118 Pulley Assembly (includes 43-45) 791-181708 Insulator Gasket 791-181745 Ratchet 791-181709 Carburetor Gasket...
  • Page 21 BOOM AND TRIMMER PARTS - CC3000 2-CYCLE GAS TRIMMER PPN 41CDC03G100 Item Part NO. Description 791-180866 Grip 791-181688 Throttle Cable Assembly 791-180975 Throttle Trigger 791-610314 Throttle Trigger Spring 791-181689 Throttle Trigger Assembly (includes 3 & 4) 791-180252 Switch Assembly 791-181690 Wire Lead Assembly 791-610327 Shoulder Hamees Clamp...
  • Page 22 MANUFACTURER'S LIMITED WARRANTY FOR: No implied warranty, including any implied warranty of The limited warranty set forth below is given by Cub Cadet merchantability or fitness for a particular purpose, LLC with respect to new merchandise purchased and used applies after the applicable period of express written in the United States, its possessions and territories.
