Sartorius YDS01SQP Installation Instructions

Special draft shield for laboratory balances

Installation Instructions

YDS01SQP

Special Draft Shield for Laboratory Balances

Intended Use

The YDS01SQP draft shield can be installed on the

following weighing instruments:

– Secura, Quintix or Practum balances with a readability

of 10 mg, 0.1 g or 1 g

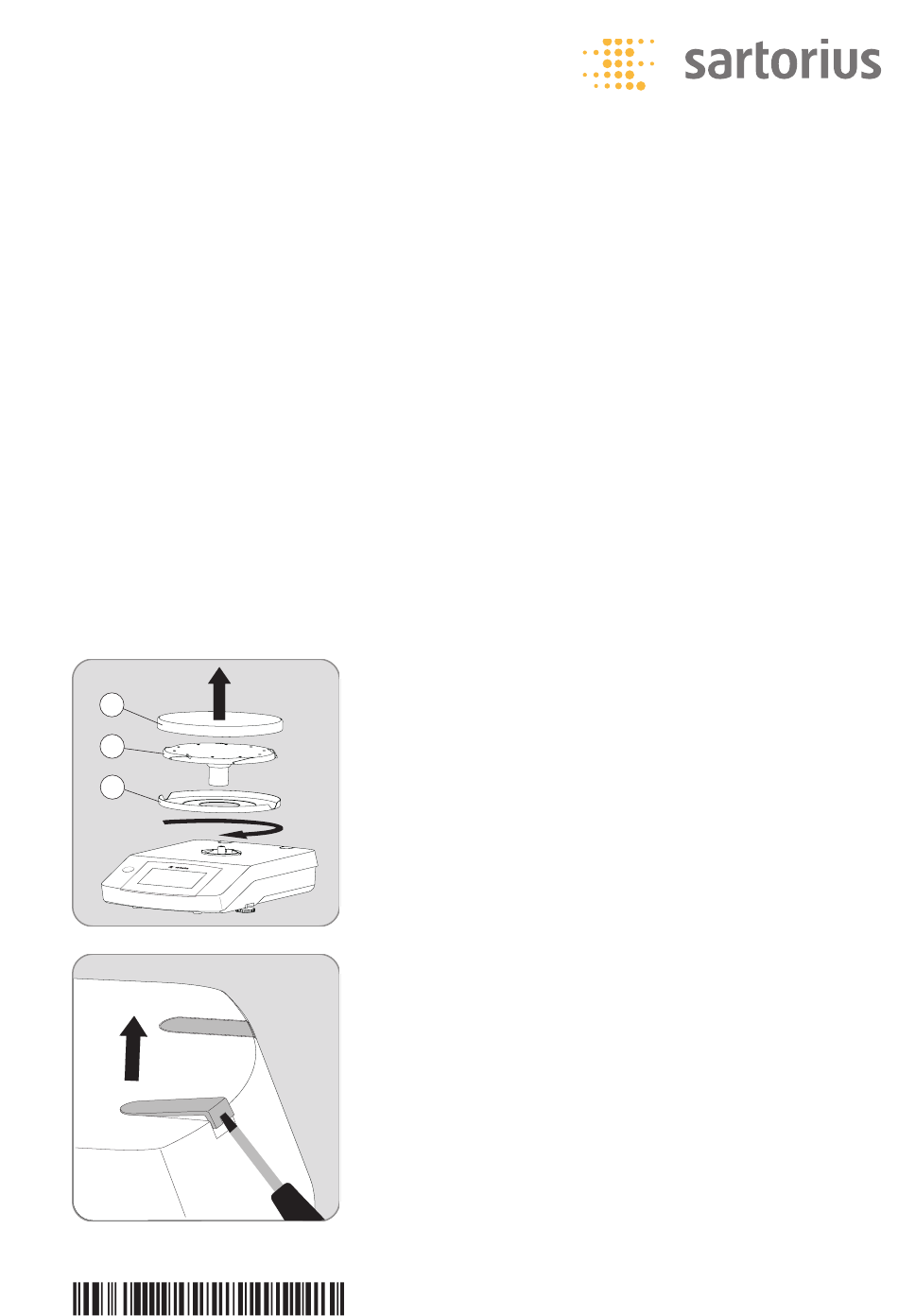

t Remove the following parts from the balance:

1) Weighing pan

2) Pan support

3) Shield disk

4) In-use dust cover (not illustrated)

t Use a screwdriver to pry out both cover caps on the rear

of the balance.

98647-004-87

Table of Contents

Do you have a question about the YDS01SQP and is the answer not in the manual?

Page 1 Installation Instructions YDS01SQP Special Draft Shield for Laboratory Balances Intended Use The YDS01SQP draft shield can be installed on the following weighing instruments: – Secura, Quintix or Practum balances with a readability of 10 mg, 0.1 g or 1 g Installation t Remove the following parts from the balance: 1) Weighing pan 2) Pan support 3) Shield disk 4) In-use dust cover (not illustrated) t Use a screwdriver to pry out both cover caps on the rear of the balance. 98647-004-87...
Page 2 – Put the shield disk (2), pan support (3), and weighing pan (4) on the balance. The weighing system is protected against overloading up to 10 kg. Inserting (or Removing) Glass Panels 1) Holding it by its rear edge, pull the draft shield cover up and remove it. 2) Push the three glass panels into the draft shield guide, all the way to the front. 3) Then replace the draft shield cover. In doing so, the draft shield cover must lock Cleaning: Remove the front and rear glass Detailed assembly instructions can be found in the User Manual for the balance in question, which can be downloaded online: see www.sartorius.com –> Lab Products & Services –> Service –> Download Center.
