Hinged Boom Frame Assembly - 3 Axis - ODB SKB700 Owner's Manual

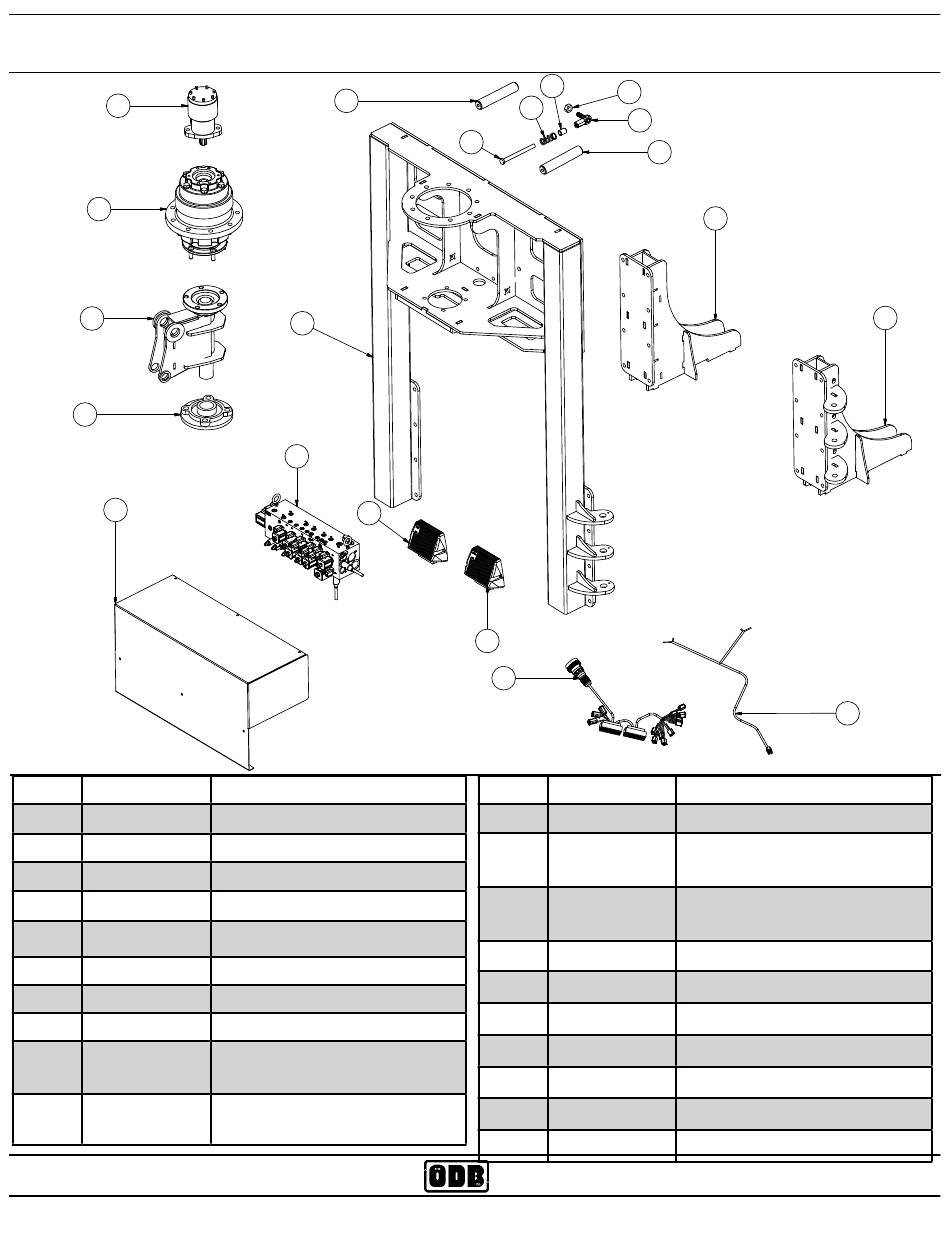

9.6 Hinged Boom Frame Assembly - 3 Axis

10
9
8
7
4
ITEM # PART #
1 800.602B
2 800.601B.R
3 800.601B.L
4 TCC.1100BC
5 TCC.2002
6 TCC.2001
7 SCL816.501
8 800.707B
9 800.704B*
10 800.701C
800.701CB
ODB COMPANY
14
1
11
6
DESCRIPTION
Upright Frame
Frame Arm, rear
Frame Arm, front
Valve Body Cover
IQAN Module I/O XS2
IQAN Module XA2
Bearing, 4 Bolt
Boom Mast Knuckle
Auburn Gear Drive
*see breakdown on next page
Hydraulic Motor
Motor Bolts
18
20
17
19
16
5
12
ITEM # PART #
11 TCC.3000
12 TCC.3003
TCC.2005
13 TCC.2015
14 SCL816.503L Boom Stop LH
15 SCL816.503R Boom Stop RH
16 550.1808B
17 800.1808
18 550.1808C
19 6072K44
20 ZESNC.50
800-446-9823
15
2
DESCRIPTION
Valve Body Assembly
Wiring Harness, Modules
Model Harness Pin Kit
Wiring Harness, Merc. Switch
and Tailgate Switches
Bolt 1/2-20x6
Spring
Spacer 1 1/4"
Ball Joint
Nut 1/2-20
SKB700
3
13
135
