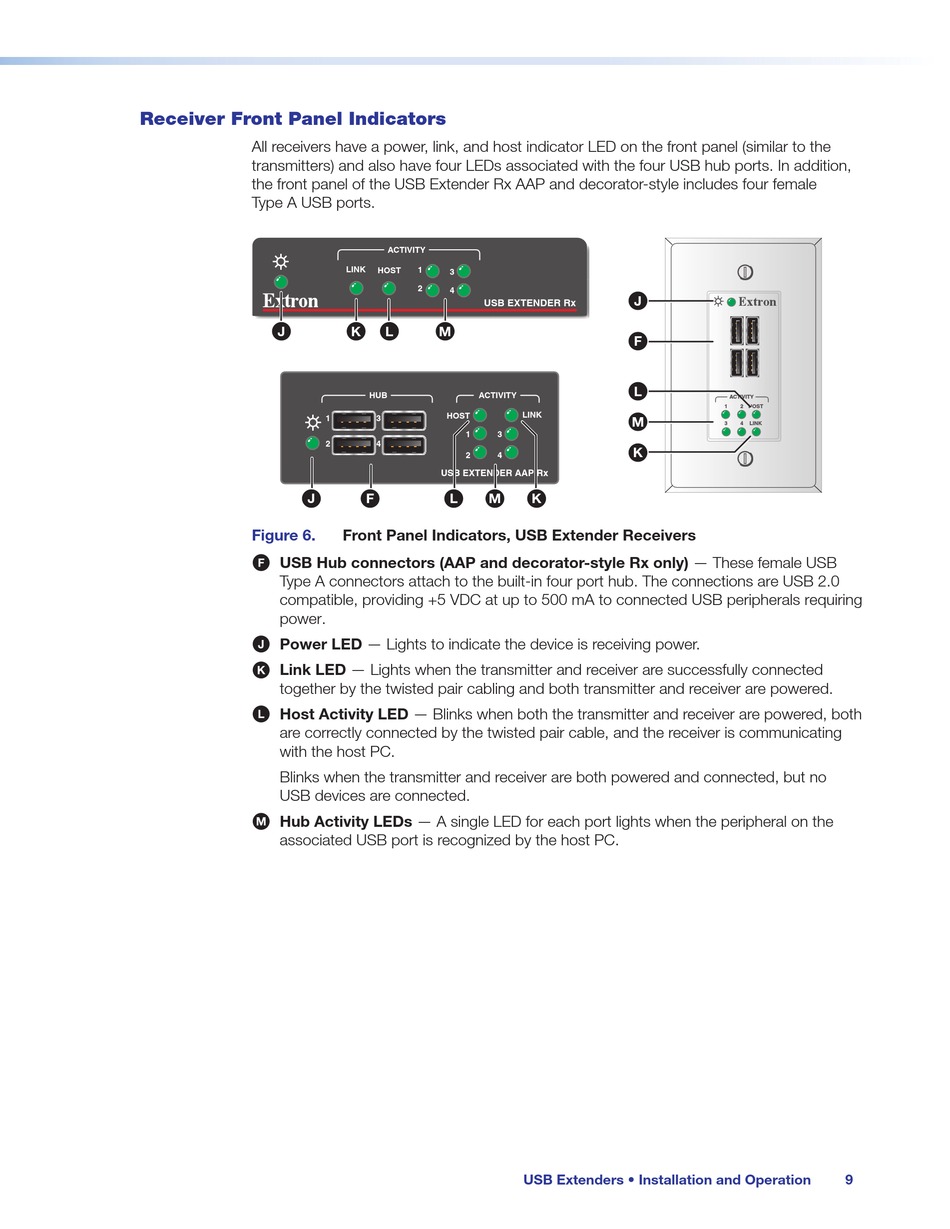

Receiver Front Panel Indicators

All receivers have a power, link, and host indicator LED on the front panel (similar to the
transmitters) and also have four LEDs associated with the four USB hub ports. In addition,
the front panel of the USB Extender Rx AAP and decorator-style includes four female
Type A USB ports.
J
J
Figure 6.
USB Hub connectors (AAP and decorator-style Rx only) — These female USB
F
Type A connectors attach to the built-in four port hub. The connections are USB 2.0
compatible, providing +5 VDC at up to 500 mA to connected USB peripherals requiring
power.
Power LED — Lights to indicate the device is receiving power.
J
Link LED — Lights when the transmitter and receiver are successfully connected
K
together by the twisted pair cabling and both transmitter and receiver are powered.
Host Activity LED — Blinks when both the transmitter and receiver are powered, both
L
are correctly connected by the twisted pair cable, and the receiver is communicating
with the host PC.
Blinks when the transmitter and receiver are both powered and connected, but no
USB devices are connected.
Hub Activity LEDs — A single LED for each port lights when the peripheral on the
M
associated USB port is recognized by the host PC.
ACTIVITY
LINK HOST 1
3
2
4
USB EXTENDER Rx
K L M
HUB ACTIVITY
HOST
1 3
1 3
2 4
2 4
USB EXTENDER AAP Rx
F L M
Front Panel Indicators, USB Extender Receivers
J
F
L
LINK
M
K
K
USB Extenders • Installation and Operation
ACTIVITY
1 2 HOST
3 4 LINK
