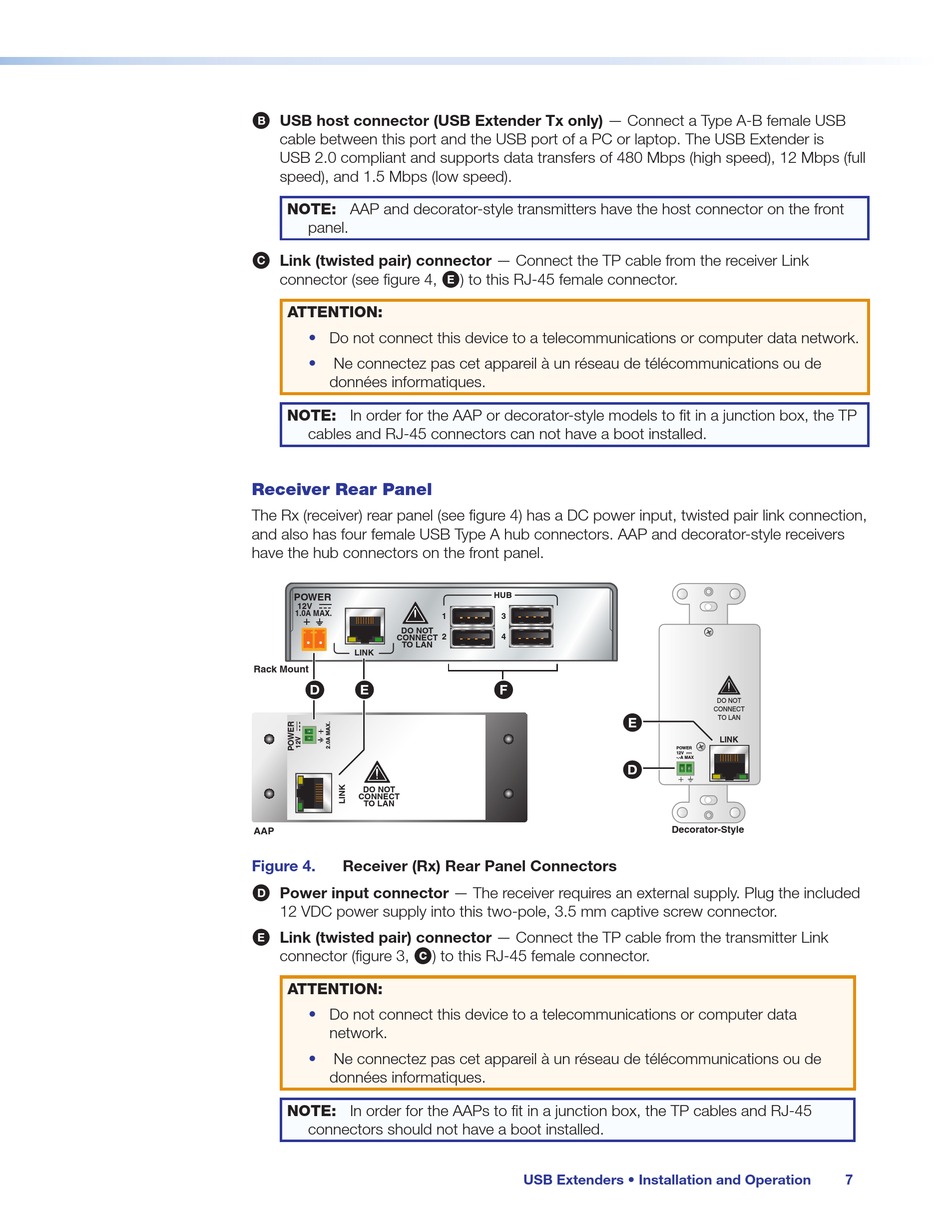

Extron electronics USB Extender Tx User Manual page 14

USB host connector (USB Extender Tx only) — Connect a Type A-B female USB
B
cable between this port and the USB port of a PC or laptop. The USB Extender is
USB 2.0 compliant and supports data transfers of 480 Mbps (high speed), 12 Mbps (full
speed), and 1.5 Mbps (low speed).
NOTE: AAP and decorator-style transmitters have the host connector on the front
panel.
Link (twisted pair) connector — Connect the TP cable from the receiver Link
C
connector (see figure 4,
ATTENTION:
• Do not connect this device to a telecommunications or computer data network.
• Ne connectez pas cet appareil à un réseau de télécommunications ou de
données informatiques.
NOTE: In order for the AAP or decorator-style models to fit in a junction box, the TP
cables and RJ-45 connectors can not have a boot installed.
Receiver Rear Panel
The Rx (receiver) rear panel (see figure 4) has a DC power input, twisted pair link connection,
and also has four female USB Type A hub connectors. AAP and decorator-style receivers
have the hub connectors on the front panel.
POWER
12V
1.0A MAX.
DO NOT
CONNECT
TO LAN
LINK
Rack Mount
D E
DO NOT
CONNECT
TO LAN
AAP
Figure 4. Receiver (Rx) Rear Panel Connectors
Power input connector — The receiver requires an external supply. Plug the included
D
12 VDC power supply into this two-pole, 3.5 mm captive screw connector.
Link (twisted pair) connector — Connect the TP cable from the transmitter Link
E
connector (figure 3,
c
ATTENTION:
• Do not connect this device to a telecommunications or computer data
network.
• Ne connectez pas cet appareil à un réseau de télécommunications ou de
données informatiques.
NOTE: In order for the AAPs to fit in a junction box, the TP cables and RJ-45
connectors should not have a boot installed.
) to this RJ-45 female connector.
E
HUB
1 3
2 4
F
) to this RJ-45 female connector.
USB Extenders • Installation and Operation
DO NOT
CONNECT
TO LAN
E
LINK
POWER
12V
-.-A MAX
D
Decorator-Style
7
