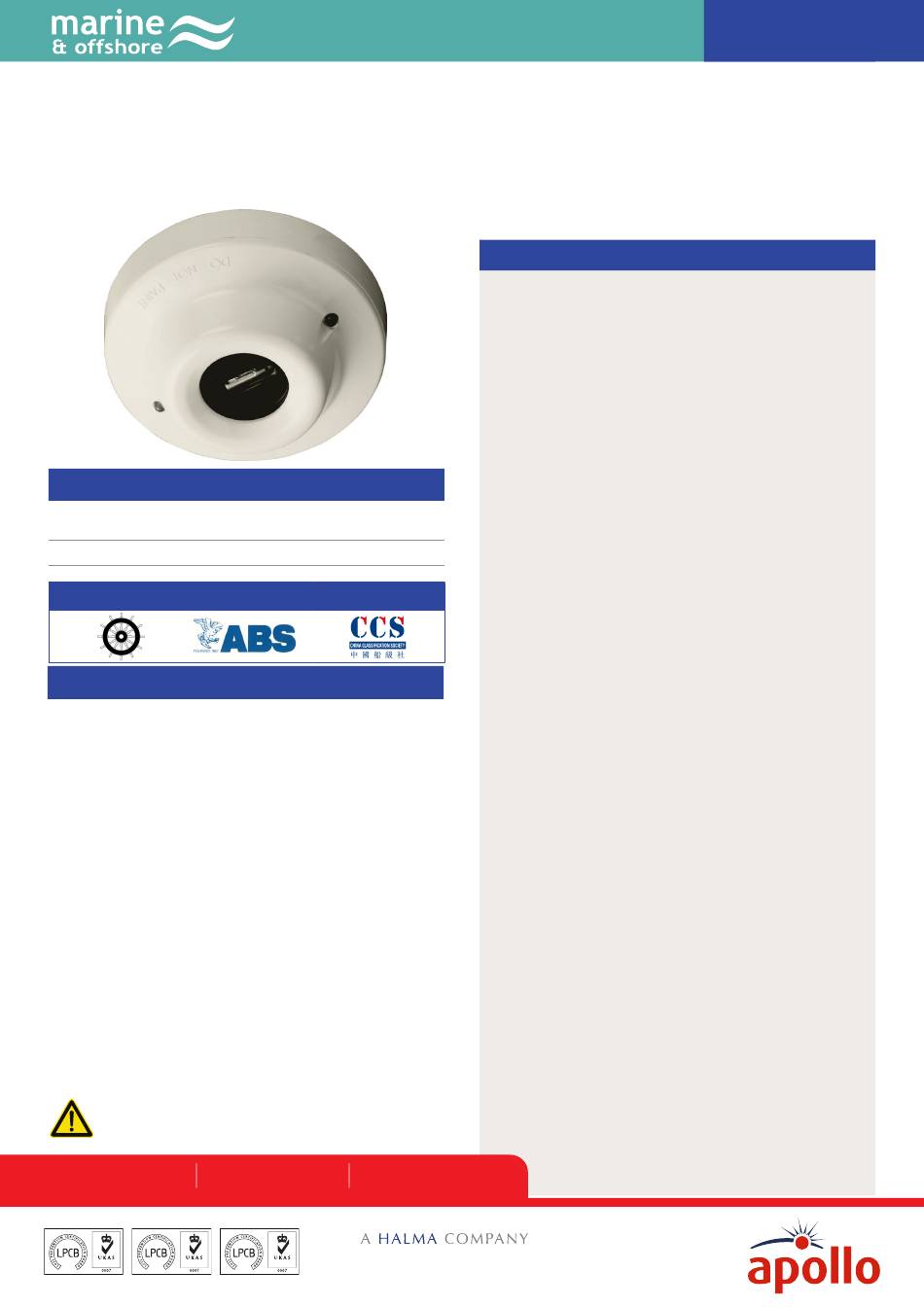

Halma Apollo Marine 65 Series Quick Start Manual

Series 65
Marine Base Mounted UV Flame Detector
Product overview
Product
Part No.
Approvals
Product information
The Series 65 Marine Base Mounted Ultraviolet (UV) Flame
Detector is designed to protect indoor areas where open fires may
be expected.
UV flame detectors are designed for use in enclosed spaces and
require a clear line of sight within the area to be protected. They
are unaffected by draughts or convection currents.
They are fast acting and respond to a flame more than 25 m away.
Operation
The Series 65 Marine Base Mounted UV Flame Detector is
sensitive to UV radiation emitted by flames during combustion.
Since it requires only UV radiation the detector responds even to
stationary flames with no flicker such as cigarette lighters and
blue gas flames.
The detector is set to respond to UV radiation (180 - 260 nm)
emitted by almost all flames including those invisible to the naked
eye, e.g. hydrogen fires.
The detector has a single UV sensor with a narrow spectral
response in order to discriminate between flames and most
spurious sources of radiation and is designed for use in internal
fully enclosed areas.
CAUTION: The detector will also detect electrical
discharges from lightning or arc welding.
36 Brookside Road, Havant Tel: +44 (0)23 9249 2412
Hampshire, PO9 1JR, UK. Fax: +44 (0)23 9249 2754
MANAGEMENT MANAGEMENT
SYSTEMS SYSTEMS
Assessed to ISO 9001:2008 Assessed to ISO 14001:2004
Cert/LPCB ref. 010 Cert/LPCB ref. 010 EMS
Marine Base Mounted UV Flame
Detector
55000-026MAR
Email: sales@apollo-fire.com
Web: www.apollo-fire.co.uk
© Apollo Fire Detectors Limited 2017
PRODUCT
CERTIFICATION
Cert/LPCB ref. 010
Technical Data
All data is supplied subject to change without notice. Specifications are
typical at 24 V, 25°C and 50% RH unless otherwise stated.
Supply voltage
Quiescent current
Alarm voltage
Alarm current
Terminal functions
Remote output characteristics
Alarm indicator
Design alarm load
Holding voltage
Holding current
Minimum voltage required to
illuminate indicators
Alarm reset voltage
Alarm reset time
Range of view
Sensitivity
Field of view
Spectral response
Operating temperature
(no condensing or icing)
Storage temperature
Relative humidity
IP rating
Standards and approvals
Dimensions
Weight
Materials: Housing White flame-retardant polycarbonate
Sensing window 2 mm Quartz
Terminals Nickel plated stainless steel
PP5071/2017/Issue 1
Page 1 of 2
17 - 28 V dc
550 µA
6 to 33 V dc
61 mA at 28 V
54 mA at 24 V
20 mA at 10 V
L1 in and out Supply positive
L2 Supply negative
-R Remote indicator
negative
connection
Remote is a current sink to the negative
line limited to 17 mA
Red light emitting diode (LED)
420 Ω in series with a 2 V drop
6 V min
10 mA min
12 V
< 1 V
1 second
0.1 m² n-heptane at 25 m
Class 1, EN 54-10
90º cone
UV 180 to 260 nm
-40ºC to +70ºC
-40ºC to +85ºC
95% non-condensing
IP66
MED, ABS and CCS
100 mm x 40 mm detector only
100 mm x 48 mm detector and base
150 g - detector only
210 g - detector and base
