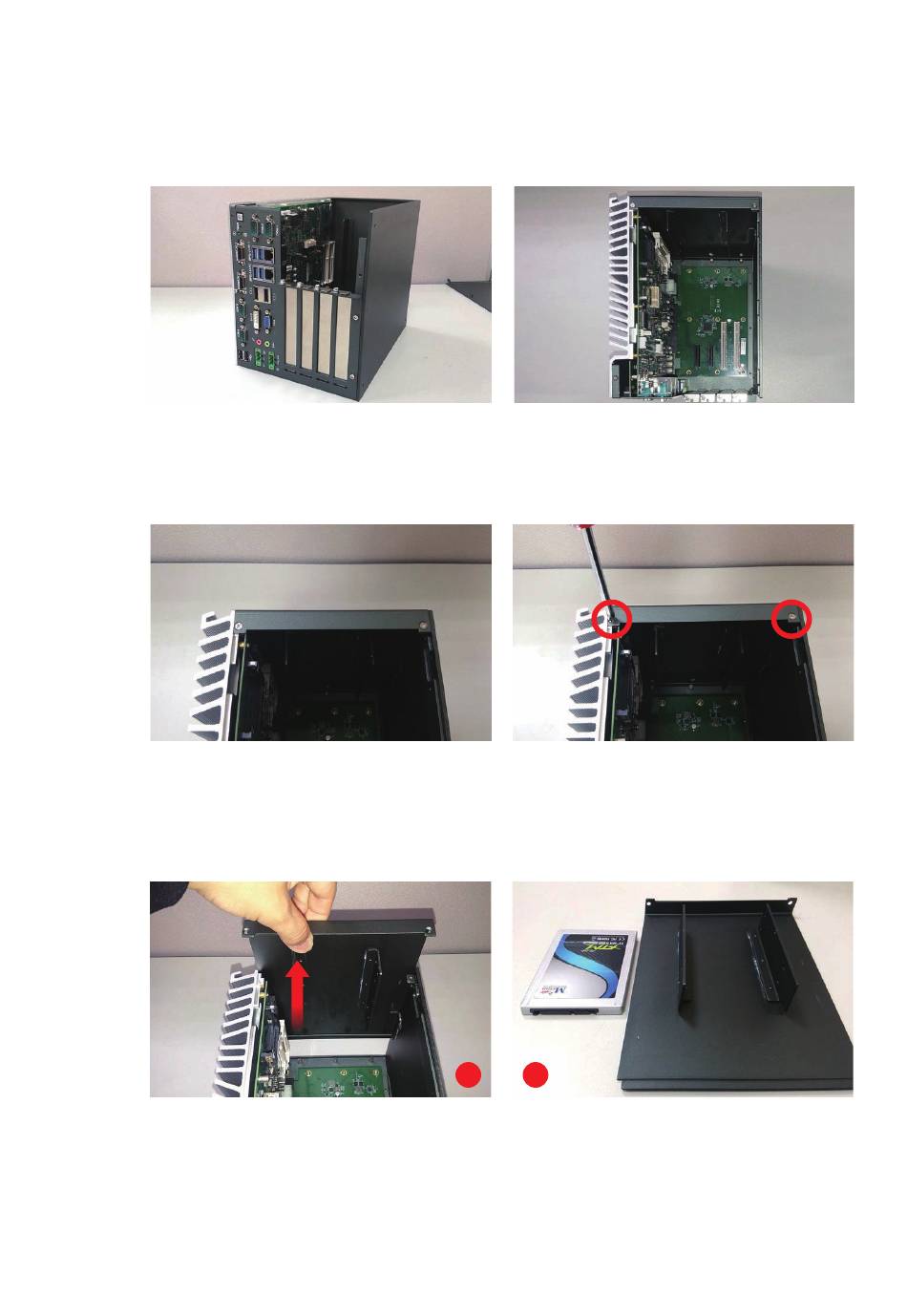

Step 4. Installing HDD/SSD
Repeat Step 1.
Loosen 2 pcs F #6x6 screws from the top of the SSD/HDD cover by screwcriver.
Lift the HDD/SSD cover as the image 1.
Make sure the screw hold of HDD/SSD cover to match HDD/SSD. (Image 2)
1
2
59
HARDWARE INSTALLATION
