LT8301

ABSOLUTE MAXIMUM RATINGS

(Note 1)
SW (Note 2) ............................................................. 65V
V ........................................................................... 42V
IN
EN/UVLO ................................................................... V
R ...................................................... V
FB
Current into R ................................................... 200µA
FB
Operating Junction Temperature Range (Notes 3, 4)
LT8301E, LT8301I .............................. –40°C to 125°C
LT8301H ............................................ –40°C to 150°C
LT8301MP ......................................... –55°C to 150°C
Storage Temperature Range .................. –65°C to 150°C

ORDER INFORMATION

LEAD FREE FINISH TAPE AND REEL
LT8301ES5#TRMPBF LT8301ES5#TRPBF
LT8301IS5#TRMPBF LT8301IS5#TRPBF
LT8301HS5#TRMPBF LT8301HS5#TRPBF
LT8301MPS5#TRMPBF LT8301MPS5#TRPBF
AUTOMOTIVE PRODUCTS**
LT8301ES5#WTRMPBF LT8301ES5#WTRPBF
LT8301IS5#WTRMPBF LT8301IS5#WTRPBF
LT8301HS5#WTRMPBF LT8301HS5#WTRPBF
Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.
Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These
models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local
Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models.
2

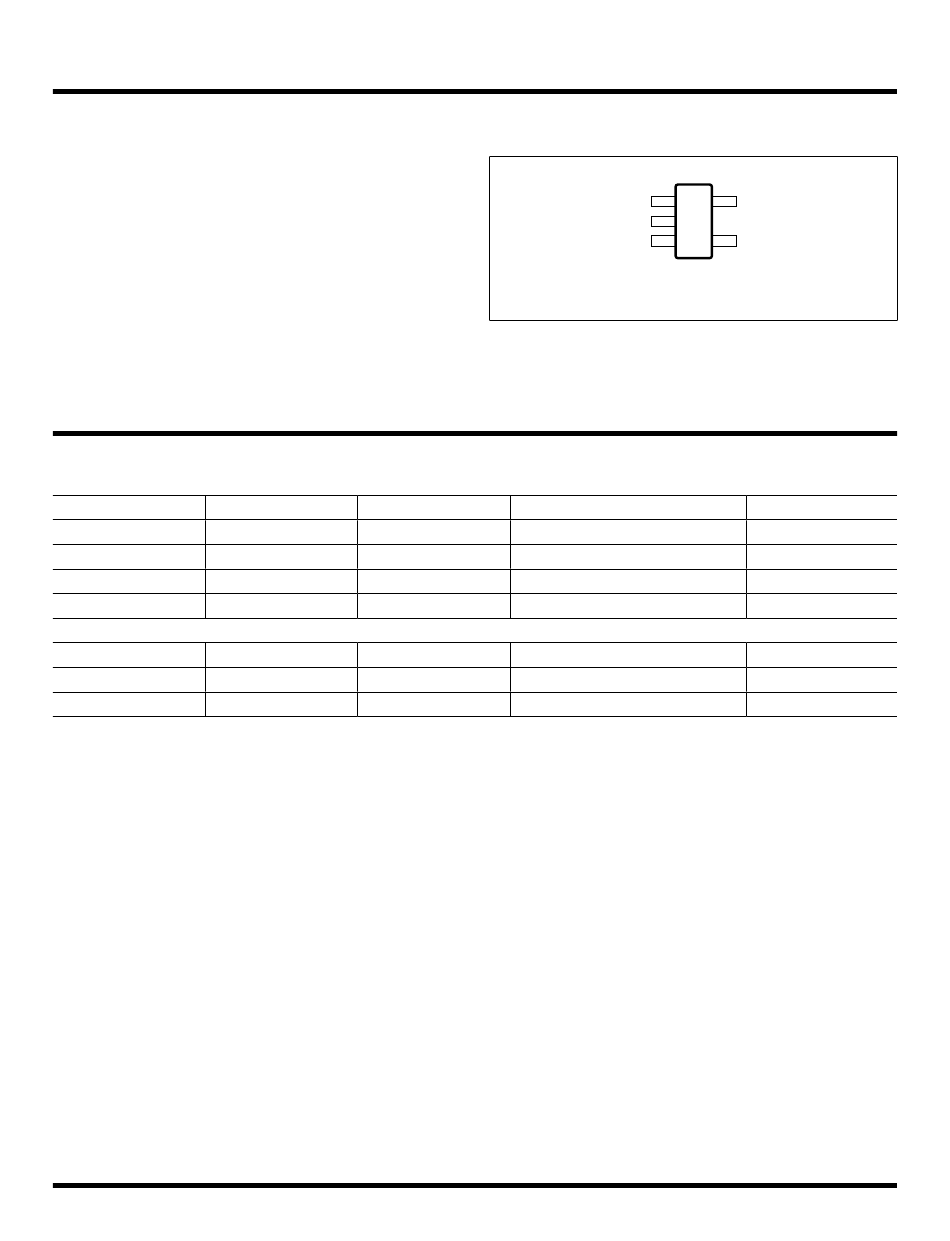

PIN CONFIGURATION

IN
– 0.5V to V
IN IN
PART MARKING* PACKAGE DESCRIPTION
LTGMF 5-Lead Plastic TSOT-23
LTGMF 5-Lead Plastic TSOT-23
LTGMF 5-Lead Plastic TSOT-23
LTGMF 5-Lead Plastic TSOT-23
LTGMF 5-Lead Plastic TSOT-23
LTGMF 5-Lead Plastic TSOT-23
LTGMF 5-Lead Plastic TSOT-23
For more information www.analog.com
TOP VIEW
EN/UVLO 1 5 V
IN
GND 2
R 3 4 SW
FB
S5 PACKAGE
5-LEAD PLASTIC TSOT-23
= 150°C/W
θ
JA
TEMPERATURE RANGE
–40°C to 125°C
–40°C to 125°C
–40°C to 150°C
–55°C to 150°C
–40°C to 125°C
–40°C to 125°C
–40°C to 150°C
Rev. A
