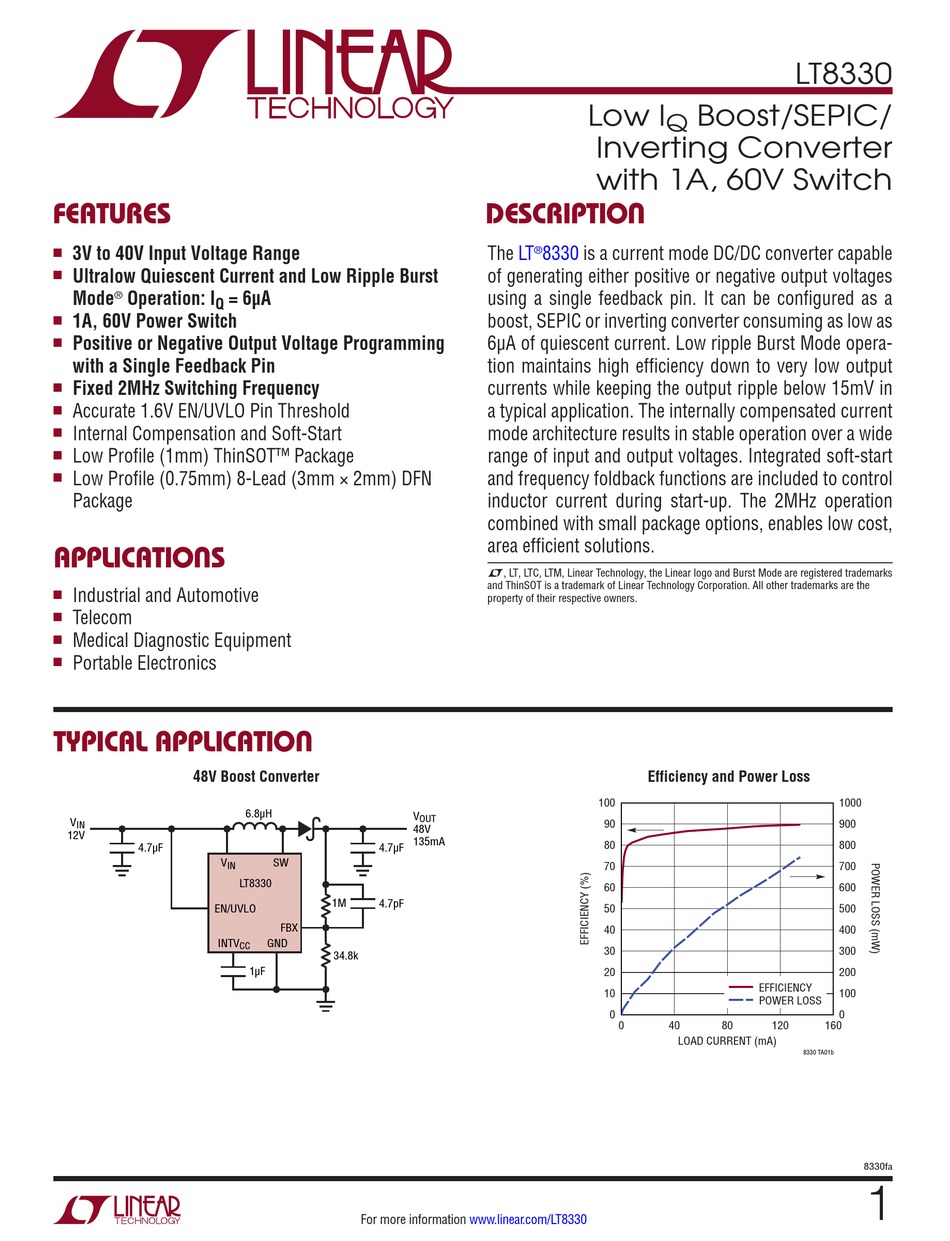

Low iq boost/sepic/ inverting converter with 1a, 60v switch

Advertisement

Quick Links

FeaTures
3V to 40V Input Voltage Range
n
Ultralow Quiescent Current and Low Ripple Burst
n
Mode
Operation: I
= 6µA
®
Q
1A, 60V Power Switch
n
Positive or Negative Output Voltage Programming
n
with a Single Feedback Pin
Fixed 2MHz Switching Frequency
n
Accurate 1.6V EN/UVLO Pin Threshold
n
Internal Compensation and Soft-Start
n
Low Profile (1mm) ThinSOT™ Package
n
Low Profile (0.75mm) 8-Lead (3mm × 2mm) DFN
n
Package
applicaTions
Industrial and Automotive
n
Telecom
n
Medical Diagnostic Equipment
n
Portable Electronics
n
Typical applicaTion
48V Boost Converter
V
IN
12V
4.7µF
V
IN
EN/UVLO
INT
6.8µH
4.7µF
SW
LT8330
1M
4.7pF
FBX
V
GND
CC
34.8k
1µF
For more information
Low I
DescripTion
The
LT
8330
is a current mode DC/DC converter capable
®
of generating either positive or negative output voltages
using a single feedback pin. It can be configured as a
boost, SEPIC or inverting converter consuming as low as
6µA of quiescent current. Low ripple Burst Mode opera-
tion maintains high efficiency down to very low output
currents while keeping the output ripple below 15mV in
a typical application. The internally compensated current
mode architecture results in stable operation over a wide
range of input and output voltages. Integrated soft-start
and frequency foldback functions are included to control
inductor current during start-up. The 2MHz operation
combined with small package options, enables low cost,
area efficient solutions.
L, LT, LTC, LTM, Linear Technology, the Linear logo and Burst Mode are registered trademarks
and ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the
property of their respective owners.
V
OUT
48V
135mA
www.linear.com/LT8330
Boost/SEPIC/
Q
Inverting Converter
with 1A, 60V Switch
Efficiency and Power Loss
100
90
80
70
60
50
40
30
20
EFFICIENCY
10
POWER LOSS
0
0
40
80
120
LOAD CURRENT (mA)
LT8330
1000
900
800
700
600
500
400
300
200
100
0
160
8330 TA01b
8330fa
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT8330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Linear Technology LT8330

  • Page 1 L, LT, LTC, LTM, Linear Technology, the Linear logo and Burst Mode are registered trademarks and ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the Industrial and Automotive property of their respective owners.
  • Page 2: Absolute Maximum Ratings

    LT8330 absoluTe MaxiMuM raTings (Note 1) SW ................60V Operating Junction Temperature (Note 3) , EN/UVLO ............40V LT8330E, LT8330I ......–40°C to 125°C EN/UVLO Pin Above V Pin ........6V LT8330H ..........–40°C to 150°C INTV (Note 2) ............4V Storage Temperature Range ....–65°C to 150°C FBX ................±4V...
  • Page 3: Electrical Characteristics

    LT8330 elecTrical characTerisTics denotes the specifications which apply over the full operating temperature range, otherwise specifications are at T = 25°C. V = 12V, EN/UVLO = 12V unless otherwise noted. PARAMETER CONDITIONS UNITS Operating Voltage Range Quiescent Current at Shutdown = 0.2V...
  • Page 4: Typical Performance Characteristics

    LT8330 Typical perForMance characTerisTics FBX Positive Regulation Voltage FBX Negative Regulation Voltage EN/UVLO Pin Thresholds vs Temperature vs Temperature vs Temperature 1.630 –0.785 1.74 = 12V = 12V = 12V 1.72 1.620 –0.790 1.70 1.68 1.610 –0.795 1.66 EN/UVLO RISING (TURN-ON) 1.600...
  • Page 5 LT8330 Typical perForMance characTerisTics Pin Current (Sleep Mode, Not Pin Current (Active Mode, Not Switching) vs Temperature Switching) vs Temperature Burst Frequency vs Load Current 10.00 1000 = 12V = 12V FRONT PAGE APPLICATION 8.75 = 12V 7.50 = 48V 6.25...
  • Page 6: Pin Functions

    EN/UVLO: Shutdown and Undervoltage Detect Pin. The GND: Ground Connection for the LT8330. The DFN pack- LT8330 is shut down when this pin is low and active age has the best thermal performance due to an exposed when this pin is high. Below an accurate 1.6V threshold pad (Pin 9) on the bottom of the package.
  • Page 7: Block Diagram

    LT8330 block DiagraM EN/UVLO INTERNAL REFERENCE UVLO 1.68V(+) 3V REGULATOR 1.6V(–) UVLO – > 170°C INTV INTV UVLO FREQUENCY OSCILLATOR FOLDBACK 2MHz SWITCH LOGIC ERROR AMP SLOPE SELECT BURST DRIVER DETECT ERROR 1.6V – – LIMIT – PWM COMPARATOR ERROR...
  • Page 8: Operation

    LT8330 resumes switching. If the EN/UVLO pin volt- increase the VC voltage until the new load current is satis- age is below 0.2V, the LT8330 only draws 1µA from V fied. In this manner, the error amplifier sets the correct To optimize efficiency at light loads, the LT8330 operates peak switch current level to keep the output in regulation.
  • Page 9 Figure 1. The No additional components or loading is allowed on this output load at which the LT8330 reaches the fixed 2MHz pin. The INTV rising threshold (to allow soft start and frequency varies based on input voltage, output voltage, switching) is typically 2.6V.
  • Page 10: Setting The Output Voltage

    R1 and R2 are usually in the range from VC. Once all faults are removed, the LT8330 will soft-start 25k to 1M. Most applications use a phase-lead capacitor VC and hence inductor peak current.
  • Page 11 (connected inductance forms a high quality (under damped) tank cir- across the feedback resistor from output to FBX pin). cuit. If the LT8330 circuit is plugged into a live supply, the 8330fa For more information...
  • Page 12: Ceramic Capacitors

    Choose Schottky diodes with sufficient reverse ESR. However, ceramic capacitors can cause problems voltage ratings for the target applications. when used with the LT8330 due to their piezoelectric nature. When in Burst Mode operation, the LT8330’s switching Table 3. Recommended Schottky Diodes...
  • Page 13: Thermal Considerations

    ) and the diode forward voltage (V Care should be taken in the layout of the PCB to ensure good heat sinking of the LT8330. The DFN package has the The maximum duty cycle (D ) occurs when the converter...
  • Page 14 Due to the current limit of its internal power switch, the In a SEPIC converter, the switch current is equal to I LT8330 should be used in a SEPIC converter whose when the power switch is on, therefore, the maximum...
  • Page 15 C rent ratings. INVERTING CONVERTER APPLICATIONS SEPIC Converter: Output Diode Selection The LT8330 can be configured as a dual-inductor inverting To maximize efficiency, a fast switching diode with a low topology, as shown in Figure 7. The V to V ratio is: forward drop and low reverse leakage is desirable.
  • Page 16 LT8330 applicaTions inForMaTion Be sure to check that D and D obey : After specifying the maximum output ripple, the user can select the output capacitors according to the preceding < 1-Minimum Off-Time • f (MAX) OSC(MAX) equation. The ESR can be minimized by using high quality X5R or >...
  • Page 17: Typical Applications

    LT8330 Typical applicaTions 48V Boost Converter Efficiency 6.8µH 135mA 4.7µF 4.7µF LT8330 EN/UVLO 4.7pF 34.8k 1µF D1: NXP PMEG6010CEJ BOOST: V = 48V L1: WÜRTH WE-MAPI 3015 74438335068 = 12V C3: MURATA GRM32ER71H475k 8330 TA02 LOAD CURRENT (mA) 8330 TA02b...
  • Page 18 LT8330 Typical applicaTions 3V to 6V Input, 24V Boost Converter Efficiency 0.68µH 3V TO 6V 30mA AT V = 3V 4.7µF 4.7µF 34mA AT V = 5V 35mA AT V = 6V LT8330 EN/UVLO BOOST : V = 24V 71.5k...
  • Page 19 LT8330 Typical applicaTions 4V to 36V Input, 12V SEPIC Converter Efficiency 1µF 4.7µH 4V TO 36V 170mA AT V = 4V 4.7µF 4.7µF 270mA AT V = 12V 4.7µH ×2 280mA AT V = 24V 280mA AT V = 36V...
  • Page 20 LT8330 Typical applicaTions 8V to 30V Input, –24V Inverting Converter Efficiency 1µF 6.8µH 6.8µH 8V TO 30V –24V 160mA AT V = 8V 4.7µF 2.2µF 200mA AT V = 12V 250mA AT V = 24V 250mA AT V = 30V...
  • Page 21: Package Description

    LT8330 package DescripTion Please refer to http://www.linear.com/product/LT8330#packaging for the most recent package drawings. DDB Package 8-Lead Plastic DFN (3mm × 2mm) DDB Package (Reference LTC DWG # 05-08-1702 Rev B) 8-Lead Plastic DFN (3mm × 2mm) (Reference LTC DWG # 05-08-1702 Rev B) 0.61 ±0.05...
  • Page 22 LT8330 package DescripTion Please refer to http://www.linear.com/product/LT8330#packaging for the most recent package drawings. S6 Package 6-Lead Plastic TSOT-23 S6 Package (Reference LTC DWG # 05-08-1636) 6-Lead Plastic TSOT-23 (Reference LTC DWG # 05-08-1636) 2.90 BSC 0.62 0.95 (NOTE 4) 1.22 REF 1.50 –...
  • Page 23: Revision History

    2, 22, 23 8330fa Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- For more information www.linear.com/LT8330 tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.
  • Page 24: Typical Application

    3mm × 3mm DFN-8, MSOP-8E 8330fa Linear Technology Corporation LT 0316 REV A • PRINTED IN USA 1630 McCarthy Blvd., Milpitas, CA 95035-7417 For more information www.linear.com/LT8330 (408) 432-1900 FAX: (408) 434-0507 www.linear.com/LT8330  LINEAR TECHNOLOGY CORPORATION 2015 ● ●...
