2-Port USB-C Gen 1 Dock Switch with Power Pass-
through
US3310 User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the US3310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATEN US3310

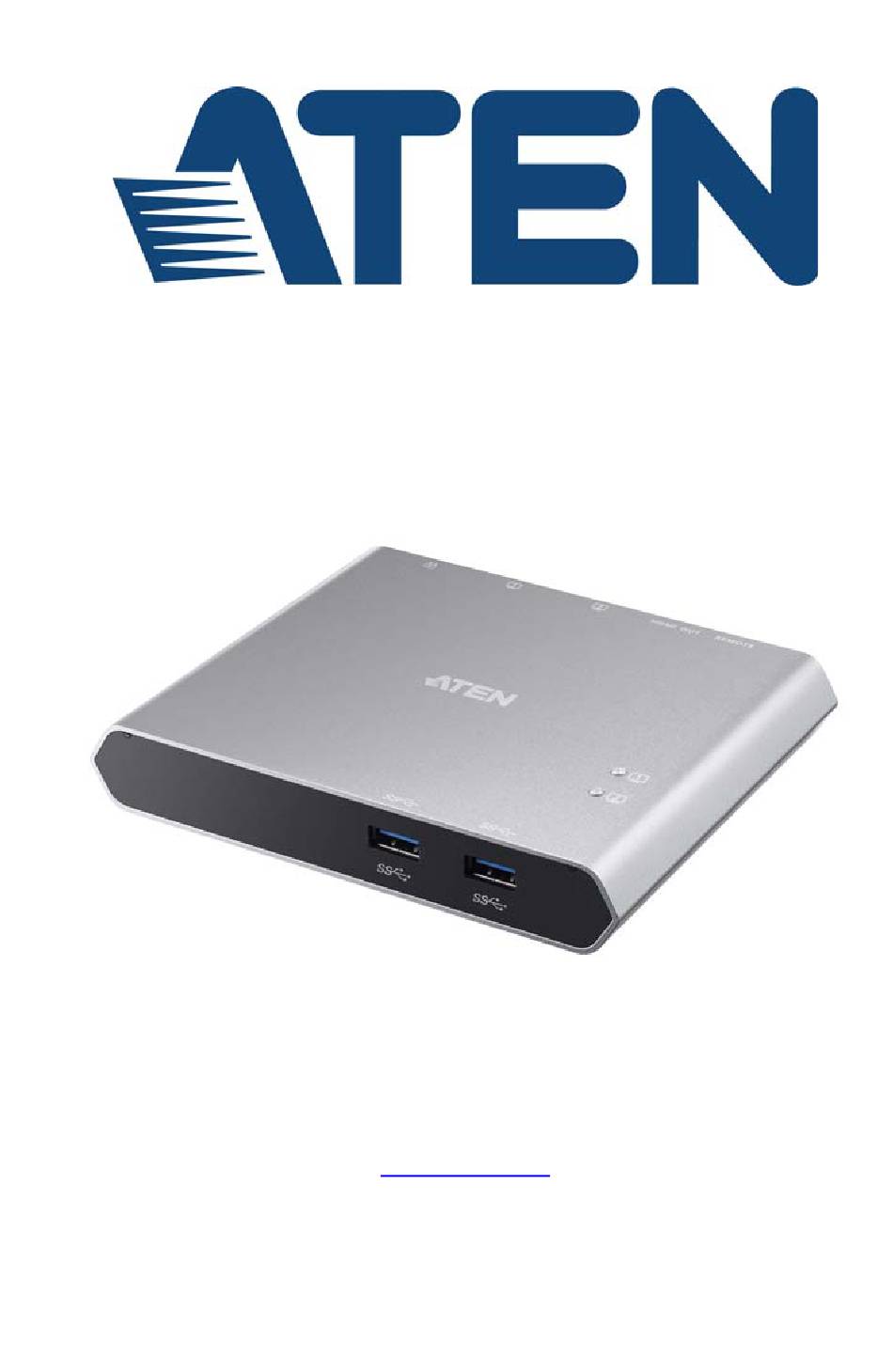

  • Page 1 2-Port USB-C Gen 1 Dock Switch with Power Pass- through US3310 User Manual www.aten.com...
  • Page 2: Emc Information

    US3310 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3: Rohs

    US3310 User Manual RoHS This product is RoHS compliant.
  • Page 4: User Information

    US3310 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...
  • Page 5: Package Contents

    US3310 User Manual Package Contents 1 US3310 2-Port USB-C Gen 1 Dock Switch with Power Pass-through 2 USB-C Cables 1 Remote Port Selector 1 User Instructions Note:Make sure that all of the components are present and in good order. If anything is missing or was damaged in shipping, contact your dealer.
  • Page 6: Table Of Contents

    US3310 User Manual Table of Contents EMC Information..........ii RoHS .
  • Page 7: About This Manual

    US3310 User Manual About this Manual This user manual is provided to help you get the most from the US3310 unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below.
  • Page 8: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 9: Introduction

    You can connect smartphone with the US3310 to build a workstation in Samsung DeX mode or Huawei Desktop mode for multitask and switch to laptop when you have heavy loading tasks to do.
  • Page 10: Features

    US3310 User Manual Features  Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals  Provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter needed) ...
  • Page 11: System Requirements

    Note:For better HID experience, iPad OS 13 and above is recommended. Declaration Samsung Dex is a registered application of Samsung Electronics. US3310 is not manufactured, sponsored, licensed or distributed by Samsung Electronics. Huawei Desktop mode is a registered application of Huawei Technologies.
  • Page 12: Components

    Connects an USB-C power source to power the unit. Port USB 3.2 Gen 1 Connects a computer with an USB-C cable into the back of Type-C Port 1 the US3310. If you need PD laptop charging, connect your computer to this Port 1. (Laptop)
  • Page 13 USB functions and video output should be at least 5V, 3A. The first 15W will supply the US3310, the next 10W will supply USB- C device connected to Port 2, and the balance power will...
  • Page 14: Top View

    US3310 User Manual Top View Top View Component Description Console The LEDs correspond to the consoles. When the console is Indicator (Port 1 switched, the corresponding LED will light. LED) Console The LEDs correspond to the consoles. When the console is Indicator (Port 2 switched, the corresponding LED will light.
  • Page 15: Hardware Setup

    Chapter 2 Hardware Setup Please review the safety information regarding the placement of this device in Safety Instructions, page 11. Connecting the Unit Follow the steps below to connect the US3310 unit.
  • Page 16 2. Plug an HDMI monitor into the back of the US3310. 3. Plug USB-C power source as recommended. 4. Plug your USB peripheral devices into the US3310. 5. Plug the Remote Port Selector into the 2.5mm Jack on the US3310.
  • Page 17: Operation

    Safety Instructions, page 11. Port Selection Click the Port Selector (connected to the US3310) to switch between the 2 connected source device (computer and/or Android mobile device). The Console Indicator LED will light up to indicate which console is currently selected.
  • Page 18 US3310 User Manual This Page Intentionally Left Blank...
  • Page 19: Appendix

    Appendix Safety Instructions General  This product is for indoor use only.  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 20 US3310 User Manual  If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
  • Page 21: Technical Support

    Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand:  Product model number, serial number, and date of purchase  Your computer configuration, including operating system, revision level, expansion cards, and software ...
  • Page 22: Specifications

    US3310 User Manual Specifications Function US3310 Device Connectin Computer 1 x USB 3.2 Gen 1 Type-C Female Upstream Smart 1 x USB 3.2 Gen 1 Type-C Female Phone 2 x USB 3.2 Gen 1 Type-A Female Connectors HDMI 1 x HDMI Female...
  • Page 23 Appendix Function US3310 1. Windows USB-C enabled computer:  Windows® 10 (32-bit / 64-bit) and above  With Intel 7th-Generation Core Processor (Kaby-Lake with HD 6XX series integrated graphics) and above  For video output to work through a USB-C port, it must support DP Alt Mode 2.
  • Page 24: Limited Warranty

    What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
