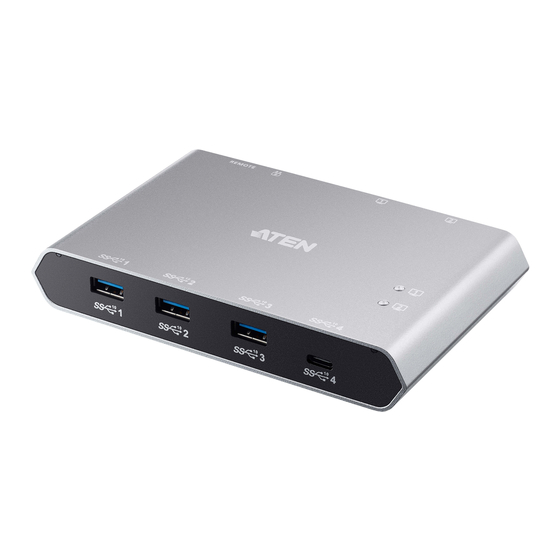

- Page 1 2-Port USB-C Gen 2 Sharing Switch with Power Pass- through US3342 User Manual www.aten.com...
-
Page 2: Emc Information
US3342 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
US3342 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
US3342 User Manual Package Contents 1 US33422-Port USB-C Gen 2 Sharing Switch with Power Pass-through 2 USB-C 3.2 Gen 2 Cable 1 Remote Port Selector 1 User Instructions Note:Make sure that all of the components are present and in good order. -
Page 5: Table Of Contents
US3342 User Manual Table of Contents EMC Information ..........ii RoHS. -
Page 6: About This Manual
US3342 User Manual About this Manual This user manual is provided to help you get the most from the US3342 unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 7: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 8 US3342 User Manual This Page Intentionally Left Blank viii...
-
Page 9: Introduction
Introduction Overview ATEN US3342 is a 4-port USB 3.2 Gen 2 peripheral sharing device that allows users to share data between four USB devices in two different USB-C enabled laptops. The US3342 is USB 3.2 Gen 2 compliant, which can support data transfer rate up to 10Gps, and also compatible with USB 3.1 Gen 1, USB 2.0... -
Page 10: Features
US3342 User Manual Features Enables two computers to share 4 USB 3.2 Gen 2 peripheral devices with data transfer rate up to 10Gps Supports USB-C Power Delivery 3.0 for laptop charging up to 85W (Additional USB-C Power Adapter is needed) ... -
Page 11: Components
Components Front View Front View Component Description USB 3.2 Gen 2 Connects your USB peripheral devices into the US3342 Type-A Ports using a Type-A connector. USB 3.2 Gen 2 Connects your USB peripheral devices into the US3342 Type-C Ports using a Type-C connector. -
Page 12: Top View
Component Description USB 3.2 Gen 2 Connects a computer with an USB-C cable into the back of Type-C Port 1 the US3342. If you need PD laptop charging, connect your (w/USB PD computer to this Port 1. charge) USB-C DC-in Connects an USB-C power source to power the unit. -
Page 13: Hardware Setup
Chapter 2 Hardware Setup Please review the safety information regarding the placement of this device in Safety Instructions, page 17. Connecting the Unit Follow the steps below to connect the US3342 unit. - Page 14 C Port 1. 2. Plug your USB peripheral devices into the US3342. 3. Plug the Remote Port Selector into the 2.5mm Jack on the US3342. 4. Plug USB-C power source as recommended. Note:For USB connector, we do not support USB Type C to USB Type A...
-
Page 15: Operation
Please review the safety information regarding the placement of this device in Safety Instructions, page 17. Port Selection Click the Port Selector (connected to the US3342) to switch between the two connected computers. The Console Indicator LED will light up to indicate which port is currently selected. -
Page 16: Software Bezel X Installation
US3342 User Manual Software BEZEL X Installation Installation for Windows Operation System: To install BEZEL X in a Windows Operation System, follow below steps: Note:To share files by a cursor move across two desktops, please install BEZEL X on both of your desktops/laptops. - Page 17 Chapter 3. Operation 3. Wait for the BEZEL X Setup preparation to finish and the BEZEL X Installation Wizard page will show up. Click Next to continue. 4. Click Install to begin the installation.
- Page 18 US3342 User Manual 5. Click Finish when the installation is complete. 6. Go to your desktop and run the BEZEL X software. Right click on the BEZEL X icon and select Run as administrator. If your Windows system does not have Run as administrator, you can select Open.
-
Page 19: Installation For Mac Operation System
Chapter 3. Operation 8. Double click on the BEZEL X icon to set your current monitor’s position. 9. Perform steps 1 to 8 on your second Windows desktop/laptop. 10. When both BEZEL X icons are light up blue on your desktops/laptops, you can now move your cursor and files across two sources. - Page 20 US3342 User Manual 1. Right click on the BEZEL X Install icon and select Open With Installer (default). 2. Click Continue to install the BEZEL X software. 3. Click Install to start the installation.
- Page 21 Chapter 3. Operation 4. A prompt will pop out when the installation is complete. Click Open System Preferences if you wish to grant access to BEZEL X. Or click Deny and Close to finish the installation. 5. Put a check in front of the BEZEL X icon as shown in the picture below.
- Page 22 US3342 User Manual 6. The installation is now complete, click Close. 7. To enable BEZEL X utility, go to Menu and select Go and click on Utilities.
- Page 23 Chapter 3. Operation 8. Find BEZEL X in the Applications, right click and select Open. 9. Now you will find the BEZEL X icon on the top right corner of your screen as shown in the picture below and wait for it to turn blue.
-
Page 24: Firmware Upgrade
US3342 User Manual 10. Click on the BEZEL X icon to set your current monitor’s position. 11. Perform steps 1 to 10 on your second Mac desktop/laptop. 12. When both BEZEL X icons are light up blue on your desktops/laptops, you can now move your cursor and files across two sources. -
Page 25: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 26 US3342 User Manual Position system cables and power cables carefully; Be sure that nothing rests on any cables. Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short out parts resulting in a risk of fire or electrical shock.
-
Page 27: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 28: Specifications
US3342 User Manual Specifications Function US3342 Computer Connections Connectors Computer 2 x USB 3.2 Gen 2 Type-C Female (Black) Device 3 x USB 3.2 Gen 2 Type-A Female (Blue) 1 x USB 3.2 Gen 2 Type-C Female (Black) USB PD Pass-through input... -
Page 29: Limited Warranty
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
