Summary of Contents for ATEN US3344I

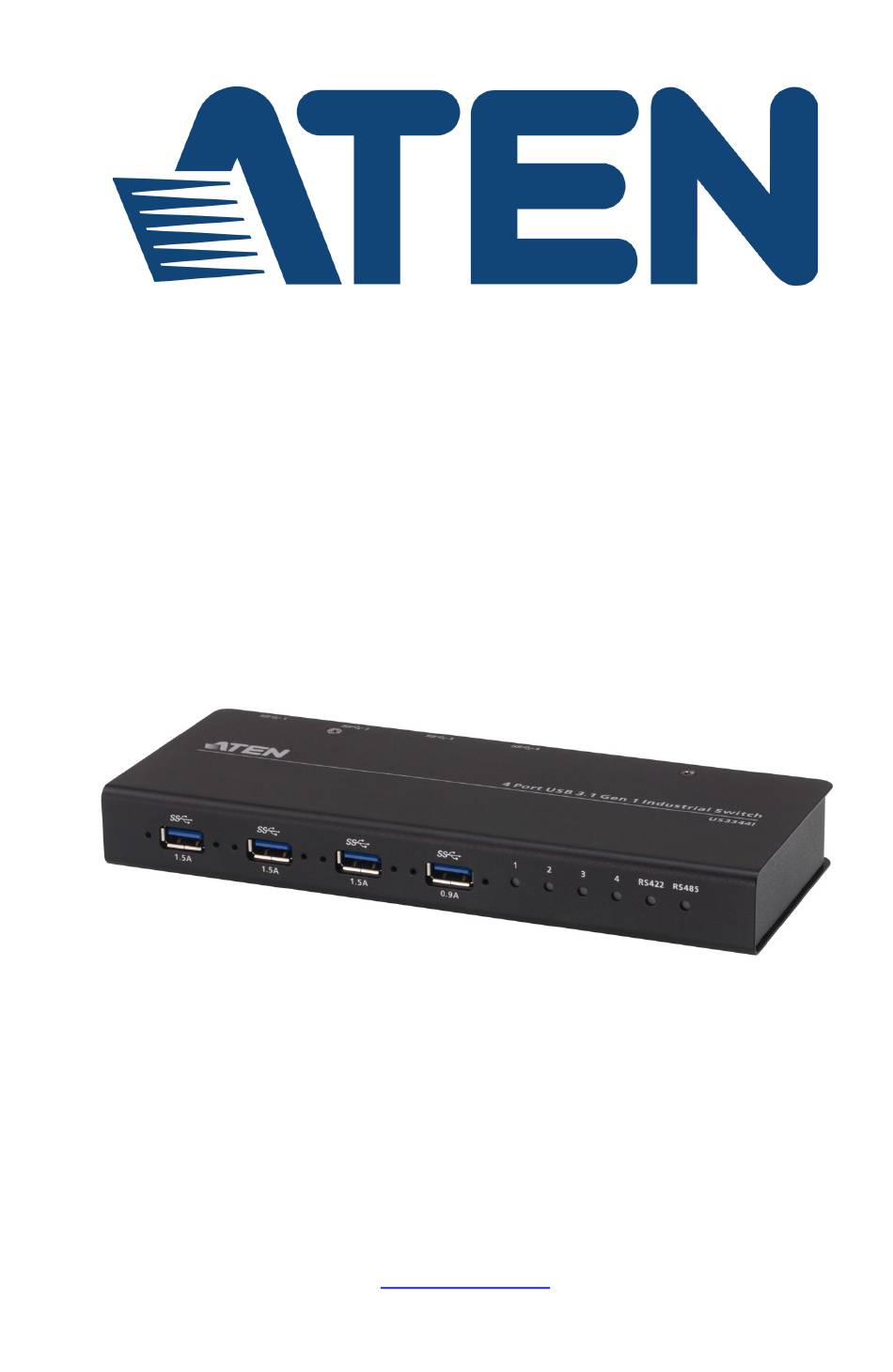

- Page 1 US3344I 4x4 USB 3.1 Gen 1 Industrial Hub Switch User Manual www.aten.com...
-
Page 2: Emc Information
US3344I User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
US3344I User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
US3344I User Manual Package Contents 1 4x4 USB 3.1 Gen 1 Industrial Hub Switch 2 USB 3.1 Gen 1 Type-B to Type-A Cable 1.2M 2 USB 3.1 Gen 1 Type-B to Type-A Cable 1.8M 1 Remote Port Selector 1 Mounting Kit... -
Page 5: Table Of Contents
US3344I User Manual Table of Contents EMC Information ..........ii RoHS. -
Page 6: About This Manual
US3344I User Manual About this Manual This user manual is provided to help you get the most from the US3344I unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 7: Conventions
Indicates critical information. Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 8 US3344I User Manual This Page Intentionally Left Blank viii...
-
Page 9: Introduction
For extra convenience, it features an external remote control port that can simplify cabling layout via traditional RS- 422 / RS-485 signals. The US3344I allows for a neat and tidy installation –The USB cables are bundled to save the extra cost of purchasing USB cables. -
Page 10: Features
CAMLIVE User Manual Features Enables four computers to share USB peripheral up to four devices Supports USB 3.1 Gen1 specifi cation, maximum data transfer rates up to 5Gbps Multiplatform support - Windows, Mac and Linux LED indicators display port focus ... -
Page 11: Components
Chapter 1. Introduction Components Component Description USB Type-A Connect USB peripherals you wish to access from the Peripheral Ports computer in your setup Port Indicator The LEDs correspond to the ports. When a port is connected, LEDs the corresponding LED will light. RS-422 / RS- The LED of the selected serial command will light up. - Page 12 CAMLIVE User Manual Component Description Control DIP Adjust the switch for different operations / features. Switch RS-422 / RS- Connects to RS-422 / RS-485 Serial Command input for 485 Serial serial commands. Command Input (Terminal Block) USB Type-B Connect to host computers. Host Port Remote Port When connected to the unit, click the button to switch to the...
-
Page 13: Hardware Setup
Chapter 2 Hardware Setup Please review the safety information regarding the placement of this device in Safety Instructions, page 13. Mounting Use the screws provided with the mounting kit to screw the mounting bracket to the bottom of the unit (Refer to the drawings shown above). -
Page 14: Rack Mounting
US3344I User Manual Rack Mounting Screw the mounting bracket to any convenient location on the rack. Wall Mounting Use the mounting bracket’s center screw hole to mount the unit on a wall. -
Page 15: Connecting The Unit
1. Plug the USB 3.1 Gen 1 Type-A end of the included USB cables into your computers (up to 4 computers) and plug the USB 3.1 Gen 1 Type-B end of the included USB cables into the back of the US3344I 2. Plug your USB peripheral devices into the USB type-A peripheral ports of the US3344I. -
Page 16: Rs-422 / Rs-485 Terminal Block Connection
R +/- terminals of the terminal block, and vice versa (e.g. T+ to R+, T- to R-) If you wish to have centralized control, you may utilize an ATEN Control Box (e.g. 2A-485, VK2100) where it can issue serial commands to control the unit. -
Page 17: Dip Switch Mode Selection
Chapter 3 Settings / Port Selection Please review the safety information regarding the placement of this device in Safety Instructions, page 13. DIP Switch Mode Selection The unit comes with a DIP Switch Set to allow for mode selection. The DIP Switch Set is shown in the picture below: Slide the switches to determine the mode the unit is in. - Page 18 US3344I User Manual Firmware Upgrade / Select Baud Rate For firmware upgrade, please do the following: 1. Power down the device by removing the power input (power adapter or DC Terminal Block). 2. Slide the SERVICE Switch of DIP Switch Set to SERVICE.
-
Page 19: Port Selection
Chapter 3. Settings / Port Selection https://www.aten.com/global/en/products/usb-&-thunderbolt/peripheral- switches/us3344i/ Go through the steps in Firmware Upgrade / Select Baud Rate to upgrade to the new firmware / baud rate. Port Selection Remote Port Selector: When a Remote Port Selector is connected, you can click the selector’s button to select a different port. - Page 20 US3344I User Manual This Page Intentionally Left Blank...
-
Page 21: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 22 CAMLIVE User Manual extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).
- Page 23 Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
-
Page 24: Technical Support
Troubleshooting http://www.aten-usa.com/support Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 25: Specifications
Appendix Specifications Function US3344I Computer Connections Connectors Computer 4 x USB Type B Female (Blue) Device 4 x USB Type B Female (Blue) Serial 1 x 5-pin Terminal Plug (Green) Power 1 x 2-pin 9-24V Terminal Plug (Green) Power (Optional) -
Page 26: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
