R.V.R. Electronica SCML1+1SL Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

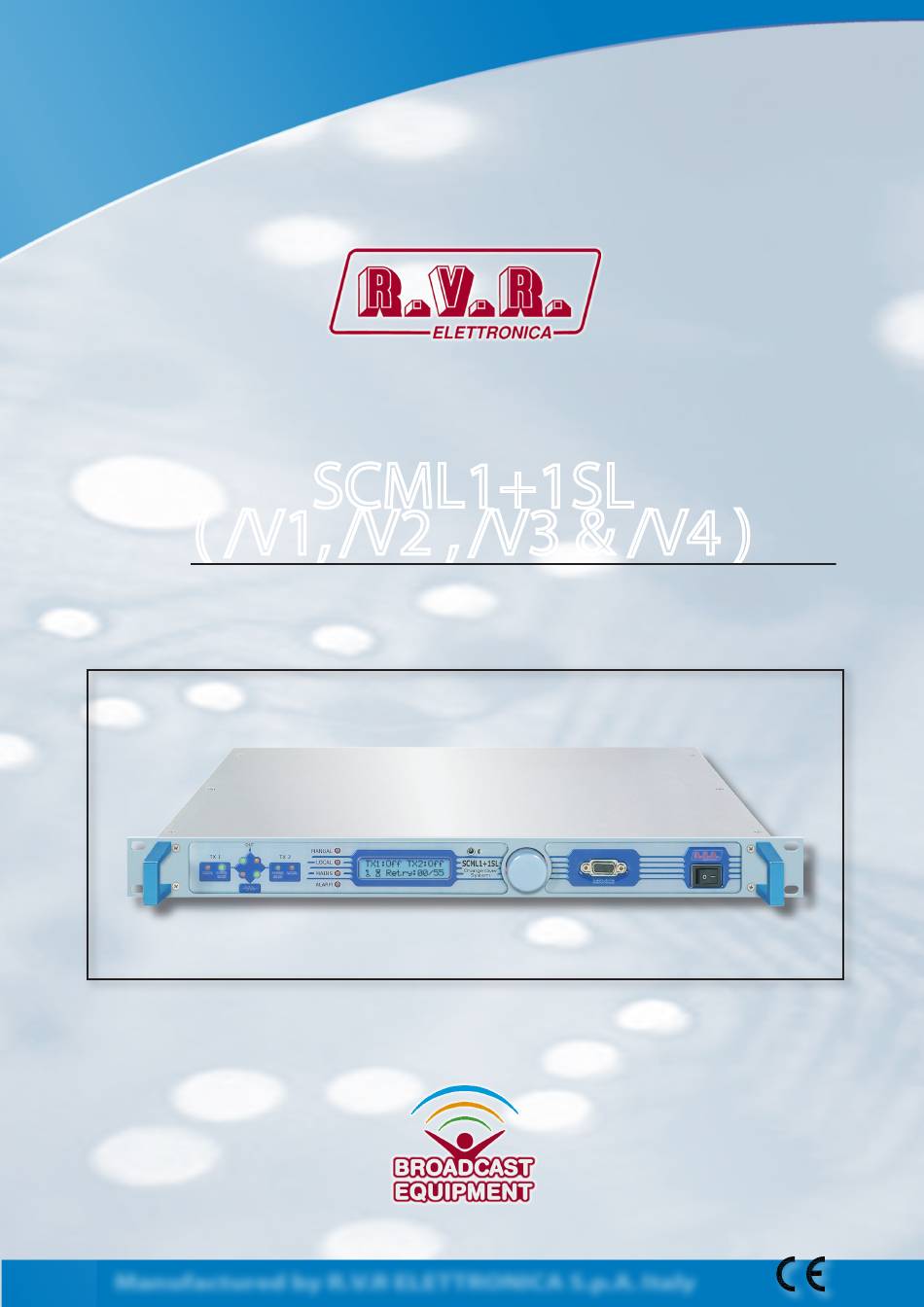

SCML1+1SL
( /V1, /V2 , /V3 & /V4 )
USER MANUAL
VOLUME1
Manufactured by R.V.R ELETTRONICA S.p.A. Italy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCML1+1SL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for R.V.R. Electronica SCML1+1SL Series

Summary of Contents for R.V.R. Electronica SCML1+1SL Series

  • Page 1 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) USER MANUAL VOLUME1 Manufactured by R.V.R ELETTRONICA S.p.A. Italy...
  • Page 2 File Name: SCML1+1SL_ING_2.0.indb Version: Date: 17/02/2017 Revision History Date Version Reason Editor Major upgrades and reorganization of 17/02/2017 J. H. Berti chapters SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) - User Manuals Version 2.0 © Copyright 2017 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia) Telephone: +39 051 6010506 Fax:...
  • Page 3 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA Technical Description Generals AC Power supply 110÷230 V +10/-15%, full range DC Power supply Weight About 6.5 kg (depends on the version) Dimension 1unit 19”rackmounted ( 483 x 44 x 390 mm) Operating temperature -10°...

  • Page 4: Table Of Contents

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA Table of Contents Preliminary Instructions Warranty First Aid Treatment of electrical shocks Treatment of electrical Burns General Description Unpacking Frontal Panel Description Rear Panel Description of SCML1+1SL/V1 Rear Panel Description of SCML1+1SL/V2 Rear Panel Description of SCML1+1SL/V3 Rear Panel Description of SCML1+1SL/V4 Connectors Description...

  • Page 5: Preliminary Instructions

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA IMPORTANT The symbol of lightning inside a triangle placed on the product, evidences the operations for which is necessary gave it full attention to avoid risk of electric shocks. The symbol of exclamation mark inside a triangle placed on the product, informs the user about the presence of instructions inside the manual that accompanies the equipment, im- portant for the efficacy and the maintenance (repairs).

  • Page 6: First Aid

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA R.V.R. is never responsible for damage or loss), until the package reaches R.V.R. premises. For this reason, we suggest you to insure the goods for the whole value. Shipment must be effected C.I.F. (PREPAID) to the address specified by R.V.R.’s service manager on the authorization DO NOT RETURN UNITS WITHOUT OUR...

  • Page 7: General Description

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 4. General Description The new SCML1+1SL changeover family can be connected to all RVR standard equipment, as well with all kind of transmitting systems, and are characterized - SCML1+1SL/V1: version with external Spinner relay mod. BN754067 and BN754098, for transmitters with output power range of 150W to 1000W: - SCML1+1SL/V2: version with internal relay, for transmitters with output power lower than 150W:...

  • Page 8: Frontal Panel Description

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 4.2 Frontal Panel Description 3 4 5 Figure 4.1 [1] SYNOPTIC Series of LED for the instantaneous vision of the exchange condition. Shows the position of coaxial relay, the state of dummy load and of transmitter connects to it.

  • Page 9: Rear Panel Description Of Scml1+1Sl/V1

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 4.3 Rear Panel Description of SCML1+1SL/V1 Figure 4.2 [1] MAIN FUSE T1.6 Fuse carrier for the fuse (1.6AT 5x20) for mains supply. [2] MAINS VOLTAGE Standard IEC connector for mains supply 110 ÷ 230 V, +10/-15%. [3] 24VDC Socket for 24Vdc external power supply.

  • Page 10: Rear Panel Description Of Scml1+1Sl/V2

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 4.4 Rear Panel Description of SCML1+1SL/V2 Figure 4.3 [1] MAIN FUSE T1.6 Fuse carrier for the fuse (1.6AT 5x20) for mains supply. [2] MAINS VOLTAGE Standard IEC connector for mains supply 110 ÷ 230 V, +10/-15%. [3] 24VDC Socket for 24Vdc external power supply.

  • Page 11: Rear Panel Description Of Scml1+1Sl/V3

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 4.5 Rear Panel Description of SCML1+1SL/V3 Figure 4.4 [1] MAIN FUSE T1.6 Fuse carrier for the fuse (1.6AT 5x20) for mains supply. [2] MAINS VOLTAGE Standard IEC connector for mains supply 110 ÷ 230 V, +10/-15%. [3] 24VDC Socket for 24Vdc external power supply.

  • Page 12: Rear Panel Description Of Scml1+1Sl/V4

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 4.6 Rear Panel Description of SCML1+1SL/V4 Figure 4.5 [1] MAIN FUSE T1.6 Fuse carrier for the fuse (1.6AT 5x20) for mains supply. [2] MAINS VOLTAGE Standard IEC connector for mains supply 110 ÷ 230 V, +10/-15%. [3] 24VDC Socket for 24Vdc external power supply.

  • Page 13: Connectors Description

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 4.7 Connectors Description 4.7.1 Remote Type: Female DB25 Pin Name +15V +15V TX1 Antenna (TC) TX2 Antenna (TC) TX1 ON (TC) TX1 OFF (TC) TX2 ON (TC) TX2 OFF (TC) AUTO (TC) MANUAL (TC) RESET (TC)
  • Page 14 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 4.7.3 Service (only for factory setting purposes) Type: Female DB9 TX_D RX_D Internally connected with 6 Internally connected with 4 Internally connected with 8 Internally connected with 7 4.7.4 Coax Relay (only for SCML1+1SL/V4) Type: Female DB9 Control voltage (+) Control voltage (-)
  • Page 15 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 6.6.5 Dummy Load Type: Female DB9 Relay (24V / 0,5A) for the fan control of the dummy load / NO Relay (24V / 0,5A) for the fan control of the dummy load / C Relay (24V / 0,5A) for the fan control of the dummy load / NC +15V Input...

  • Page 16: Quick Guide For Installation And Use

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 5. Quick guide for installation and use This section provides a step-by-step description of equipment installation and configuration procedure. Follow these procedures closely upon first power-on and each time any change is made to general configuration, such as when a new transmission station is added or the equipment is replaced.
  • Page 17    SCML1+1SL ( /V1, /V2 , /V3 & /V4 )  ELETTRONICA                   • Rotation: moves the cursor shows on the display; if you turn the encoder to the ...

  • Page 18: Management Firmware

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 5.2 Management Firmware The following is a representation of the main screen, available once you switch on the equipment or when after 180s the encoder is not used, and gives to the user information about the status of the system.
  • Page 19 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 5.2.1 General Setting : ON : OFF Change: Normal Func. : AUTO Mode : REMOTE Reset : OK : 10 Exit Enables (ON) or disables (OFF) the first transmitter. Enables (ON) or disables (OFF) the second transmitter. Change Forces the transmitter changeover Func.
  • Page 20 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 5.2.3 Change Setting Retry : Start :05m00s Before:02m00s TxOff :02m00s Coax :02m00s After :05m00s Exit Retry indicates the total number of retry before passing in MANUAL from 0 to 50. Start modifies the waiting time to the start from 5 to 60 min.
  • Page 21 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 5.2.5 Software Version Rel:01010000 Dat:gg/mm/aaaa Tab:SL1-Test-01 Exit shows the firmware release information. shows the release date. shows the table code programmed as default. . User Manual Rev. 2.0 - 17/02/17 / 30...

  • Page 22: Identification And Access To The Modules

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 6. Identification and Access to the Modules Identification and Access to the Modules In the following there is a brief description of different boards included in each changeover version. 6.1 SCML1+1SL/V1 Power Supply Main Board Panel Board...

  • Page 23: Scml1+1Sl/V2

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 6.2 SCML1+1SL/V2 Power Supply Main Board Panel Board Internal Coaxial Relay Synoptic Panel Board User Manual Rev. 2.0 - 17/02/17 / 30...

  • Page 24: Scml1+1Sl/V3

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 6.3 SCML1+1SL/V3 Power Supply Main Board Panel Board DB25 External Relay Interface Synoptic Panel Board User Manual / 30 Rev. 2.0 - 17/02/17...

  • Page 25: Scml1+1Sl/V4

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 6.4 SCML1+1SL/V4 Power Supply Main Board Panel Board DB9 External Relay Interface Synoptic Panel Board User Manual Rev. 2.0 - 17/02/17 / 30...

  • Page 26: Configurations

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA Date: 15/12/2006 7. Configurations R.V.R. Elettronica S.p.A. Page: CAPITOLATO SOFTWARE This section provides a description about the typical configurations and about the firmware of the equipment. In the following figure is represented the dip-switches necessary to configurate DIP-SWITCH di configurazione STAZIONE the SCML1+1SL in case of change in the system configuration.
  • Page 27 Gold & Foldback setting TX 1 and 2 SW12 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) SW13 ELETTRONICA SW14 3.3.2 Configurazioni Tex e Blues GOLD con PJ (Configurazione 2) (Configuration Type 2) TX setting Gold & Foldback setting TX 1 and 2 SW12 SW13 SW14...

  • Page 28: Typical Configuration With Exciters Of Ptx Family

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) Date: 15/12/2006 R.V.R. Elettronica S.p.A. ELETTRONICA Page: CAPITOLATO SOFTWARE Date: 15/12/2006 R.V.R. Elettronica S.p.A. 7.2 Typical Configuration with Exciters of PTX family Page: 3.3.4 Configurazioni PTX e DDS 1+1 (Configurazione 4) CAPITOLATO SOFTWARE 3.3.4 Configurazioni PTX e DDS 1+1 (Configurazione 4) (Configuration Type 4)

  • Page 29: Typical Configuration With Mixed Exciters

    Date: 15/12/2006 R.V.R. Elettronica S.p.A. Page: SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) CAPITOLATO SOFTWARE ELETTRONICA 3.3.6 Configurazioni PTX e DDS GOLD con HC (Configurazione 6) (Configuration Type 6) TX setting Gold & Foldback setting TX 1 and 2 SW12 SW13 SW14...

  • Page 30: Typical Configuration With Transmitting Systems

    SW12 SW13 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) SW14 ELETTRONICA 3.3.8 Configurazioni Tex o Blues + PTX o DDS (Configurazione 8) (Configuration Type 8) TX setting Gold & Foldback setting TX 1 and 2 SW12 SW13 SW14 Date: 15/12/2006 R.V.R.

  • Page 31: Configurations Of Dip-Switch For \V1 And \V4 Versions

    SW14 Changeover SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 3.3.10 Configurazioni TX RVR PTX o DDS 1+1 (Configurazione 10) (Configuration Type 10) TX setting Gold & Foldback setting TX 1 and 2 SW12 SW13 SW14 Changeover Figure 7.11: 1+1 TX system typical configuration for PTX LCD or DDS and PJ-LCD or HC-LCD 7.5 Configurations of dip-switch for \V1 and \V4 versions Figure 7.12: configurations of dip switch SW1 and SW2 for /V1 and /V4 versions /V1 Version...

  • Page 32: Configurations Of Jumpers For \V3 Versions

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 7.6 Configurations of jumpers for \V3 versions Figure 7.13: configurations of jumper JP2 and JP3 for /V3 version BN512690 BN640075 BN941912 JP2 1-2 / 5-6 / 9-10 / 13-14 / 17-18 JP2 3-4 / 7-8 / 11-12 / 15-16 / 21-22 / 19-20 / 23-24...

  • Page 33: Tc/Ts Electromechanical Interface

    SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA 8. TC/TS Electromechanical Interface In the following, there is a brief and schematic description in case you want to connect the I/O connector to external devices to use telecontrol (TC) and telesignalling (TS) functionality.
  • Page 34 SCML1+1SL ( /V1, /V2 , /V3 & /V4 ) ELETTRONICA This page was intentionally left blank User Manual / 30 Rev. 2.0 - 17/02/17...
  • Page 35 ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
  • Page 36 ISO 9001:2000 certified since 2000 R.V.R Elettronica S.p.A. Via del Fonditore, 2 / 2c Zona Industriale Roveri · 40138 Bologna · Italy Phone: +39 051 6010506 · Fax: +39 051 6011104 e-mail: info@rvr.it ·web: http://www.rvr.it The RVR Logo, and others referenced RVR products and services are trademarks of RVR Elettronica S.p.A. in Italy, other countries or both. RVR ® 1998 all rights reserved. All other trademarks, trade names or logos used are property of their respective owners.

This manual is also suitable for:

Scml1+1sl/v1Scml1+1sl/v3Scml1+1sl/v2Scml1+1sl/v4
