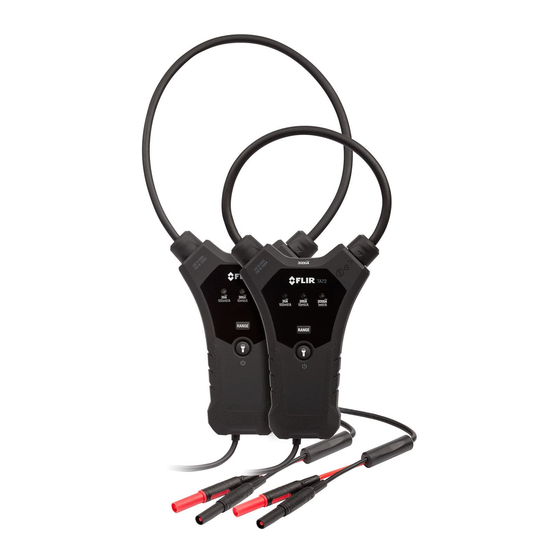

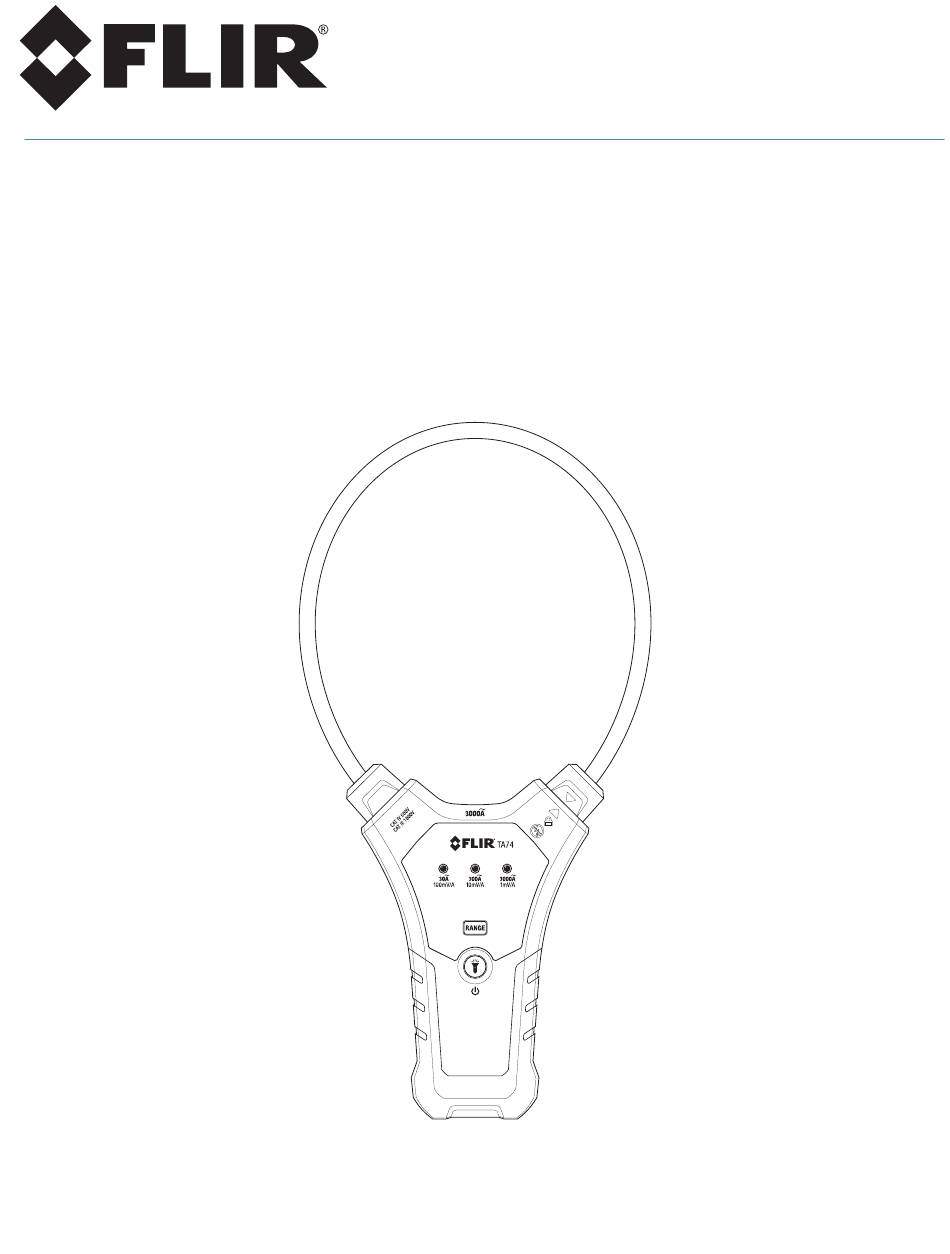

- Page 1 GETTING STARTED FLIR MODEL TA72 and MODEL TA74 UNIVERSAL FLEX CURRENT PROBE ACCESSORY ...
- Page 2 TA72_TA74 ‐ GETTING STARTED ‐ USER GUIDE LOCATION: The detailed User Guide is located in the product packaging and on the support.flir.com web site (download tab). Please read the entire User Guide to gain a thorough understanding of the meter before use. Register for Extended Warranty and Product Updates at www.flir.com/testwarranty Quick Overview Press and hold to power ON or OFF. The meter is powered by two 1.5V ‘AAA’ batteries (rear compartment); replace when meter does not power ON. The meter will beep as it switches ON and one of the three Range indicators will be lit. Use the Range button to change the range. Meter switches OFF automatically after 10 minutess of inactivity. Current Measurements are covered on the next page. For the diagram at right, see the descriptions below: 1. Flexible Current Clamp Coil 2. Work Lights 3. Clamp lock mechanism 4. Range indicators 5. RANGE select button (press to manually range) 6. Power and Work Lights button 7. Test lead cable connection 8. Test leads (connect to DMM set to Volts AC range) When powered, press ...
- Page 3 DMM reading x10 Clamp set to the 30A range: the clamp output will be 3000mV (3.0 VAC) 300A (10mV/1A) 30.0~300.0A DMM reading x100 DMM will display 3.000 in the V AC mode (x10 = 30A) Clamp set to the 300A range: the clamp output will be 300mV (0.3VAC) 3000A (1mV/1A) 300.0~3000A DMM reading x1000 DMM will display 0.300 in the V AC mode (x100 = 30A) Example 2: 60A Measurement Example 3: 600A Measurement With the DMM set to the AC Voltage mode: With the DMM to the AC Voltage mode: Clamp set to the 300A range: the clamp output will be 600mV (0.6VAC); Clamp set to the 300A range: the clamp output will reach 4500mV (4.5 VAC); this is an over range (overload) condition. Select the higher 3000A DMM will display 0.600 in the V AC mode (x100 = 60A) range: the clamp output will be 600mV (0.6VAC); DMM will display 0.600 Clamp set to the 3000A range: the clamp output will be 60mV (0.06VAC) in the V AC mode (x1000 = 600A) DMM will display 0.060 in the V AC mode (x1000 = 60A) *Multiply DMM reading (in VAC mode) by 10, 100, or 1000, as shown above, to determine the amount of current measured by the clamp Copyright © 2015 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form. www.flir.com FLIR TA72_TA74 ‐ GETTING STARTED Document Identifier: TA72_TA74‐QS‐mul_AA ...
- Page 4 Corporate Headquarters FLIR Systems, Inc. 2770 SW Parkway Avenue Wilsonville, OR 97070 USA Telephone: +1 503‐498‐3547 Customer Support Technical Support Website http://support.flir.com Technical Support Email TMSupport@flir.com Service and Repair Email Repair@flir.com Customer Support Telephone +1 855‐499‐3662 (toll free) Certificate of Conformity and ISO‐9001 Quality Management System FLIR Commercial Systems, Inc., an ISO 9001:2008 certified company, hereby certify that our instruments meet or exceed the specifications stated in the user manuals. This instrument was produced under the stringent guidelines of FLIR Commercial System’s certified ISO‐9001 Quality Management System from design to delivery. All instruments are calibrated and inspected to meet the stated specifications. FLIR Commercial Systems, Inc. inspects its incoming shipments using an approved sampling plan with an Acceptable Quality Level (AQL). All incoming inspections are performed using test equipment that is traceable to National Standards. Our ISO‐9001 Quality Management System extends to aftermarket support where tested quality procedures are applied to customer support, service, calibration and repair processes. This instrument will provide years of reliable service when used in accordance with the instructions provided in the User Guide. To have this device certified please contact your local service center. Quality Assurance Management Publication Identification No.: TA72_TA74‐QS‐mul ...
