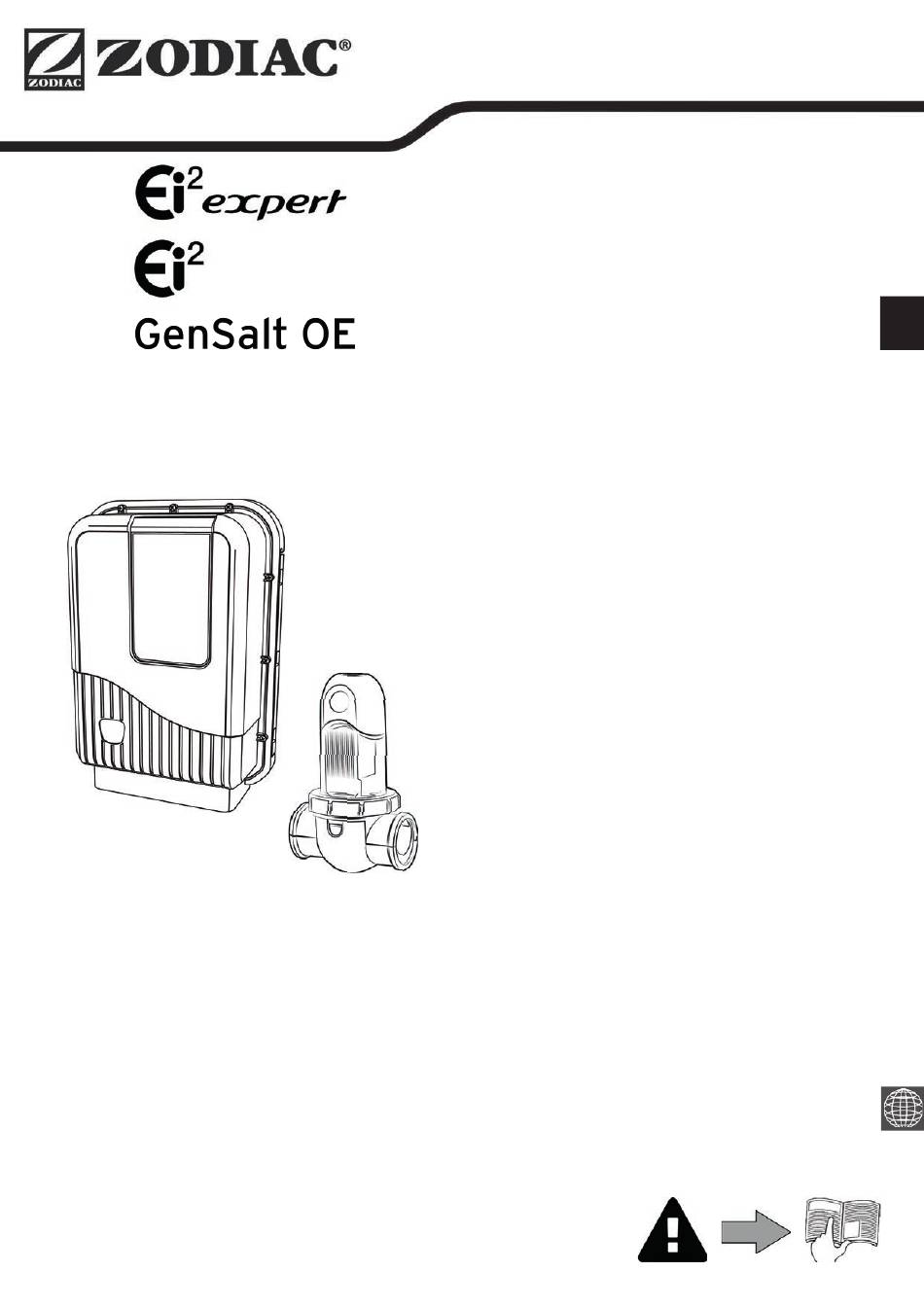

- Page 1 Instructi ons for installati on and use - English Salt water chlorinator Translati on of the original instructi ons in french More documents on: www.zodiac.com H0470400.C - 2018/02...
- Page 3 • Do not spray insecti cide or any other chemical (infl ammable or non-infl ammable) in the directi on of the appliance, as this may damage the body and cause a fi re. • Zodiac® heat pump, fi ltrati on pump and fi lter appliances are compati ble with the most commonly used types of pool water treatment systems.
-
Page 4: Table Of Contents
Save these instructi ons for future reference for service and maintenance. • It is prohibited to distribute or modify this document in any way without authorisati on from Zodiac®. • Zodiac® is constantly developing its products to improve their quality; therefore, the informati on contained •... -
Page 5: Information Before Installation
1. Information before installation 1.1 Contents Ei² - GenSalt OE Control box Cell Installation kit Ei² Expert Control box Cell Installation kit Fixture collar kit 1.2 Technical specifications Power supply voltage 230 Vac-50 Hz Electric power Max. 140 W Protection index IPX5 Box size (l x h x d) 28.5 x 40.5 x 12.5 cm... -
Page 6: Installati On
2. Installati on 2.1 Preparing the pool: water balance These appliances are designed to disinfect pool water using its salt water chlorinati on functi on. It is essenti al that the pool water balance and salinity are controlled and adjusted before the appliance is installed. Making sure that those parameters are correct from the very start will reduce the likelihood of encountering problems on the first days of operati on or during the season the pool is in use. -
Page 7: Installing The Cell
2.3 Installing the cell • The cell must be installed on the piping aft er the fi ltering ( ), aft er any measurement sensors, and aft er eventual heati ng systems. Ei² Expert Ei² - GenSalt OE • The cell must be installed on a horizontal pipe to ensure an essenti ally horizontal fl ow of water through it, with no more than a 30 deg angle/slope. -
Page 8: Installing The Fl Ow Controller (Ei² Expert Only)
• The cell must always be the last element placed on the pool return pipe (see diagram). • It is always recommended to install the cell on a by-pass. This assembly is MANDATORY if the fl ow is in excess of 18 m³/hour to avoid load loss. •... -
Page 9: Use
2.5.2 Connecti on to an electric pool cover (Ei² Expert only) If the pool is fi tt ed with an electric roll-on electric pool cover, it can be connected to the Ei² Expert chlorinator using a dry contact so that the latt er automati cally adapts its chlorine producti on when the electric pool cover is closed (see ""). •... -
Page 10: Descripti On Of The Ei² Expert User Interface
3.2 Descripti on of the Ei² Expert user interface - Exit the user menu or the internal setti ngs menu. - Deacti vate Boost mode or Low mode. - From the home screen: increase or decrease in chlorine producti on. - In the user menu: value changes when a choice is proposed (fl... - Page 11 3.2.4 Setti ng the ti me The Ei² Expert chlorinator is fi tt ed with an internal memory. When the device is fi rst switched on it is important to leave it powered on conti nuously for at least 24 hours in order to initi ally charge the accumulator (permanent separate power supply or fi...
- Page 12 3.2.5.a Mode selecti on: "SUMMER" or "WINTER" • Press 4 ti mes to set the clock. "SUM" starts to fl ash. • Use the butt ons to choose "SUM" or "WIN" mode, then press the butt on to return the home screen.
- Page 13 3.2.6.a Setti ng the language By default the Ei² Expert chlorinator is set to display in French. 13 languages are available: French, English, Spanish, Italian, Swedish, German, Portuguese, Dutch, Afrikaans, Czech, Hungarian, Slovakian and Turkish. • From the home screen, press the butt ons for 5 seconds.
-
Page 14: Maintenance
4. Maintenance 4.1 Washing the pool fi lter (backwash) L’appareil doit impérati vement être éteint lors des procédures de lavage de fi ltre. When the device is on (fi ltrati on on), press the butt on for 5 seconds to switch it off . Aft er cleaning the fi lter, switch the device on again by pressing the butt on (short press). -
Page 15: Troubleshooti Ng
• Replace if necessary ("CR2032"-type 3 V accumulator), see "2.5.2 Connecti on to • The appliance no longer saves an electric pool cover (Ei2 Expert only)" to All the the setti ngs (producti on level, open and close the box. -
Page 16: Product Conformity
6. Product conformity This appliance has been designed and manufactured to comply with the applicable requirements of the following stand- ards : EN6000-6-1: 2006 EN6000-6-3: 2007 IEC 60335-1 Relative to which it is compliant. The product has been tested under the intended normal conditions of use. - Page 17 Modèle appareil Appliance model Numéro de série Serial number Trouvez plus d’informati ons et enregistrez votre produit sur More informati ons and register you product on www.zodiac.com ZODIAC® is a registered trademark of Zodiac Internati onal, S.A.S.U., used under license.
