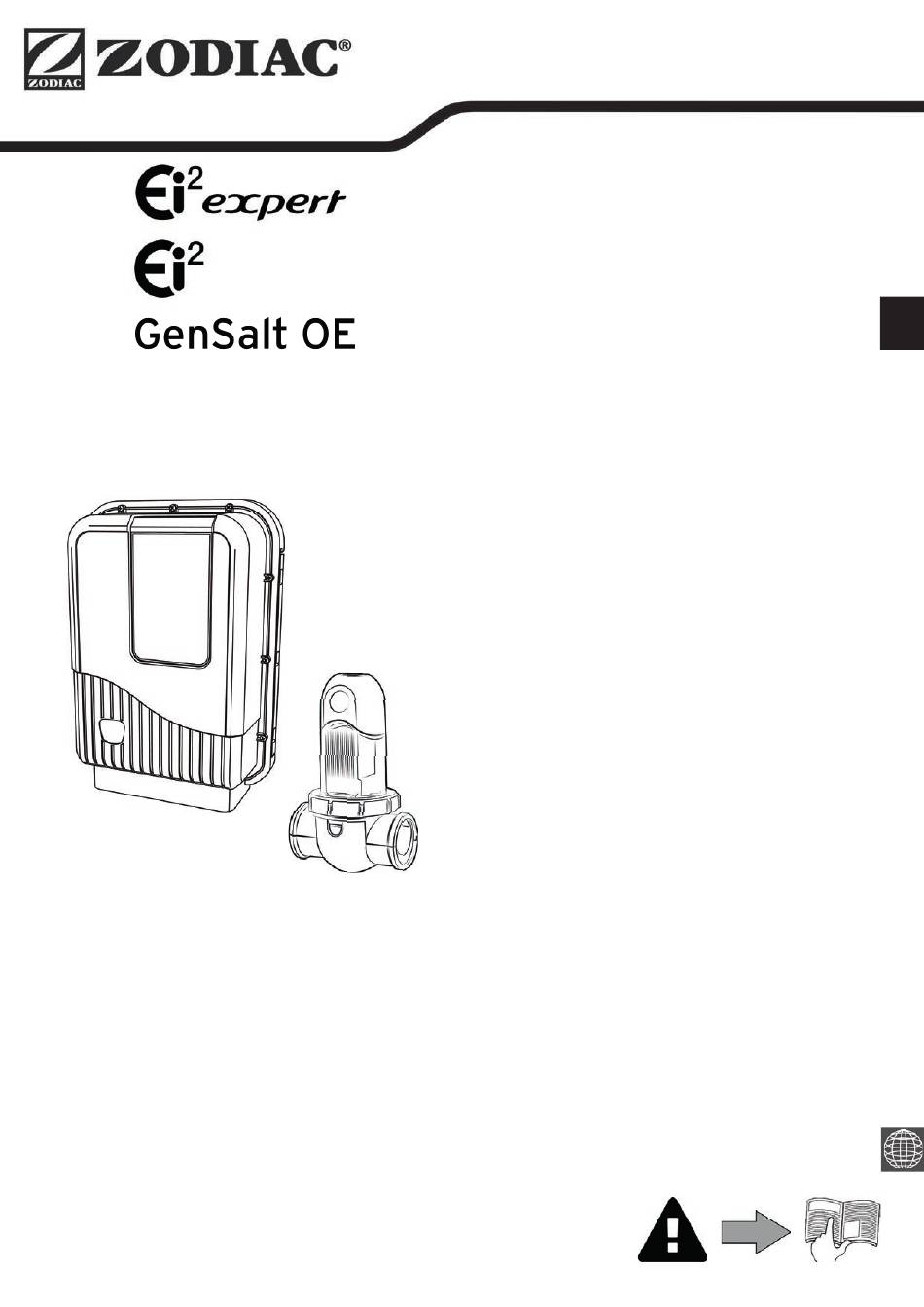

- Page 1 Instructi ons for installati on and use - English Salt water chlorinator Translati on of the original instructi ons in french More documents on: www.zodiac.com H0470400.E - 2019/10...
- Page 3 WARNINGS GENERAL WARNINGS • Failure to respect the warnings may cause serious damage to the pool equipment or cause serious injury, even death. • Only a person qualifi ed in the technical fi elds concerned (electricity, hydraulics or refrigerati on) is authorised to perform this procedure.
- Page 4 WARNINGS ASSOCIATED WITH ELECTRICAL APPLIANCES • The power supply to the appliance must be protected by a dedicated 30 mA residual current device, complying with the standards and regulations in force in the country in which it is installed. • Do not use any extension lead when connecting the appliance; plug the appliance directly into a suitable wall socket.
-
Page 5: Table Of Contents
The distributi on or modifi cati on of this document in any way is prohibited, without prior authorisati on • from Zodiac®. Zodiac® is constantly developing its products to improve their quality. The informati on contained herein • may therefore be modifi ed without noti ce. -
Page 6: Information Before Installing
1. Information before installing 1.1 Contents Ei² - GenSalt OE Control box Cell Installation kit Ei² Expert Fixture collar Control box Cell Installation kit 1.2 Technical specifications Power supply voltage 230 Vac-50 Hz Electric power Max. 140 W Protection rating IPX5 Box size (l x h x d) 28.5 x 40.5 x 12.5 cm... -
Page 7: Installati On
2. Installati on 2.1 Preparing the pool: water balance These appliances are designed to disinfect pool water using the salt water chlorinati on functi on. It is essenti al that the water balance and salinity (4 g/L) are checked and adjusted before installing the appliance. Making sure that the water balance and salinity are correct from the very start will reduce the likelihood of encountering problems on the fi rst days of operati on or during the season the pool is in use. -
Page 8: Installing The Cell
2.3 Installing the cell • The cell must be installed on the piping aft er the fi ltrati on system ( ), aft er any measurement sensors, and aft er any heati ng systems. Ei² Expert Ei² - GenSalt OE •... -
Page 9: Installing The Fl Ow Switch (Ei² Expert Only)
• The cell must always be the last element placed on the pool return pipe (see diagram). • It is always recommended to install the cell on a by-pass. This assembly is MANDATORY if the fl ow is in excess of 18 m³/hour to avoid head loss. •... - Page 10 2.5.2 Connecti on to an electric roller shutt er If the pool is fi tt ed with an electric roller shutt er, it can be connected to the chlorinator using a dry contact so that the latt er automati cally adapts its chlorine producti on when the shutt er is closed (see “3.2.3 “LOW” mode: chlorine producti on reduced to 10 % if the pool is covered”).
-
Page 11: Use
3. Use 3.1 Descripti on of the Ei² - GenSalt OE user interface To increase or reduce chlorine producti on by pressing and releasing: 100% - To acti vate/deacti vate chlorine producti on by pressing and releasing. - To switch off the appliance by pressing and holding for 5 seconds. - To switch on the appliance by pressing and releasing. - Page 12 3.2.1 Chlorine producti on acti vated When chlorine producti on starts, the "Start..." message is displayed on screen for about 6 seconds. "CHLORINATION" is then displayed, indicati ng that the appliance is producing chlorine. 3.2.2 "BOOST" mode: chlorine producti on increased to 100 % for 24 h In certain cases the pool may need higher than normal chlorinati on (stormy weather, high number of bathers, etc.).
- Page 13 3.2.5 "SUMMER" and "WINTER" modes and setti ng the "Timers" "Timer" programming is used to defi ne the appliance operati ng ti mes within the operati ng ti mes of the fi ltering system. The daily operati ng ti mes must be suffi cient to correctly treat the water. Ei² Expert proposes default setti ngs for Timers 1 and 2.
- Page 14 3.2.6 "Internal setti ngs" menu Ei² Expert has an "Internal setti ngs" menu to change and/or view the following operati ng parameters: • Language • Polarity inversion cycles • Operati ng hours counter To access this menu, press the butt ons simultaneously for 5 seconds. EMEA: Region in which the appliance was sold and is used (not modifi able) FR French: Language used (modifi able, default setti ng = French) Cyc=5h: Polarity inversion cycle (modifi able, default setti ng = 5 hours)
-
Page 15: Maintenance
3.2.6.c Operati ng hours counter Ei² Expert can count its total operati ng hours (= chlorine producti on ti me, displayed in days). This informati on may be useful to determine the age of the electrode. The value is provided for informati on only and may be modifi ed. -
Page 16: Troubleshooti Ng
