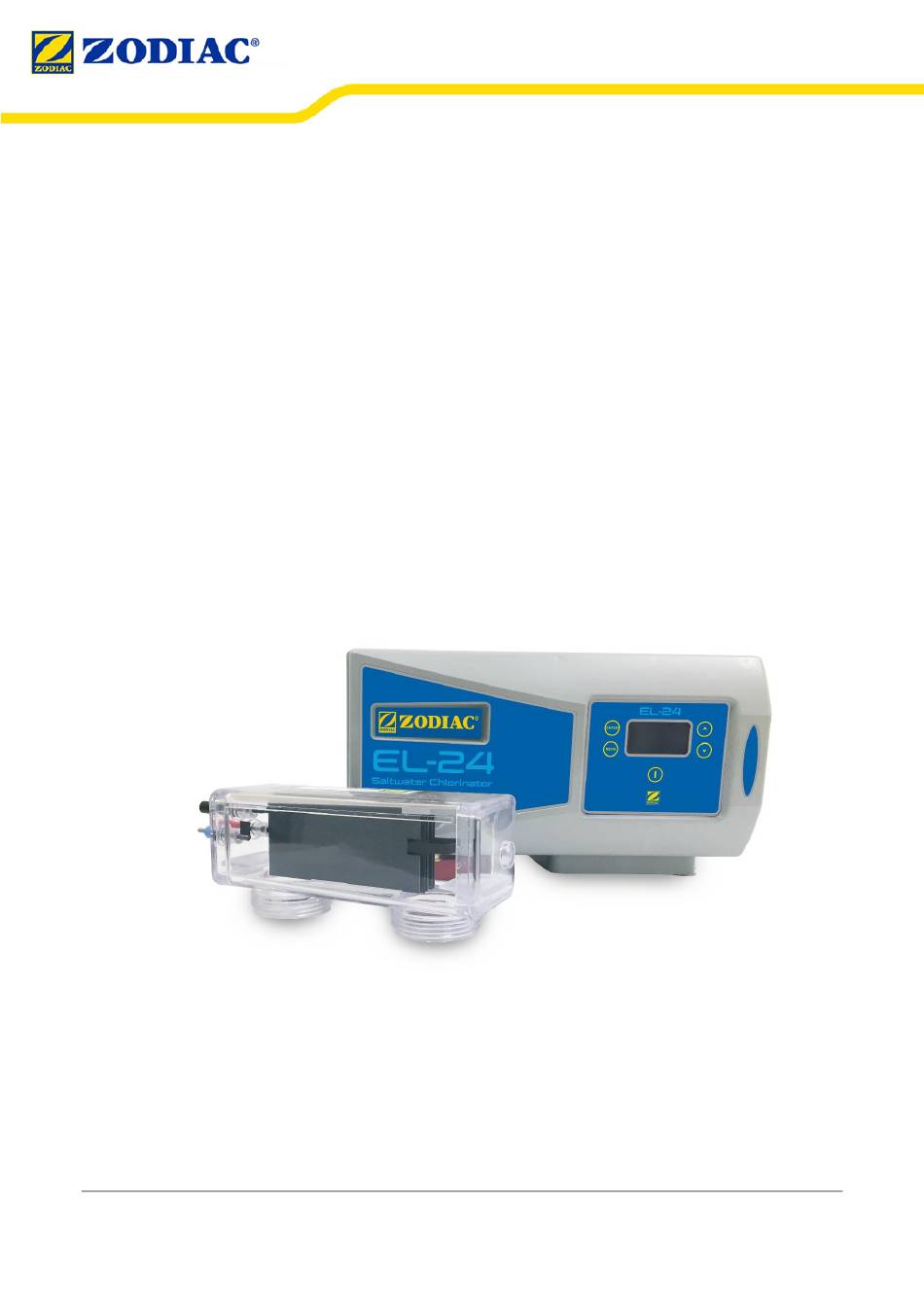

- Page 1 EL-24 INSTALLATION AND OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
Setting The Right Chlorine output And Filtration Time ........7 General Operation/Pool Chemistry ..............7 Setting the right Chlorine Output and Filtration Time......... 7 Chlorinator Maintenance and Troubleshooting ..........8 Maintenance Your Chlorinator……………………………………………………………………………………………………… …………………9 Troubleshooting ....................10 Warranty…....................... 11 INST 473 ZODIAC EL24 Salt Chlorinator V10.18... -
Page 3: General Overview
Please ensure that young children are supervised to ensure that they do not play with the pump or chlorinator. To avoid a safety hazard, the supply cord if damaged, must only be replaced by Zodiac, or its service agent or a suitably qualified person. -
Page 4: Cell Installation
Once the Cell is located, connect the black multi- core cable to the cell. All terminal posts and cell cable connectors are colour coded, ensure the correct colours are connected. Ensure that the connectors are seated firmly and correctly. INST 473 ZODIAC EL24 Salt Chlorinator V10.18... -
Page 5: Pool Preparation
(d) Repeat for TIMER 2 Programming Recommendations Zodiac recommend that you use two timers, one for the morning and one for the evening and typically for periods of 2-5 hours for each (depending on pool size and season). Your chlorinator is most effective if running in the early morning or evening when it is cooler (strong sunlight consumes more chlorine). -
Page 6: Setting The Right Chlorine Output And Filtration Time
SETTING THE RIGHT CHLORINE OUTPUT AND FILTRATION TIME Your EL-24 Chlorinator must be run every day to ensure that your pool is correctly sanitised. As the sun dissipates chlorine, running times are higher in the summer compared to the winter. Zodiac recommend that you initially run you chlorinator at maximum output for the first few days, then adjust as required. -
Page 7: Chlorinator Maintenance And Troubleshooting
A typical pool of around 50,000 litres requires 300kg of salt to initially set-up the pool to 6,000ppm. A low salt level warning is indicated on your EL-24 Chlorinator if the salt level drops. If Low Salt is indicated, check again in 24 hours and then if it is still indicated, add two 25kg bags of salt to the shallow end of your pool. - Page 8 WARNING: Follow safety instructions provided with the Hydrochloric acid or cleaning solution. When handling Hydrochloric Acid, the use of eye protection, mask and gloves are highly recommended. Extreme caution should be taken whenever handling Hydrochloric Acid or Cell Cleaning Solution. INST 473 ZODIAC EL24 Salt Chlorinator V10.18...
-
Page 9: Maintenance Of Your
Important note: Regular maintenance is important to ensure long life and trouble free performance of your pool equipment. If unable to perform the maintenance yourself, contact your local Zodiac office who will arrange a trained service technician to perform the maintenance for you. -
Page 10: Troubleshooting
TROUBLESHOOTING Your EL-24 Chlorinator has diagnostic and safety features to make it easy to maintain your system. The table below summarises potential faults and their causes. Fault Indication Potential Cause Remedy No Flow Pump turned off/disconnected or Ensure valves/pump on... - Page 11 CELL CABLE 703012 NOT SHOWN POWER CORD 350029 NOT SHOWN EARTH WIRE 703011 NOT SHOWN ACTIVE NEUTRAL WIRES 78771 NOT SHOWN LABEL- EARTH LABEL28 NOT SHOWN RIVETS HSP171 NOT SHOWN EARTH TAB 78750 INST 473 ZODIAC EL24 Salt Chlorinator V10.18...
-
Page 12: Warranty
Record your Equipment details here for quick reference: Model No.: ____________________________ Serial No.: ____________________________ Zodiac is a registered trademark of Zodiac Group Australia Pty Ltd ABN 87 002 641 965 ZODIAC CUSTOMER SERVICE CENTRE Zodiac Group Australia 219 Woodpark Rd, Smithfield, NSW.
