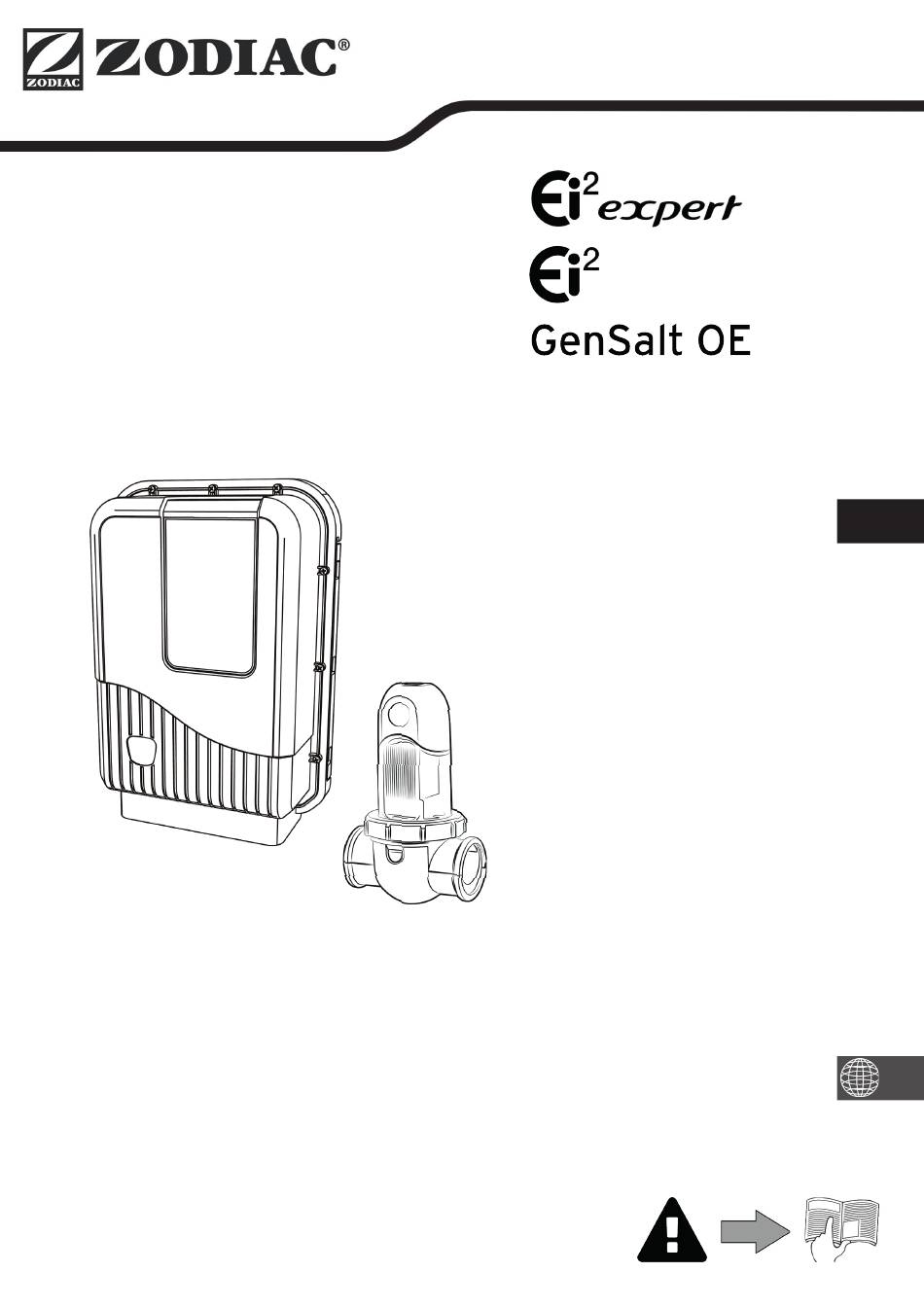

  • Page 1 Instructions for installation and use English Montage- und Gebrauchsanleitung Deutsch Installatie en gebruikshandleiding Nederlands Manual de instalación y de uso Espanõl Manual de instalação e utilização Português Manuale di installazione e di uso Italiano More documents on: www.zodiac-poolcare.com H0470400.B - 2016/10...
  • Page 2 • Zodiac® Heat pump, filtration pump and filter appliances are compatible with most commonly used pool water treatment systems. • For heat pump appliances or dehumidifiers, do not touch the fan or insert a rod or your fingers through the grating when the appliance is in operation.

  • Page 3: Table Of Contents

    Save these instructions for future reference for service and maintenance. • It is prohibited to distribute or modify this document in any way without authorisation from Zodiac®. • Zodiac® is constantly developing its products to improve their quality; therefore, the information contained •...

  • Page 4: Information Before Installation

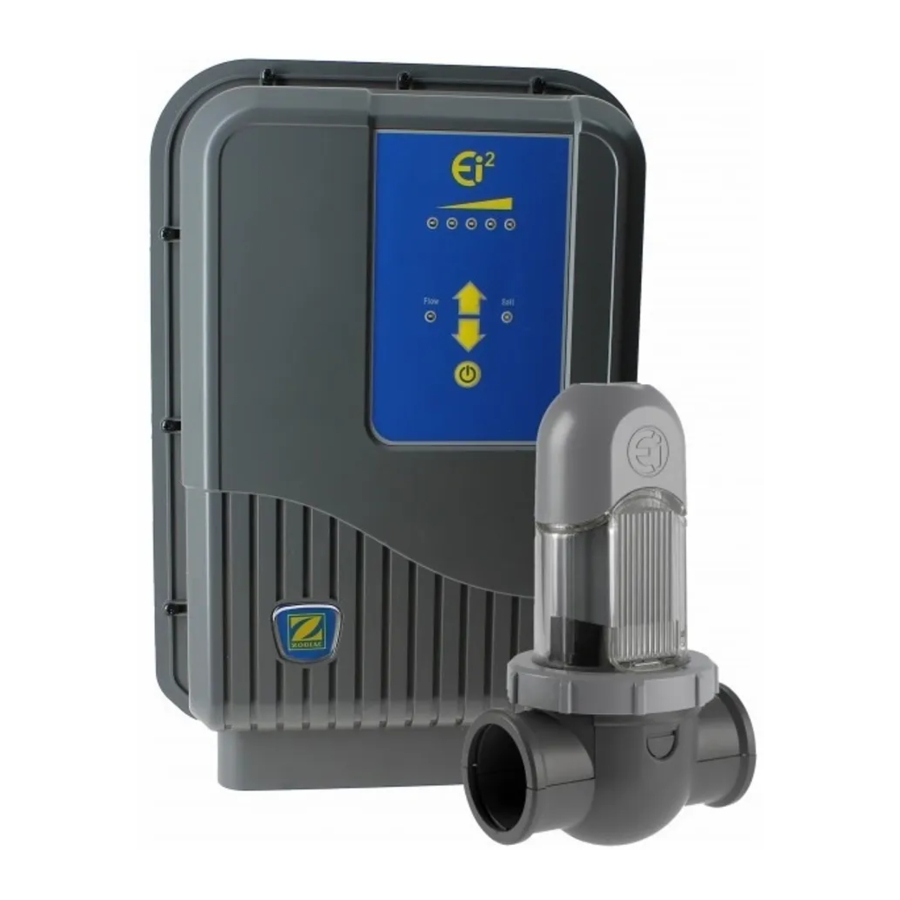

    1. Information before installation 1.1 Contents Ei² - GenSalt OE Control box Cell Installation kit Ei² Expert Control box Cell Installation kit Fixture collar kit 1.2 Technical specifications Power supply voltage 230 Vac-50 Hz Electric power Max. 140 W Protection index IPX5 Box size (l x h x d) 28.5 x 40.5 x 12.5 cm...

  • Page 5: Installation

    2. Installation 2.1 Preparing the pool: water balance These appliances are designed to disinfect pool water using its salt water chlorination function. It is essential that the pool water balance and salinity are controlled and adjusted before the appliance is installed. Making sure that those parameters are correct from the very start will reduce the likelihood of encountering problems on the first days of operation or during the season the pool is in use.

  • Page 6: Installing The Flow Controller (Ei² Expert Only)

    • The cell must be installed on the piping after the filtering, after any measurement sensors, and after eventual heating systems. • The cell must be installed on a horizontal pipe to ensure an essentially horizontal flow of water through it, with no more than a 30 deg angle/slope.

  • Page 7: Electric Connections

    2.5 Electric connections 2.5.1 Connecting the control box The salt water chlorinator can be connected in compliance with the applicable standards in the country of installation. Ei² - GenSalt OE : • Mandatory connection: directly interlocked with the pool filtration pump (the appliance is only supplied with power when the pool filtration pump is operating).

  • Page 8: Use

    • The Ei² Expert chlorinator is compatible with several different types of electric pool cover. However, certain systems may not be compatible. In this case, activate "Low" mode manually from the chlorinator control panel (see ""). • Refer to the electric pool cover manufacturer's installation manual. •...
  • Page 9 3.2.1 Chlorine production activated When chlorine production starts, the "Start..." message is displayed on screen for about 6 seconds. "CHLORINATION" is then displayed, indicating that the device is producing chlorine. 3.2.2 "Boost" mode: chlorine production increased to 100 % for 24 h In certain cases the pool may need higher than normal chlorination (stormy weather, high number of bathers, etc.).
  • Page 10 3.2.5 "Summer" and "Winter" modes and setting the "Timers" "Timer" programming is used to define the device operating times within the filtering system operation times. The daily operating times must be sufficient to correctly treat the water. Ei² Expert proposes default settings of Timers 1 and 2.
  • Page 11 3.2.6 "Internal settings" menu Ei² Expert has an "Internal settings" menu to change and/or view the following operating parameters: • Language • Polarity inversion cycles • Operating hours counter To access this menu, press the buttons simultaneously for 5 seconds. EMEA: Device sale and use region (not modifiable) FR French: Language used (modifiable, by default = French) Cyc=5h: Polarity inversion cycle (modifiable, by default = 5 h)

  • Page 12: Maintenance

    3.2.6.c Operating hours counter Ei² Expert can count its total operating hours (= chlorine production time, affiché en jours). This information may be useful to determine the electrode age. The value is provided for information only and may be modified. •...

  • Page 13: Troubleshooting

    5. Troubleshooting Ei² Ei²Expert Possible causes Solutions GenSalt OE INVERSION The self-cleaning cycle is automatic; • Wait for about 10 minutes and chlorine this message is not an error code production will resume automatically at but an information message. the previously set level. «FLASH»...
  • Page 14 Votre revendeur / your retailer Pour plus de renseignements, merci de contacter votre revendeur. For further information, please contact your retailer. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
