3.3 Disassemble trim assembly (figure 11)
3.3.1 The trim assembly consists out of 3 parts: the stem
with bellows (11.1), the extension (11.2) and the plug
(11.3). All three components can be disassembled and
replaced individually. These parts are secured with pins
(11.4). To remove the pins carefully drive them out by
a suitable tool. When replacing one or more parts of
the assembly always use new pins (see spare parts
table) and make sure that they are in place and secure.
6
Kämmer Series 341000 FCD KMENIM4104-01 03/18

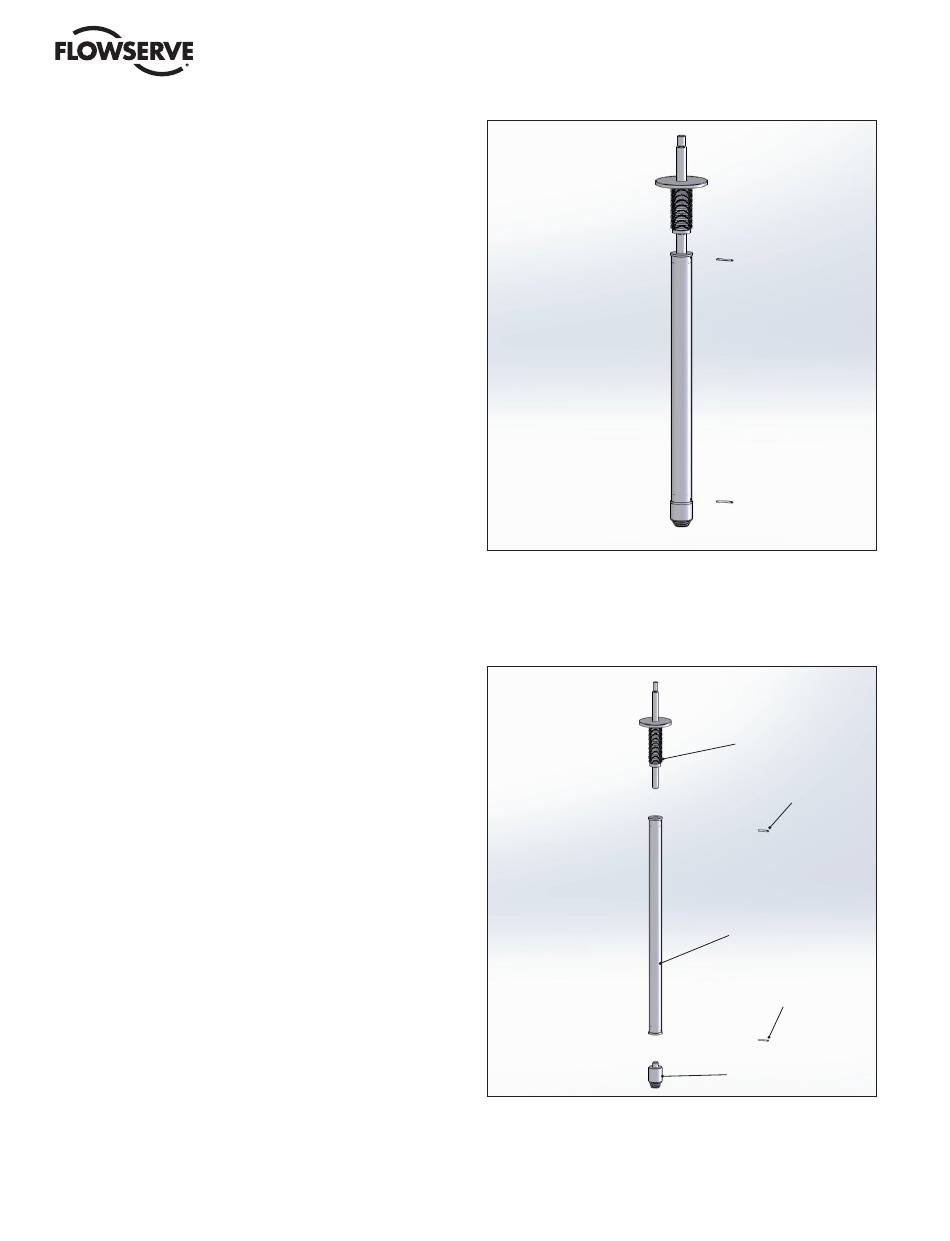

Figure 10: Trim Assembly
Figure 11: Trim Parts
11.1
11.4
11.2
11.4
11.3
