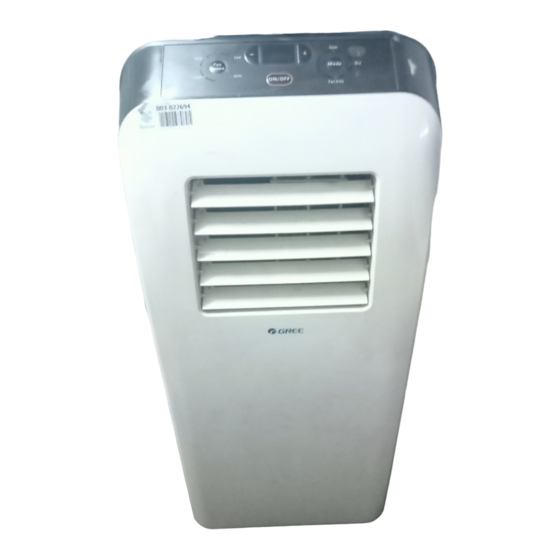

Page 1 Change for Life Portable Air Conditioner Owner's Manual Residential Air Conditioners MODEL: GPC08AI-K3NNC6A GPC10AI-K3NNC6A Thank you for choosing Residential Air Conditioners, please read this owner’s manual carefully before operation and retain it for future reference.
Page 2: Table Of Contents
CONTENTS 1 PRECAUTIONS LOCATION INCLUDE STRUCTURE INSTALLATION OF THE POWER CORD HOOK INSTALLATION OF DRAINAGE HOSE DRAINAGE METHOD ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE CONTROL PANEL DISPLAY & OPERATING INSTRUCTIONS HOW TO USE THE REMOTE CONTROL OPERATION OF WIRELESS REMOTE CONTROL MAINTENANCE MALFUNCTION ANALYSIS SAFE NOTE AND NOTICE...
Page 3: Precautions
PRECAUTIONS WARNINGS FOR USE • Install the air conditioner in accordance with the installation instructions in the latter section of this manual. • Do not modify any part of this product. • Do not insert anything into any part of the unit. •...
Page 4 PRECAUTIONS USAGE CAUTIONS • Ventilate the room periodically during use, especially if using gas appliances. • Be sure to turn the unit off and disconnect the power supply cord before performing any maintenance or cleaning. • Do not splash or pour water directly onto the unit. Water can cause electrical shock or equipment damage.
Page 5: Location
PRECAUTIONS OPERATING CONDITIONS • The air conditi oner must be operated with in the temperature range indicated below. MODE Room temperature Cool 16°C ~ 35°C • A built-in safety device may cut off operation if the temperature exceeds these limits. ENERGY EFFICIENCY TIPS •...
Page 6: Include
INCLUDE PARTS INCLUDED Adapter A Adapter B Flexible Exhaust Hose Window Exhaust Adapter Drainage pipe Clamp Pipe hoop Screw Rubber plug Battery(2) Clamp(2) Manual Remote control (AAA.1.5V)
Page 7: Structure
STRUCTURE Front 1, Control panel and display lamp 2, Remote control signal receiver window 3, Handel 4, Remote controller box 5, Air outlet 6, Vertical louvers 7, Horizontal louvers 8, Wheel 9, Air inlet 10, Grille 11, Air filter 12, Air outlet 13, Air inlet 14, Power cord clamp 15, Power cord...
Page 8: Installation Of The Power Cord Hook
INSTALLATION OF THE POWER CORD HOOK • Attach the clamps to the back of air conditioner with the screws. clamp screw • Wind the power cord round the power cord hook.
Page 9: Installation Of Drainage Hose
INSTALLATION OF DRAINAGE HOSE Install of drainage hose(as shown in following figure): Note: Drainage hose must be installed before using otherwise block of drain may occur and affects normal run of unit. 1. Remove drain cap from drain port. Drain port Drain cap 2.
Page 10: Drainage Method
DRAINAGE METHOD When COOL or DRY is running, condensate will drain to water tank. When water tank is filled, Buzzer will sound 8 times, LED window show error code "H8". In this case, plug out drain hose from fixing clamp, unsecured the clip, pull out the rubber plug from the drain hose, then drain out water in tank.
Page 11: Accessories And Installation Of Heat Exhaust Hose
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE Length range of exhaust pipe should be 500mm-1500mm. ● It is recommended to use it with shortest length. When installing, exhaust pipe should be as flat as possible. ● Don't prolong the pipe or connect it with other exhaust pipe, or Correct installation is as shown in figure (When installing it on wall, height of hall should be about 40cm-100cm from floor).
Page 12 If the pipe are to be bent, please install it by considering following dimension. 55 cm 55 cm Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.) - 10 -...
Page 13: Control Panel Display & Operating Instructions
CONTROL PANEL DISPLAY & OPERATING INSTRUCTIONS CONTROL PANEL & DISPLAY COOL mode lamp LED window Temperature selection button Receiver window DRY mode lamp Cool Mode speed High Auto ON/OFF Fan only ON/OFF button FAN mode lamp MODE button FAN Speed lamp Fan speed button OPERATING INSTRUCTIONS When pressing key is valid,buzzer makes a sound,indicated lamp indicates relevant state,system will last...
Page 14: How To Use The Remote Control
HOW TO USE THE REMOTE CONTROL Point the remote control towards the units signal receiver window and press the desired button. A beep will sound when the unit receives the signal. • Make sure nothing, such as curtains, blocks the signal receiver window. •...
Page 15: Operation Of Wireless Remote Control
OPERATION OF WIRELESS REMOTE CONTROL Note: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
Page 16 OPERATION OF WIRELESS REMOTE CONTROL TIMER TIMER button By pressing this key under switch-off state, ● you may set the time for auto switch-on. The range of setting is 0.5 ~ 24 hours. The characters "T-ON" and "H" will flash for 5 seconds.
Page 17 OPERATION OF WIRELESS REMOTE CONTROL Guide for operation - General operation 1. After powered on, pressON/OFF button, the unit will start to run. 2. Press MODE button, select desired running mode, enter into the corresponding operation directly. 3. Pressing + or - button, to set the desired temperature. (It is unnecessary set the temp.
Page 18 OPERATION OF WIRELESS REMOTE CONTROL Changing batteries and notices 1. Slightly to press the place to take out the back cover of wireless remote control. (As shown in figure) 2. Take out the old batteries. (As show in figure) 3. Insert two new AAA1.5V dry batteries, and pay attention to the polarity. (As show in figure) 4.
Page 19: Maintenance
MAINTENANCE Mobile AC There are wheels at bottom of mobile air conditioner that enable the unit moves among rooms conveniently according to need. Warning Plug off power plug from socket and cut off power before any maintenance to prevent creepage occurs. If too much duct deposed on filter, performance of air conditioner will reduce, Clean air filter thus it is better to clean filter at least once 2 weeks.
Page 20: Malfunction Analysis
MALFUNCTION ANALYSIS If malfunction occur, please check the following before maintenance: Solutions Troubles Possible Causes The air conditioner doesn't The power supply is not connected well. 1. Insert the power plug tightly. start. The power plug is not inserted tightly. 2.
Page 21: Safe Note And Notice
The appliance must be positioned so that the plug is accessible. The appliance shall be installed in accordance with national wiring regulations. GPC08AI-K3NNC6A、 GPC10AI-K3NNC6A GWP: R410A (R32/125: 50/50): 1900 This appliance is not intended for use by persons (including children) with...
Page 22: After Sales Service
For disposal there are several possibilities: a) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. b) When buying a new product, the retailer will take back the old product at least free of charge.
Page 23 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 E-mail: gree@gree.com.cn www.gree.com 66166080...
