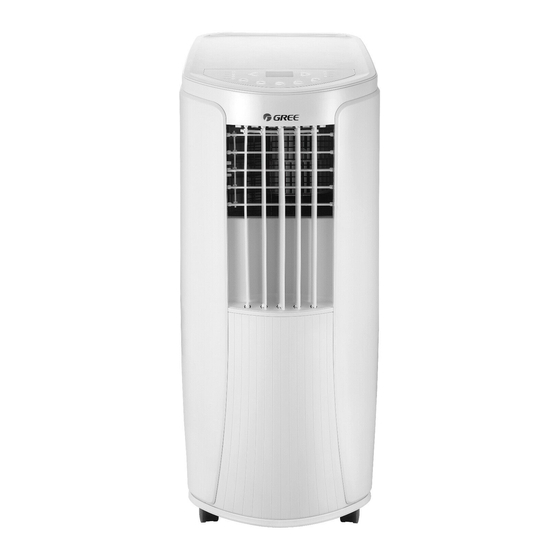

Gree GPC07AK-K5NNA1A Service Manual

Hide thumbs Also See for GPC07AK-K5NNA1A:
Table of Contents

Advertisement

Quick Links

Change for life
Service Manual
GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPC07AK-K5NNA1A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gree GPC07AK-K5NNA1A

Summary of Contents for Gree GPC07AK-K5NNA1A

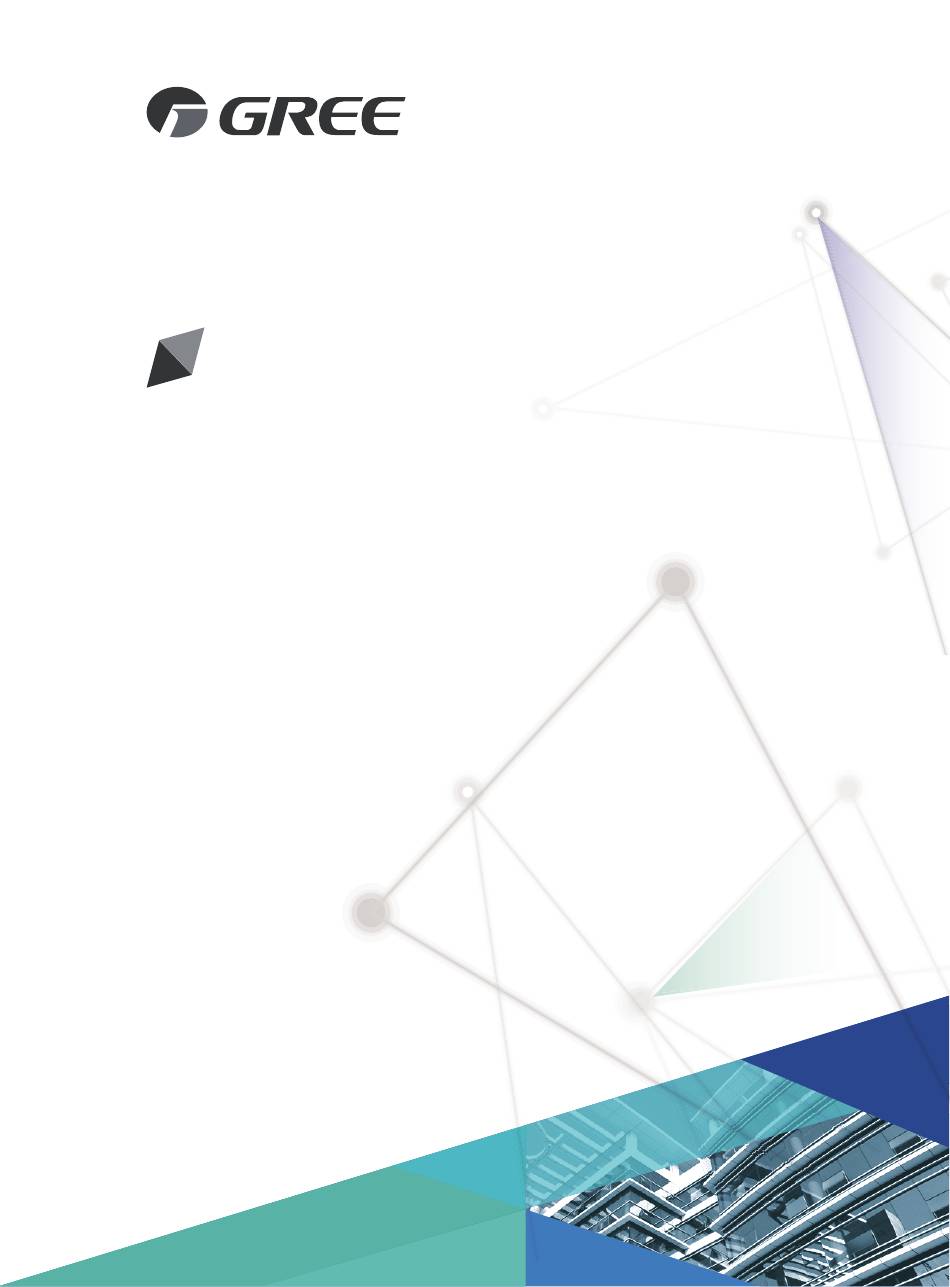

  • Page 1 Change for life Service Manual GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI...

  • Page 2: Table Of Contents

    Service Manual Table of Contents Part Ⅰ : Technical Information ............12 1. Summary ....................12 2. Specifications ..................14 3. Outline Dimension Diagram ............20 4. Refrigerant System Diagram ............23 5. Electrical Part ..................24 5.1 Wiring Diagram ..................24 5.2 PCB Printed Diagram ................
  • Page 3 Hydrocarbon INTRODUCTION ATTENTION Please read this manual carefully before installing and operating the GREE Hydrocarbon Air– Conditioner unit. Careless installation and operation could cause severe injuries to operators, workers and damage to the air-conditioner unit itself. Keep this manual in a location for easy access as it is needed for reference during installation, maintenance, service and operation of the unit.
  • Page 4 Service Manual Notices General Safety Instructions Please pay careful attention to these safety instructions, to avoid risks to people and property. Before starting work on maintenance read this manual thoroughly and pay particular attention to the relevant chapters. Regardless of further requirements of the country, in which the equipment will be installed: assembly, first start up, technical service, maintenance and repair and as well as dismantling and disposal have to be carried out by authorised personnel only.
  • Page 5 Working on components with safety-relevant functions jeopardise the safe operation of the GREE (OEM) installation. In case it is necessary to replace components, only use approved parts from GREE spare-parts are Electric, the Original Equipment Manufacturer(OEM) or Gree released or authorised components.
  • Page 6 Service Manual Basics in RAC Knowledge of the basic SI standard units for temperature, pressure, mass, density, energy. Understanding of the basic theory of refrigeration systems including the functions of the main components in the system (compressor, evaporator, condenser, thermostatic expansion valves). Understanding how to read a refrigerant flow chart and an electrical circuit diagram.
  • Page 7 Service Manual HC R290 Refrigerant Lssues Please notice that the unit is filled with propane. Details to this refrigerant are found in chapter “refrigerant”. Propane is highly flammable and leads to explosion under certain conditions. Inappropriate treatment of the unit involves the risk of severe damages of people and material.
  • Page 8 Service Manual Flammability Three components are needed simultaneously for causing fire: 1. Oxygen 2. Ignition source 3. The flammable concentration of HC For ignition, the concentration of HC in air has to be between the lower and upper flammable limits. If the concentration is below the lower flammability limit (LFL) of about 2% by volume in air, there is not enough HC for combustion.
  • Page 9 Service Manual First Aid Measures Inhalation: Remove the affected person to fresh air. If breathing has stopped, administer artificial respiration. Give external cardiac massage if necessary. If the person is breathing but unconscious, place them in the recovery position. Obtain medical assistance immediately.
  • Page 10 Service Manual DO NOT USE WATER JET Special protective equipment for fire fighters: In confined spaces use self-contained breathing apparatus Hazardous combustion products: Incomplete combustion may form carbon monoxide. Accidental Release Measures Immediate emergency action: Further actions: · Clear people away from the area to a safe place ·...
  • Page 11 Service Manual The HC leak de- tector is indeed a Personal Protective Equipment (PPE) device! Sign plate to protect and mark the working area. Appropriate detectors, suitable for hydrocarbons, must be available and operational all the time. Appropriate tools and appliances must be available and ready for operation.
  • Page 12 Service Manual Pressure—Temperature Chart HC Refrigerant R-290 Temperature Absolute pressure Gauge pressure °C °F kPa(g) bar(g) PSI(g) 111,12 1,11 16,12 11,12 0,11 1,61 -38,2 116,00 1,16 16,83 16,00 0,16 2,32 -36,4 121,05 1,21 17,56 21,05 0,21 3,05 -34,6 126,27 1,26 18,31 26,27 0,26...
  • Page 13 Service Manual HC Refrigerant R-290 Temperature Absolute pressure Gauge pressure 51,8 654,81 6,55 94,97 554,81 5,55 80,47 53,6 673,40 6,73 97,67 573,40 5,73 83,17 55,4 692,38 6,92 100,42 592,38 5,92 85,92 57,2 711,75 7,12 103,23 611,75 6,12 88,73 731,51 7,32 106,10 631,51 6,32...

  • Page 14: Part Ⅰ : Technical Information

    Service Manual Part Ⅰ : Technical Information 1. Summary GPC07AK-K5NNA1A GPC09AK-K5NNA1A GPC07AK-K5NNA2A GPC09AK-K5NNA2A Technical Information...
  • Page 15 HEALTH X-FAN HUMIDITY FILTER TURBO YB1F2(XFAN) HOUR ON/OFF ON/OFF MODE X-FAN TEMP TIMER TURBO SLEEP LIGHT Model Product Code Remote Controller GPC07AK-K5NNA1A CK010033800 CK010033900 GPC09AK-K5NNA1A CK010033901 CK010033301 GPC07AK-K5NNA2A CK010033300 CK010033200 CK010033201 GPC09AK-K5NNA2A CK010033202 YB1F2(XFAN) CK010033203 CK010031800 GPC07AK-K5NNA3A CK010031801 CK010032100 CK010032101...

  • Page 16: Specifications

    Service Manual 2. Specifications Parameter Unit Value Model GPC09AK-K5NNA3A GPC07AK-K5NNA3A CK010032100/CK010032101/ Product Code CK010031800/CK010031801 CK010032102/CK010032104 Rated Voltage V ～ 220-240 220-240 Power Rated Frequency Supply Phases Cooling Capacity 2600 2100 Heating Capacity Cooling Power Input 1000 Heating Power Input Cooling Power Current Heating Power Current Rated Input 1150...
  • Page 17 Service Manual ZHUHAI LANDA COMPRESSOR ZHUHAI LANDA COMPRESSOR Compressor Manufacturer/Trademark CO., LTD CO., LTD Compressor Model QXD-B160T130C QXD-A121L130B Compressor Oil 5GSD-TB or equivalent 5GSD-TB or equivalent Compressor Compressor Type Rotary Rotary L.R.A. Compressor RLA Compressor Power Input Overload Protector HPA-018 HPA-012 Fan Type Centrifugal...
  • Page 18 Service Manual Parameter Unit Value Model GPC09AK-K5NNA2A GPC07AK-K5NNA2A CK010033200/CK010033201/ Product Code CK010033300/CK010033301 CK010033202/CK010033203 Rated Voltage V ～ 220-240 220-240 Power Rated Frequency Supply Phases Cooling Capacity 2600 2100 Heating Capacity Cooling Power Input 1000 Heating Power Input Cooling Power Current Heating Power Current Rated Input 1150...
  • Page 19 Service Manual ZHUHAI LANDA COMPRESSOR ZHUHAI LANDA COMPRESSOR Compressor Manufacturer/Trademark CO., LTD CO., LTD Compressor Model QXD-B160T130C QXD-A121L130B Compressor Oil 5GSD-TB or equivalent 5GSD-TB or equivalent Compressor Compressor Type Rotary Rotary L.R.A. Compressor RLA Compressor Power Input Overload Protector HPA-018 HPA-012 Fan Type Centrifugal...
  • Page 20 Service Manual Parameter Unit Value Model GPC09AK-K5NNA1A GPC07AK-K5NNA1A Product Code CK010033900/CK010033901 CK010033800 Rated Voltage V ～ 220-240 220-240 Power Rated Frequency Supply Phases Cooling Capacity 2600 2100 Heating Capacity Cooling Power Input 1000 Heating Power Input Cooling Power Current Heating Power Current...
  • Page 21 Service Manual ZHUHAI LANDA COMPRESSOR ZHUHAI LANDA COMPRESSOR Compressor Manufacturer/Trademark CO., LTD CO., LTD Compressor Model QXD-B160T130C QXD-A121L130B Compressor Oil 5GSD-TB or equivalent 5GSD-TB or equivalent Compressor Compressor Type Rotary Rotary L.R.A. Compressor RLA Compressor Power Input Overload Protector HPA-018 HPA-012 Fan Type Centrifugal...

  • Page 22: Outline Dimension Diagram

    Service Manual 3. Outline Dimension Diagram Unit:mm Models GPC07AK-K5NNA1A GPC09AK-K5NNA1A Technical Information...
  • Page 23 Service Manual Unit:mm Models GPC07AK-K5NNA2A GPC09AK-K5NNA2A Technical Information...
  • Page 24 Service Manual Unit:mm Models GPC07AK-K5NNA3A GPC09AK-K5NNA3A Technical Information...

  • Page 25: Refrigerant System Diagram

    Service Manual 4. Refrigerant System Diagram CENTRIFUGAL FAN CENTRIFUGAL FAN COOLED AIR HOT DISCHARGED AIR COMPRESSOR INDOOR COILS OUTDOOR COILS CAPILLARY REFRIGERANT FLOW DIRECTION Technical Information...

  • Page 26: Electrical Part

    Compressor Yellow Brown Grounding wire Blue YEGN Yellow/Green Black Violet Orange ●Electric Diagram GPC07AK-K5NNA1A GPC09AK-K5NNA1A GPC07AK-K5NNA2A GPC09AK-K5NNA2A GPC07AK-K5NNA3A GPC09AK-K5NNA3A 600007061256 These wiring diagrams are subject to change without notice; please refer to the one supplied with the unit. Technical Information...

  • Page 27: Pcb Printed Diagram

    Service Manual 5.2 PCB Printed Diagram Silk screen on main board TOP VIEW Name 1 Copper fin N1 of neutral wire 2 Comperessor relay 3 Fuse 4 Copper fin N3 of neutral wire 5 Piezoresistor 6 Indoor fan 7 High-water level 8 Outtube temperature sensor 9 Ambient temperature sensor 10 Tube temperature sensor...

  • Page 28: Function And Control

    Service Manual 6. Function and Control 6.1 Introduction of control panel Dual-8 nixie tube + / - button Cool mode indicator Dry mode indicator Fan mode indicator Fan speed indicator Mode button Sleep button Timer button Fan button ON/OFF button Operation of control panel Note: ●After putting through the power, the air conditioner will give out a sound.

  • Page 29: Remote Controller Introduction

    Service Manual 6.2 Remote Controller Introduction ON/OFF Button AUTO HEALTH X-FAN MODE Button HUMIDITY FILTER +/- Button TURBO HOUR FAN Button ON/OFF Button Button ON/OFF MODE HEALTH SAVE Button X-FAN Button TEMP Button TIMER Button X-FAN TEMP TIMER TURBO Button TURBO SLEEP LIGHT...
  • Page 30 Service Manual Press this button to turn on the unit. Press this button again to turn off the unit. AUTO COOL DRY HEAT (This indicator is not available for some models) (This indicator is not available for some models) (This indicator is not available for some models).
  • Page 31 Service Manual no display (horizontal louvers (swing angle is stops at current position) displayed dynamically) (swing angle is displayed dynamically) Note:This function is applicable to partial of models. no display Technical Information...
  • Page 32 Service Manual Press this button under cooling, heating mode can start up sleep function. " " icon will be displayed on remote controller. Press this button again to cancel sleep function. " "icon on remote controller will be displayed. If “H1” is displayed on the remote controller while it’s not operated by the professional person/after-sales person, it belongs to the misoperation.

  • Page 33: Introduction Of Basic Mode Function

    Service Manual 6.3 Introduction of Basic Mode Function 1. Temperature Parameter ◆ Indo or setting temperature (Tpreset) ◆ Indoor ambient temperature (Tamb.) 2. Basic Functions of System After the unit is energized, the interval of start-up time for compressor is no less than 3min under any conditions; when the compressor is started, the unit is off without the temperature change in 6min.
  • Page 34 Service Manual 3.7 Setting button function a) ON/OFF button: It controls systems switch. b) Mode button: Mode setting cycle with below sequence: Cooling only unit: cooling-> dry-> fan. c) Temp. ▼ button: Set temperature when the unit is on, the setting temperature decreases 1 C or F per press Temp.

  • Page 35: Part Ⅱ : Installation And Maintenance

    Service Manual Part Ⅱ : Installation and Maintenance 7. Notes for Installation and Maintenance Safety Precautions: Important! 11. Replace the fuse with a new one of the same specification Please read the safety precautions carefully before if it is burnt down; dont replace it with a cooper wire or installation and maintenance.
  • Page 36 Service Manual Appliance filled with flammable gas R290. Before install and use the appliance, read the owner’s manual first. Before install the appliance, read the installation manual first. Before repair the appliance, read the service manual first. The Refrigerant To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R290, which is specially cleaned.

  • Page 37: Installation Precaution

    Service Manual 8. Installation Precaution WARNING: ● Observe all governing codes and ordinances. ● Do not use damaged or non-standard power cord. ● Be caution during installation and maintenance. Prohibit incorrect operation to prevent electric shock, casualty and other accidents. 8.1 Selection of installation location Basic requirement Installing the unit in the following places may cause malfunction.
  • Page 38 Service Manual 8.3 Preparation before Installation Note:check if the accessories are available before installation Accessory list joint B joint C heat discharge Adapter joint A pipe wire hook screw pipe clip rubber plug pipe hoop AUTO HEALTH X-FAN HUMIDITY FILTER TURBO HOUR ON/OFF...

  • Page 39: Installation

    Service Manual 9. Installation 9.1 Installation Wire Hook ● Assemble the wire hook at the back of the unit with screws.(As show in Fig.1) direction of wire hook is upward wire hook screw direction of wire hook is downward Fig.1 Fig.2 ●...
  • Page 40 Service Manual ● Drainage way as follows. 1. In Cool, Dry or Heat mode operating, the condensation water will be drained to the chassis.(As show in Fig.6) 2. 2. When the chassis is full with water, the buzzer will give out 8 sounds and "H8" is displayed to remind user to discharge water,the unit will turned off about 2min latter, and all buttons are invalid.

  • Page 41: Installation In A Double-Hung Sash Window

    Service Manual 9.3 Installation in a double-hung sash (Note: protective grille, support, rain shield, nut, bolt, spring washer and washer are optional accessories; some models window are without these accessories. (Note: If the inner width of window is below 20.5"(520mm), please 6.
  • Page 42 Service Manual 8. Cut the sponge B to a proper length and attach it to the 4. Fix the support on the outer side of window panel with nuts, spring window panel. washer,washer and bolt. sponge B (adhesive type) washer Spring Washer Bolt 9.
  • Page 43 Service Manual Adjustment panel plastic window window outer window sash window bracket Adjustment sponge A panel inner window Screws wooden window Window panel 20.5"~37.4" assemble 7.3 If the inner width of the window is between 37.4" (950mm) and 56.7" (1440mm) inclusive. (1) Attach the extension panel to the adjustment panel.

  • Page 44: Installation And Disassembly Of Heat Discharge Pipe

    Service Manual 9.5 Installation and Disassembly of heat Discharge Pipe A. Install heat discharge pipe 1. Rotate joint A clockwise into the heat discharge pipe. heat discharge pipe Join A clockwise 2. Install anather side of heat discharge pipe clockwise into protective grille sub-assy. Heat discharge pipe clockwise Join A...

  • Page 45: Operation Test

    Service Manual ●Correct installation is as shown in figure (When installing it on wall, height of hall should be about 130cm from floor).(As shown in Fig.15) ●Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.(As shown in Fig.16) B.

  • Page 46: Maintenance

    Service Manual 10. Maintenance 10.1 Safety Principle of Maintenance 1. The maintenance spot must have good ventilation. Do not close the door or the window. 2. Do not use naked flame, including welding, smoking. Do not use power tools.Do not use mobile phone. Tell the user not to cook with naked flame.

  • Page 47: Maintenance Cautions

    Service Manual 10.3 Maintenance Cautions If it is necessary to replace components, all the components used shall be made by manufacturer. Otherwise, the supplier shall not bear the responsibility. 1.Maintenance of Electrical Parts (1)Replace the power cord and connecting wire with that of the same specification. (2)When inspecting the circuit with power on, check if there is electric leakage for the metal component such as evaporator or condenser.
  • Page 48 Service Manual (2).Replace main board Concentration Leakage test for the detector complete unit Leakage Remove panel Remove front case Remove the shielding box of electric box The qualified parts Replace main provided by board manufacturer Maintenance...

  • Page 49: Error Code

    Service Manual 10.4 Error Code Display Method of Indoor Unit Indicator lamp (During blinking, ON for 0.5S and NO. Malfunction OFF for 0.5 S) A/C Status Possible Causes Error Name Code Operation COOL HEAT Inidicato Indicator Indicator 1. The wiring terminal between indoor ambient temperature sensor and main Compressor stops board is loosened or poorly contacted.
  • Page 50 Service Manual Display Method of Indoor Unit Indicator lamp (During blinking, ON for 0.5S and Malfunction OFF for 0.5 S) A/C Status Possible Causes Error Name Code Operation COOL HEAT Inidicato Indicator Indicator 1. Heat exchangers are too dirty or the air inlet/outlet is blocked.

  • Page 51: Malfunction Detection Flowchart

    Service Manual 10.5 Malfunction Detection Flowchart (1) Malfunction of temperature sensor F1, F2, F4 Troubleshooting for F1,F2,F4 malfunction the wiring terminal between the temperature sensor and the controller loosened or poorly contacted? Insert the temperature sensor tightly Is malfunction eliminated Is there short circuit due to trip - over of the parts? Make the parts upright...
  • Page 52 Service Manual (2) Bucket full protection H8 Start up the unit H8 is displayed Discharge water by referring Whether water tray is full to instruction manual Check whether wires for water-level Whether malfunction switch are connected tightly is eliminated? Adjust connection Whether malfunction Replace water-level is eliminated?
  • Page 53 Service Manual (3) Malfunction of Insufficient fluorine protection F0 （4） Troubleshooting for F0 malfunction Heat exchangers are Clean the heat exchangers and remove Malfunction is too dirty or the air inlet/outlet eliminated. blockage of air inlet/outlet. is blocked. Compressor doesn't work Malfunction is Make compressor run normally.
  • Page 54 Service Manual (4) Malfunction of Overload protection for compressor H3 Troubleshooting for H3 malfunction Heat exchangers are Clean the heat exchangers and remove Malfunction is too dirty or the air inlet/outlet eliminated. blockage of air inlet/outlet. is blocked. Fan motor doesn't work Check motor and re-install the moto Malfunction is at a normal fan speed;...
  • Page 55 Service Manual (5) Overload malfunction E8 Troubleshooting for E8 malfunction Operate the unit after ambient tempeature and Whether the environment Malfunction is humidity is decreased or move the unit to the eliminated. is formidable. place with low abient temprature and humidity. Heat exchangers are Clean the heat exchangers and remove...

  • Page 56: Maintenance Method For Common Malfunction

    Service Manual 10.6 Maintenance Method for Common Malfunction 1. Air Conditioner Can't be Started Up Possible Causes for Malfunction Distinguish Method (A/C status) Maintenance Method No power supply; power plug Check whether theres power supply; hasnt been inserted tightly and Operation indicator is OFF and buzzer wont give Check power plug and wire connection.
  • Page 57 Service Manual 3. Fan Can't Swing Possible Causes Discriminating Method (Air conditioner Status) Troubleshooting Connect wires according to wiring diagram to Wrong wire connection, or poor Check the wiring status according to circuit make sure all wiring terminals are connected connection diagram firmly...

  • Page 58: Exploded View And Parts List

    Service Manual 11. Exploded View and Parts List 61 62 63 64 65 66 67 68 10 11 The component picture is only for reference please refer to the actual product. Maintenance...
  • Page 59 Service Manual Part Code Description GPC07AK-K5NNA3A Product Code CK010031800 CK010031801 Top Cover Assy 000097000003 000097000003 Membrane 60516015 60516015 Coping 22246538 22246538 Fixed support (top cover) 2001150005001 2001150005002S Display Board 30565307 30565307 Display Board 30567033 30567033 Cover of Propeller Housing 20022300005 20022300005 Air Flue Assy 00001100063...
  • Page 60 Service Manual Evaporator Assy 011001060491 011001060491 Fan Motor 1501606906 1501606906 Filter Sub-assy 2 11126125 11126125 Left Side Plate 20056189 20056189 Electric Box Assy 100002064003 100002064003 Electric Box Sub-Assy 01700700097 01700700097 Fixed support (mainboard) 20011500051 20011500051 Main Board 300002060477 300002060477 Capacitor CBB61S 3301074714 3301074714 Temperature Sensor...
  • Page 61 Service Manual Part Code Description GPC09AK-K5NNA3A Product Code CK010032100 CK010032101 CK010032102 Top Cover Assy 000097000003 000097000028 00009700013 Membrane 60516015 60516015 60516015 Coping 22246538 22246538 22246538 Fixed support (top cover) 2001150005001 2001150005002S 20011500050T Display Board 30565307 30565307 30565307 Display Board 30567033 30567033 30567033 Cover of Propeller Housing...
  • Page 62 Service Manual Evaporator Assy 011001060491 011001060491 011001060491 Fan Motor 1501606903 1501606903 1501606903 Filter Sub-assy 2 11126125 11126125 11126125 Left Side Plate 20056189 20056189 2005618901 Electric Box Assy 100002064001 100002064001 100002064001 Electric Box Sub-Assy 01700700097 01700700097 01700700097 Fixed support (mainboard) 20011500051 20011500051 20011500051 Main Board...
  • Page 63 Service Manual Part Code Description GPC07AK-K5NNA2A Product Code CK010033300 CK010033301 Top Cover Assy 000097000028 000097000033 Membrane 60516015 600006000020 Coping 22246538 2224653801 Fixed support (top cover) 2001150005002S 2001150005002S Display Board 30565307 30565307 Display Board 30567033 30567033 Cover of Propeller Housing 20022300005 20022300005 Air Flue Assy 00001100063...
  • Page 64 Service Manual Evaporator Assy 011001060491 011001060491 Fan Motor 1501606906 1501606906 Filter Sub-assy 2 11126125 1112612501 Left Side Plate 20056187 2005618701 Electric Box Assy 100002064003 100002064003 Electric Box Sub-Assy 01700700097 01700700097 Fixed support (mainboard) 20011500051 20011500051 Main Board 300002060477 300002060477 Capacitor CBB61S 3301074714 3301074714 Temperature Sensor...
  • Page 65 Service Manual Part Code Description GPC09AK-K5NNA2A Product Code CK010033200 CK010033201 CK010033202 Top Cover Assy 000097000104 000097000028 000097000033 Membrane 60516015 60516015 600006000020 Coping 22246538 22246538 2224653801 Fixed support (top cover) 20011500050T 2001150005002S 2001150005002S Display Board 30565307 30565307 30565307 Display Board 30567033 30567033 30567033 Cover of Propeller Housing...
  • Page 66 Service Manual Evaporator Assy 011001060491 011001060491 011001060491 Fan Motor 1501606903 1501606903 1501606903 Filter Sub-assy 2 11126125 11126125 1112612501 Left Side Plate 20056187 20056187 2005618701 Electric Box Assy 100002064001 100002064001 100002064001 Electric Box Sub-Assy 01700700097 01700700097 01700700097 Fixed support (mainboard) 20011500051 20011500051 20011500051 Main Board...
  • Page 67 Service Manual Part Code Description GPC07AK-K5NNA1A GPC09AK-K5NNA1A GPC09AK-K5NNA1A Product Code CK010033800 CK010033900 CK010033901 Top Cover Assy 00009700013 00009700013 000097060139 Membrane 60516015 60516015 60516015 Coping 22246538 22246538 2224653802 Fixed support (top cover) 20011500050T 20011500050T 20011500050T Display Board 30565307 30565307 30565307 Display Board...
  • Page 68 Service Manual Evaporator Assy 011001060491 011001060491 011001060491 Fan Motor 1501606903 1501606903 1501606903 Filter Sub-assy 2 11126125 11126125 11126125 Left Side Plate 2005653902 20056539 2005653902 Electric Box Assy 100002064001 100002064001 100002064001 Electric Box Sub-Assy 01700700097 01700700097 01700700097 Fixed support (mainboard) 20011500051 20011500051 20011500051 Main Board...
  • Page 69 Service Manual Part Code Description GPC09AK-K5NNA2A GPC09AK-K5NNA3A Product Code CK010033203 CK010032104 Top Cover Assy 000097060139 000097060141 Membrane 60516015 60516015 Coping 2224653802 2224653802 Fixed support (top cover) 20011500050T 2001150005001T Display Board 30565307 30565307 Display Board 300001060511 300001060511 Cover of Propeller Housing 2002230000501 2002230000501 Air Flue Assy...
  • Page 70 Service Manual Evaporator Assy 011001060491 011001060491 Fan Motor 1501606903 1501606903 Filter Sub-assy 2 11126125 11126125 Left Side Plate 2005618702 2005618902 Electric Box Assy 100002064001 100002064001 Electric Box Sub-Assy 01700700097 01700700097 Fixed support (mainboard) 20011500051 20011500051 Main Board 300002060477 300002060477 Capacitor CBB61S 3301074706 3301074706 Temperature Sensor...

  • Page 71: Removal Procedure

    Service Manual Prohibit disassembling and maintaining 12. Removal Procedure the refrigeration system pipeline and parts (include evaporator, condenser, compressor, capillary, 4-way valve, etc.) Step Procedure 1.Remove front grill and filter sub-assy 2 Filter sub-assy 2 Front grill Pull the filter sub-assy 2 outward by hand to remove the filter.
  • Page 72 Service Manual Step Procedure 3.Remove rear plate Remove the 12 screws fixing rear Real plare plate to remove the rear plate and cable cross plate. Cable cross plate Screws Cover of drainage hole 4. Remove top cover assy Top cover assy Remove the 4 screws to remove Screws the top cover assy.
  • Page 73 Service Manual Step Procedure Remove front panel assy Screws Front panel sub-assy Remove the four screws fixing front panel to remove the front panel sub-assy. Remove electric box cover Electric box cover Screws Unscrew 2 screws to remove the electric box cover. Maintenance...
  • Page 74 Service Manual Step Procedure Remove capacitor box assy Unscrew 2 screws to remove the capacitor box sub-assy. capacitor box sub-assy Screws Maintenance...

  • Page 75: Appendix

    Service Manual Appendix: Appendix 1: Reference Sheet of Celsius and Fahrenheit Conversion formula for Fahrenheit degree and Celsius degree: Tf=Tcx1.8+32 Set temperature Fahrenheit Fahrenheit Fahrenheit display Fahrenheit display Fahrenheit display Fahrenheit Celsius （℃） Celsius （℃） Celsius （℃） temperature temperature temperature （℉）...

  • Page 76: Appendix 2: List Of Resistance For Temperature Sensor

    Service Manual Appendix 2: List of Resistance for Temperature Sensor Resistance table of temperature sensor (15K) Temp( Resistance(kΩ) Temp( Resistance(kΩ) Temp( Resistance(kΩ) Temp( Resistance(kΩ) 138.1 18.75 3.848 1.071 128.6 17.93 3.711 1.039 121.6 17.14 3.579 1.009 16.39 3.454 0.98 108.7 15.68 3.333 0.952...
  • Page 77 Service Manual Resistance table of temperature sensor (20K) Temp( Resistance(kΩ) Temp( Resistance(kΩ) Temp( Resistance(kΩ) Temp( Resistance(kΩ) 181.4 25.01 5.13 1.427 171.4 23.9 4.948 1.386 162.1 22.85 4.773 1.346 153.3 21.85 4.605 1.307 20.9 4.443 1.269 137.2 4.289 1.233 129.9 19.14 4.14 1.198 18.13...
