- Page 1 Change for Life Portable Air Conditioner Owner's Manual Residential Air Conditioners GPC08AH-A3NNC3B MODEL: GPC09AH-A3NNC3B GPC10AH-A3NNC3B Thank you for choosing Residential Air Conditioners, please read this owner’s manual carefully before operation and retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS SUMMARY WORKING PRINCIPLE STRUCTURE OPERATING METHODS Functions and operation methods of control panel Environmental temperature OPERATION OF WIRELESS REMOTE CONTROL Names and functions of wireless remote control Guide for operation- General operation Guide for operation- Optional operation Introduction for special function Changing batteries and notices DRAINAGE METHOD ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE... - Page 3 Thank you for your selection, please read this instruction carefully before operating and keep it for consultation.
-
Page 4: Summary
SUMMARY Mobile Air Conditioner is a type of small, multifunctional and movable air conditioner that contains functions of COOL, DRY and separate ventilation, and it can be moved freely according to different location and occasion, it is suitable for office and houses especially those with many rooms.This product also contains the advantages of compact configuration, excellent process, elegant appearance, convenient moving, low cost and low noise. - Page 5 WORKING PRINCIPLE When only used as dehumidifier,remember to take off heat discharge pipe from unit and install it onto unit when the unit is window or wall used as air conditioner.Since partial indoor air will be heated as heat air and discharged to outside by discharge pipe after discharge pipe cyc-ling then outdoor air will enter to maintain balance air pressure,thus the air conditioner will only lower temperature...
-
Page 6: Structure

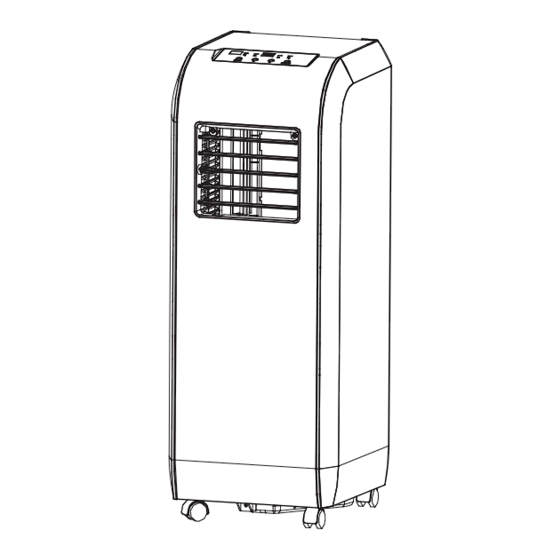

STRUCTURE Front Control panel Guide louver Swing louver Wheel Rear Remote conrtoller box Power cord Filters Upper air inlet grille Air outlet vent Lower air inlet grille - 3-... -
Page 7: Operating Methods
OPERATING METHODS The temp.range of this unit is16 for cooli- Applyrange for COOL and DRY ng and ranges from 6 for dehumidifying Disposal requirement Place the unit on horizontal floor when using and ma- intain a distance for above 50cm from walls,surface of flammable objects or other obstructions. -
Page 8: Functions And Operation Methods Of Control Panel
Functions and operation methods of control panel WATER FULL light COOL mode light DRY mode light Receiver window FAN mode light LED screen MODE button Temperature selection button ON/OFF button Panel control When pressing key is valid,buzzer makes a sound,indicated light indicates relevant state,system will last for 2 seconds ON/OFF Turn on or turn off the unit (press once to turn on unit and repress to turn off). -
Page 9: Environmental Temperature
Environmental temperature Usage environmental temperature of this unit is 16 35 . Cool 1 Install heat discharge pipe well,select a location near door and window, connect the heat discharge pipe to outside and note to leave an air return vent such as a window or door to guarantee the indoor air return normal. -
Page 10: Operation Of Wireless Remote Control
OPERATION OF WIRELESS REMOTE CONTROL Note: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. -
Page 11: Timer Button
OPERATION OF WIRELESS REMOTE CONTROL TIMER TIMER button ● By pressing this key under switch-off state, you may set the time for auto switch-on. The range of setting is 0.5 ~ 24 hours. The characters "T-ON" and "H" will flash for 5 seconds. -
Page 12: Guide For Operation- General Operation
OPERATION OF WIRELESS REMOTE CONTROL Guide for operation - General operation 1. After powere on, pressON/OFF button, the unit will start to run. 2. Press MODE button, select desired running mode, enter into the corresponding operation directly. 3. Pressing + or - button, to set the desired temperature. (It is unnecessary set the temp. -
Page 13: Changing Batteries And Notices
OPERATION OF WIRELESS REMOTE CONTROL Changing batteries and notices 1. Slightly to press the place to take out the back cover of wireless remote control. (As shown in figure) 2. Take out the old batteries. (As show in figure) 3. Insert two new AAA1.5V dry batteries, and pay attention to the polarity. (As show in figure) 4. -
Page 14: Drainage Method
DRAINAGE METHOD When COOL or DRY is running, condensate will drain to water tank.When water tank is filled buz- zer will sound 8 timers for warn, water tank green indicated light on panel on with H8 displayed on display window and whole unit stop running. Plug out plug on drainage hose and take off the hose from fixing clamp, then drain out water in tank. - Page 15 DRAINAGE METHOD Drain Hose Clamp A. Drain port B. Attach drain hose clamp with screw provided. 5. Snap the free end of the drain hose into the drain hose clamp Drain Hose A. Rubber plug D. Drain hose clip B. Drain port E.
-
Page 16: Accessories And Installation Of Heat Exhaust Hose
ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE Length range of exhaust pipe should be 500mm-1500mm. ● It is recommended to use it with shortest length. When installing, exhaust pipe should be as flat as possible. ● Don't prolong the pipe or connect it with other exhaust pipe, or Correct installation is as shown in figure(When installing it on wall, height of hall should be about 40cm-130cm from floor). - Page 17 ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE If the pipe are to be bent, please install it by considering following dimension. 55cm 55cm Wrong installation is shown in following figure (If the pipe is bent too much, it would easily cause malfunction.) - 14 -...
-
Page 18: Maintenance
MAINTENANCE There are wheels at bottom of mobile air conditioner that enable the unit moves among Mobile AC rooms conveniently according to need. Warning Pull out power plug from socket and cut off power before any maintenance to prevent creepage occurs. If too much duct deposed on filter,performance of air conditioner will reduce, Clean air filter thus it is better to clean filter at least once 2 weeks. -
Page 19: Malfunction Analysis
MALFUNCTION ANALYSIS If malfunction occur, please check the following before maintenance: Solutions Troubles Possible Causes The power supply is not connected well The air conditioner doesn't start. 1. Insert the powerplug tightly. The power plug is not inserted tightly. 2. Replace the powerplug orsocket. Thereis themalfunction of power plug 3. -
Page 20: Safe Note And Notice
SAFE NOTE AND NOTICE Location Don't place the unit in narrow location. Guarantee better ventilation for unit to prevent malfunction occurs. Don't place the unit in where there is direct sunburn to prevent fade and re- duce of effect. The unit should be at least 50cm away from surface of flammable thing. Don't soak the unit or operate it in place where is easy to get wet to prevent creepage. -
Page 21: After Sales Service
For disposal there are several possibilities: a) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. b) When buying a new product, the retailer will take back the old product at least free of charge. - Page 22 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 66166072 E-mail: gree@gree.com.cn www.gree.com...
