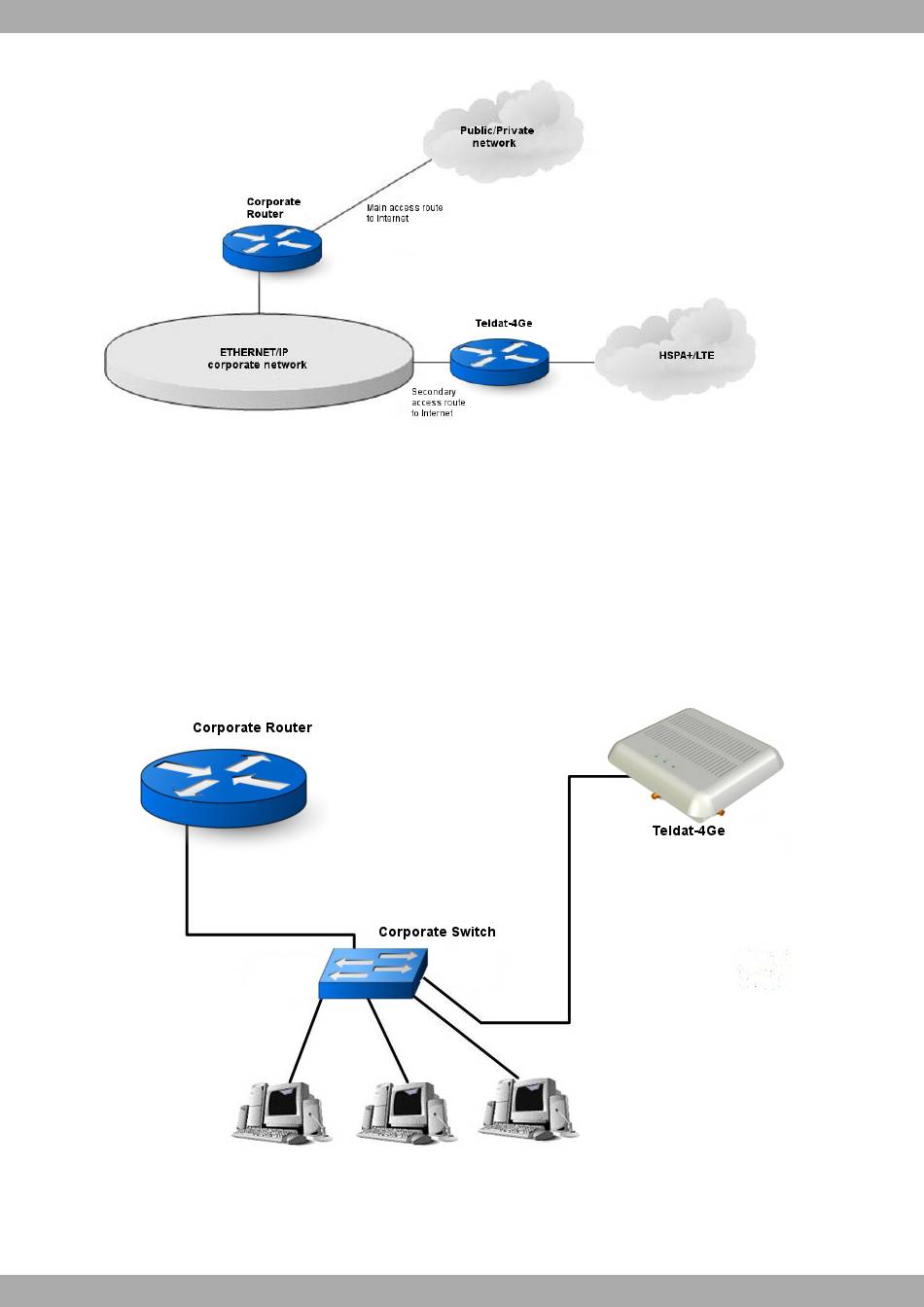

Fig. 2:

2.3 Device interfaces and connection

The Teldat 4Ge router has two interfaces:
• An interface that provides access to the WWAN.
• An Ethernet interface.
The Teldat 4Ge can be connected to the corporate outbound router in two ways:
(1) Connect the Teldat 4Ge to the corporate network as if it were another network device, sharing the Ethernet net-
work with the corporate router.
Connecting the Teldat 4Ge to the corporate router through a switch
Fig. 3:
(2) If the corporate router has more than one Ethernet interface, you can use a 10BaseT cable that is directly con-
nected to the router (as shown in the following figure).
