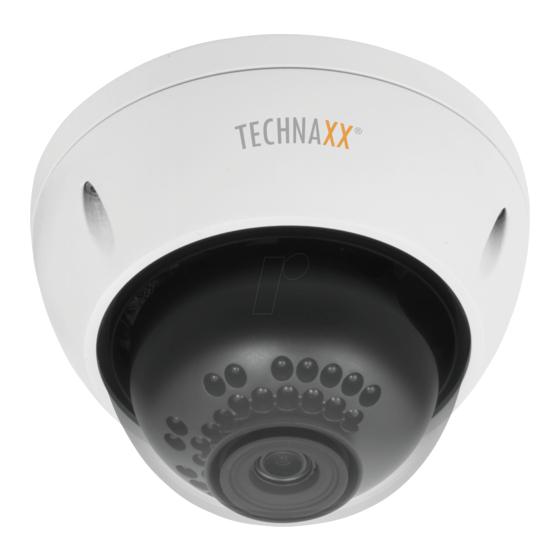

Technaxx TX-65 User Manual

Wifi ip-cam bullet/dome/speed dome pro fullhd outdoor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Technaxx WiFi IP-Cam Bullet PRO
FullHD Outdoor TX-65
Technaxx WiFi IP-Cam Dome PRO FullHD
Outdoor TX-66
Technaxx WiFi IP-Cam Speed Dome PRO
FullHD Outdoor TX-67
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technaxx TX-65

Summary of Contents for Technaxx TX-65

  • Page 1 Technaxx WiFi IP-Cam Bullet PRO FullHD Outdoor TX-65 Technaxx WiFi IP-Cam Dome PRO FullHD Outdoor TX-66 Technaxx WiFi IP-Cam Speed Dome PRO FullHD Outdoor TX-67...

  • Page 2: Table Of Contents

    1.1 TX-65 ..........................7 1.2 TX-66 ..........................7 1.3 TX-67 ..........................7 2. Device Structure ........................ 8 2.1 Structure Info TX-65 ......................8 2.2 Structure Info TX-66 ...................... 10 2.3 Structure Info TX-67 ...................... 10 3. Device Installation ......................11 3.1 Installation TX-65 ......................
  • Page 3 H: Bonjour .......................... 40 I: Multicast .......................... 40 J: WIFI ..........................40 J.A: WIFI ..........................40 J.B: WPS (only TX-65 & TX-66) ..................41 K: 802.1x (Only TX-67) ....................... 41 L: QoS ..........................41 6.6.4 PTZ ..........................41 6.6.5 Event .......................... 43 6.6.5.1 Video Detect ......................43...
  • Page 4 D: NAS ..........................47 6.6.6.3 Record control ......................47 6.6.7 System ........................48 6.6.7.1 General ........................48 A: General .......................... 48 B: Date & Time ........................48 6.6.7.2. Account ........................48 6.6.7.3. Default ........................49 6.6.7.4. Import / Export ......................49 6.6.7.5. Auto Maintain ......................49 6.6.7.6.
  • Page 5 11.5.3 Snapshot ........................68 11.5.4 Record ........................68 11.5.5 Playback ........................69 11.5.6 Bidirectional Talk (not for TX-65, 66, 67) ..............69 11.5.7 Unlock (optional) ....................... 69 11.7.8 PTZ Direction and Zooming (Only TX-67) ..............69 11.7.8.1 Direction and Zooming ...................69 11.7.8.2 Preset ........................70...
  • Page 6 TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION..82 This device complies with the requirements of the standards referred to the Directive R&TTE 2014/53/EU. The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”). Before using the device the first time, read the user manual carefully.

  • Page 7: Features

    1. Features 1.1 TX-65  1/3” 3Megapixel progressive scan CMOS  H.264&MJPEG dual-stream encoding  Max 20fps@3M(2048×1536)&25/30fps@1080P(1920×1080)  DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC  Multiple network monitoring: Web viewer, My Secure Pro PC Client, My Secure Pro App  3.6mm fixed lens (2.8mm optional) ...

  • Page 8: Device Structure

    2. Device Structure 2.1 Structure Info TX-65 Refer to the following figure for cable information. See Figure 2-1. Figure 2-1 Refer to the following sheet for detailed information. No. Port Function Connection Note Name Network Ethernet Connect to standard Ethernet cable.
  • Page 9 Figure 2-2 Refer to the following sheet for detailed information. SN Name Name ① Reset/WPS button ⑤ Indicator light 2 ② Indicator light 1 ⑥ Waterproof ring ③ Lower cover ⑦ Wifi antenna ④ Micro SD card slot ⑧ Locking screw Indicator light status Device status Red light normally on...

  • Page 10: Structure Info Tx-66

    2.2 Structure Info TX-66 Note: The following figure is for reference only, which is used to know the components and cable port function. There are differences about structure components cables between different models, refer to the actual object for more details. Refer to the following figure for component structure.

  • Page 11: Device Installation

    3. Device Installation Important Note:  Before the installation, make sure the installation environments can at least support 3x weight of the camera and the bracket. 3.1 Installation TX-65 Figure 3-1 Network Camera (Device) Installation Screw Expansion Bolt Installation Surface See Figure 3-1 and Figure 3-2.

  • Page 12: Installation Tx-66

    Figure 3-2 Locking Screw Step 6: Use Philip’s head screwdriver (in accessories bag) to loosen Locking screw. Step 7: Adjust the device in all possible directions, and set its monitoring direction. Step 8: Use Philip’s head screwdriver to tighten the screws. 3.2 Installation TX-66 Figure 3-3 Ceiling or Wall...
  • Page 13 Step 1: Use inner hex wrench in the accessories bag to open dome enclosure by unfastening three inner hex screws on enclosure. Step 2: Take out the installation position map in the accessories bag, and then paste it on the ceiling or the wall according to your monitor area requirements. Step 3: Find cross signs on the map, and dig three plastic expansion bolts holes on the installation surface and then insert three expansion bolts in the holes.
  • Page 14 MicroSD Card Installation Note: Some series products do not support the MicroSD card function, which can’t be applied to the following chapter. Shut down the power and then turn off the device before you install the MicroSD card. Step 1: Find the MicroSD Card slot in Figure 3-6; open the Micro SD Card slot according to the direction in Figure 3-4.
  • Page 15 Figure 3-6 Fix Screw of LED Decoration Cover Reset Switch Micro SD Karte slot Note:  Long press the “Reset button” shown in Figure 3-6 for 10 seconds when the device is power on if the device needs to restore to factory setting. ...

  • Page 16: Installation Tx-67

    3.3 Installation TX-67 Figure 3-7 Installation Surface Installation Position Map Antenna Enclosure Inner Hex Wrench Expansion Bolt Pedestal Pan Rotation Direction Tilt Rotation Direction Self-tapping Screw Follow the steps listed below to install the device. Refer to Figure 3-7 for reference. Step 1: Take the installation position map in the accessories bag, and then paste it on the ceiling or the wall according to your monitor area requirements.
  • Page 17 Step 3: Aim the three slots on the dome body to the three corresponding snaps on the installation pedestal and then push up slowly until you hear it “click” Step4: Take out the fastening screw from the accessories bag and screw it (in Figure 3-7) into the corresponding threaded holes of the dome body to tighten the installation pedestal and prevent falling.
  • Page 18 Figure 3-9 Reset button MicroSD Karte slot MicroSD Card Removal and Installation (see Figure 3-9) Note: Cut off the power when you need to remove and install MicroSD card, power on after you finish MicroSD card removal or installation. Step 1: Use inner hex wrench in the accessories bag to open dome enclosure by unfastening three inner hex screws on enclosure.

  • Page 19: Quick Installation Via App (My Secure Pro App)

    4. Quick installation via App (My Secure Pro App) The product has Android and iOS versions. Android: Open Google Play App in your smart phone. Search “My Secure Pro”, download it and install it. iOS: Open App Store App in your smart phone. Search “My Secure Pro”, download it and install it.

  • Page 20: P2P Configuration

    4. Your Smartphone will use the WIFI connection you are currently connected to. Insert the password of your WIFI router like seen in figure 4-5. 5. Press “Next” button. 6. System auto configure (wait). Figure 4-6 7. If failed, then click try again or repeat the above steps. 8.

  • Page 21: Quick Configuration Tool

    5. Quick Configuration Tool 5.1 Overview Quick configuration tool can search current IP address, modify IP address. At the same time, use it to upgrade the device. Note the tool only applies to the IP addresses in the same segment. Find the tool on the CD. 5.2 Operation One quick press on the network button (camera) and one quick press on the router (WPS), then the device can be connected to WIFI successfully.
  • Page 22 If you want to modify the device IP address without logging in the device web interface, go to the configuration tool main interface to set. In the configuration tool search interface (Figure 5-1), select a device IP address and then double click it to open the login interface.

  • Page 23: Web Operation

    6. Web Operation This series network camera products support the Web access and management via PC. Web includes several modules: Monitor channel preview, system configuration, alarm, etc. 6.1 Network Connection Follow the steps listed below for network connection.  Make sure the network camera has connected to the network properly. ...
  • Page 24 If it is your first time to log in, the system pops up a warning information to ask you whether you like to install the web plug-in or not. Install the web plug-in. After you logged in, see the main window. See figure 6-3. Figure 6- 3 Note: ...

  • Page 25: Live

    6.3 Live In this section you are going to see the live video, after your login was successful. Select the streaming mode and the protocol type. The symbols at the right corner of the display are described as followed: Digital zoom – There are two options to zoom. Click it, to activate the function: 1.

  • Page 26: Ptz (Only Tx-67)

    6.4 PTZ (Only TX-67) Change the direction of the Camera with pressing the button shown at the left side. The speed of the camera can be set between 1-8. Under PTZ the camera can be Zoom In or Zoom Out! PTZ Settings: there are 2 options to set (Preset &...

  • Page 27: Playback (Only When Microsd Card Is Inserted)

    To set the following functions click on Setup  PTZ Function. In the Live picture you can select scan, preset, tour, pattern, assistant function, to start or stop the selected function. See figure 6-4. Figure 6-4 6.5 Playback (Only when MicroSD Card is inserted) Wait a moment to let the web plug-in load the recorded videos from the Micro SD-card of the camera.
  • Page 28 Digital zoom - Click it, to activate the function (6.3 Live / Digital Zoom). Snapshot - Click it, to take a picture of the recorded video you are watching. File Type: Switch between picture (jpg) and video (dav) files. Data Src: Pick SD- card, this is where the recorded files are saved.
  • Page 29 1. All: Recording will be for General, Motion, Alarm and Manual 2. General: Always recording 3. Motion: Recording when motion detected 4. Alarm: Recording when alarm enabled 5. Manual: User defined (Live recording) 1. 24hr: Shows the whole day in 2h segments. 2.

  • Page 30: Setup

    By clicking on default the changes you made are deleted and the parameters are back on default settings. Only TX-65 & TX-66 White balance (WB) function: Auto, Natura, Street Lamp, Outdoor, Manual IR-light function: - Manual, SmartIR, OFF B: Profile management: It works with the profiles select for normal, day and night under 6.6.1.1.1 conditions.

  • Page 31: Video

    Under TX-65, TX-66 &TX-67 also add text overlay. D: Path Set the path to save the file from live snapshot, live record, playback snapshot, playback download &...

  • Page 32: Intelligent Video Surveillance (Ivs) (Only For Tx-67)

    6.6.2 Intelligent Video Surveillance (IVS) (only for TX-67) 6.6.2.1 Global Setup The global setup interface is shown as in Figure Figure 6-5 Parameter Function IVS enable Check the box here to enable IVS function. It includes: panorama (optional, single scene and multiple-scene. (Panorama: Realize the intelligent analytics of current monitor video ...

  • Page 33: Single Scene

    Parameter Function Add scene Click it to add a scene. Click it to set current monitor video as the corresponding scene and get a Scene setup number. Preview Click it to preview the selected scene. scene Zoom Click to zoom in and click to zoom out.

  • Page 34: Rule Setup

    6.6.2.3 Rule Setup The rule setup interface is shown as in Figure 6-7. Figure 6-7 Parameter Function Select You can select the scene from the dropdown list so that you can add the scene. corresponding rule. Add rule Click it to add a rule to the selected scene. Rule enable Check the box here to enable the rule.

  • Page 35: Cross Warning Zone

    Parameter Function Object type You can select an object type here. The default setup is Unknown. supported Direction It is to set tripwire direction. The option includes: A->B、B->A、A<->B. ， Check the box here to enable this function and then click button Target filter you can set the target filter model in this scene for this rule.

  • Page 36: Alarm Activation Setup

    Parameter Function It is for the In area option in the Detect action list item. Here is to set the Min last time min time between the target in the zone and an alarm activation occurrence. Report It is for the In area option in the Detect action list item. It is to set alarm interval period.

  • Page 37: Parameter

    6.6.2.4 Parameter The parameter interface is shown as in Figure 6-11. Figure 6-11 Parameter Function Scene Please select a scene from the dropdown list you want to set. Detect There are three modes: compromise mode, omission detect less and balance error detect less.

  • Page 38: Connection

    6.6.3.2 Connection A: Connection It is the max Web connection for the same device. The value ranges Connection from 1 to 20. The max connection amount is 20. TCP protocol communication service port. The value ranges from 1025 TCP port to 65534.

  • Page 39: B: Pppoe (Only Tx-67)

    Note: 1. Do not use the port value such as 0-1024, 37780-37880, 1900, 3800, 5000, 5050, 9999, 37776, 39999 and 42323 since they are used as the special port. 2. When setting the port value, it's not recommended to use other ports' default port value. B: PPPoE (Only TX-67) PPPoE is to set a connection to the Internet with the account you get from the ISP.

  • Page 40: H: Bonjour

    Enable the SNMP function. Use the corresponding software tool (MIB Builder and MG- SOFT MIB Browser. You still need two MIB file: BASE-SNMP-MIB, DVR-SNMP-MIB) to connect to the device. Get the device corresponding configuration information after successfully connection. Follow the steps listed below to configure. ...

  • Page 41: J.b: Wps (Only Tx-65 & Tx-66)

    J.B: WPS (only TX-65 & TX-66) To connect the camera via WPS you have to enter the Pin and the SSID of your router. Find these information’s in the configuration of the router. You also can connect the camera with the router by pressing the Network button on the camera and the WPS button at your router.
  • Page 42 Parameter Function  Select Preset, input the preset value and then click Add button, now Preset system save current position as one preset. Click View button, the camera turns to the corresponding position of the preset.  Select Tour and then input tour value. Click Add or Delete button to Tour add/remove one preset from the tour.

  • Page 43: Event

    6.6.5 Event 6.6.5.1 Video Detect A: Motion Detect Tip: Set the sensitivity and the threshold under region in order to get an alarm when the detected moving signal reached the threshold you set in the device.  Enable: Check the box here to enable motion detect function. ...

  • Page 44: B: Video Tamper

    Click setup button. Set motion detection regions here. There are four regions for you to set (red, yellow, blue and green). Select one of the colored regions first. Then click the left mouse button on the start point of the area you want to select and drag the mouse to select the area.

  • Page 45: Abnormality

     Record: Check the box here, system auto activates motion detection channel(s) to record once an alarm occurs.  Record Delay: System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.  Send email: Check the box here, ystem can send out email to alert you when an alarm occurs.

  • Page 46: A: Record Schedule

    A: Record Schedule Check the box for general (green), motion (yellow) or alarm (red). Set record schedule here. System only enables record option in the specified periods. There are two ways for you to set periods. Note system only supports 6 periods in one day. Select the period you want to set with the mouse.

  • Page 47: Destination

    6.6.6.2 Destination A: Path Check the box here to storage the corresponding record or snapshot picture. There is local MicroSD card, FTP or NAS storage setup for you to choose. Save the settings. B: MicroSD card (Local) Under local you can see: ...

  • Page 48: System

     Video standard: This is to display video standard such as PAL. Status Light Switch: Set the status light of the camera off or on (Only TX-65 & TX-66). B: Date & Time  Date format: Select date format from the dropdown list.

  • Page 49: Default

    Note:  The user amount default setup is 64 and the group amount default setup is 20. The factory default setup includes two levels: user and admin. Set the corresponding group and then set the rights for the respective user in the specified groups. ...

  • Page 50: Information

    6.6.8. Information 6.6.8.1 Version View software version with release date, Web Version, ONVIF Version, Serial number of the device and the Copyright. 6.6.8.2 Log  Type: All, system, Setting, Data, Event, Record, account and Clear Log.  Start time: Set the start time of the requested log. ...

  • Page 51: App Overview (My Secure Pro)

    9. App Overview (My Secure Pro) 9.1 General Introduction This manual is designed for smartphone to perform monitoring function. It is built on traits of mobile device to include functions of multiple touch control, touch signal recognition, alarm push, P2P function, DDNS analysis and etc. User can preview, control PTZ, play video and etc.

  • Page 52: App Short Description

    1 Snapshot the selected window 2 Start/Stop record of the selected window 3 Playback of the last 30 seconds 4 Start/Stop two way talk (not TX-65, 66, 67) 5 Video Door phone control (optional) 1 PTZ control 2 Fish-eye (optional)
  • Page 53 1 Set Brightness 2 Set Contrasts 3 Set Hue 4 Set Saturation 5 Reset 1 Add Brightness 2 Reduce Brightness 1 Add contrast 2 Reduce contrast...
  • Page 54 1 Add Hue 2 Reduce Hue 1 Add Saturation 2 Reduce Saturation PTZ function...

  • Page 55: Operation

    11. Operation 11.1 Remote Monitoring As in Figure 11-1, select the first icon to enter App, select the second icon shows the startup page. Figure 11-1 11.2 Main Menu Enter camera, you will see Live Preview interface in Figure 11- 2 by default. For detailed information see chapter 11.5 Live Preview.

  • Page 56: Playback

    Click on , system displays main menu interface in Figure 11- 3. User can click on function in main menu to enter corresponding function interface. Main functions includes: Live Preview, Playback, Device Manager, Local File, E-Map, Favorites, Alarm and More. Figure 11- 3 11.3 Playback Click on...

  • Page 57: Picture Playback

    Close playback:  Close a single channel playback: long press video to close playback and drag it to the trashcan above.  Close all channels’ playback: click on to close all playback. Parameter Note Quick/Slow Quick: quick play with 2x, 4x or 8x speed. Select playing video, click ...

  • Page 58: Add Device

    11.4.1 Add Device To add device: In device manager interface, click on to enter add device interface, see Figure 11- 5. Figure 11- 5 Parameter Note P2P: For network environment, add device by scanning  two-dimension code, inputting SN. Quick DDNS: For network environment, add device by ...

  • Page 59: P2P Configuration

    11.4.1.1 P2P configuration Select the P2P connecion from Add Device (Figure 11-5 above). 1. Press on the button and scan the QR-Code of the device. 2. Name the device connection. Username Password default (admin/admin). 4. Select in Live Preview between Main and Extra stream.

  • Page 60: Wifi Configuration

    11.4.1.3 IP/Domain configuration To configure IP/Domain: 1. Set the Device Name under Name 2. Set the IP Address of the device (Use the Config Tool to find the IP-Address of your WIFI camera, see 5 Quick configuration tool). 3. Save and press “Start Live Preview” Note: The access to the WIFI camera will be available only under intra network.
  • Page 61 4. Your Smartphone will use the WIFI connection you are currently connected to. Insert the password of your WIFI router like seen in figure 11-8. 5. Press “Next” button. 6. System auto configure (wait). Figure 11-9 7. If failed, then click try again or repeat the above steps. 8.

  • Page 62: Modify Device Info

    11.4.2 Modify Device Info To modify device information: In device manager interface, click on device you want to modify. System shows dropdown menu in Figure 11- 11. Click on in dropdown menu. Change device info, and click on to save. Tip: ...

  • Page 63: 1Video Detect

    11.4.3.1Video Detect A: Motion Detect (Compare with chapter 6.6.3.1) 1. Enable Motion Detect. See Figure 11-14. 2. Enable Advanced config. See Figure 11-14. 3. Now you can set the following settings:  Period: Here you can set motion detect period. System only enables motion detect operation in the specified periods.

  • Page 64: B: Video Mask

    B: Video Mask  Record: System auto activates motion detection channel to record once an alarm is detected.  Delay: System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s.  Snapshot: You can enable this function to snapshoot image when a motion detect alarm is detected.

  • Page 65: User Manager

    11.4.3.4 User Manager A: Modify Password Change the default password of the device. 11.4.4 Alarm Out Control (optional) You can enable and disable alarm output of channel. To enable or disable alarm output: In device manager interface, click on device. System shows dropdown menu in Figure 11- In dropdown menu, click on Select alarm out channel, click on...

  • Page 66: Delete Device

    11.4.6 Delete Device To delete device: In device manager interface, click on device. System shows dropdown menu in Figure 11- Click on in dropdown menu. System asks if to delete the device. Click on OK. Note: If it is not possible, to remove the camera, delete the push function for the camera! Figure 11- 20...

  • Page 67: Live Preview

    11.5 Live Preview Click on and click on Live Preview in main interface to enter live preview. See Figure 11-22 When you click camera, you will enter see live preview interface by default. Slide tool bar at the bottom to display more buttons Figure 11- 22 11.5.1 Enable Monitoring The app supports 4 methods to open monitoring.

  • Page 68: Close Monitoring

    3. Open last channel Click on to open channel viewed last time 4. System supports favorites. live preview interface, select a video window in preview, click on to add it to favorites, see Figure 11-24. Select Favorites and the process is complete. Figure 11-24 11.5.2 Close Monitoring System supports two methods to close...

  • Page 69: Playback

    Note: System default playback is 30 seconds. Click on to end payback and return to monitoring mode. 11.5.6 Bidirectional Talk (not for TX-65, 66, 67) In live preview , click on , the symbol will change to now you can talk and listen to the oponent on the otherside of the selected channel.

  • Page 70: Preset

    11.7.8.2 Preset On PTZ panel, click on , select preset No., and click on to adjust this preset point. 11.7.9 Fish-eye (optional) Enter live preview interface, select one window, click fish-eye button , and the interface shows fish-eye effect. In the fisy-eye effect, you can slide to control the effect. Click fisy-eye button again to exit.

  • Page 71: Audio (Optional)

    11.7.11 Alarm out Control (not TX-65, 66, 67) System supports to enable or disable device alarm output. 1. Under live preview, select a monitoring channel, click on button. Open corresponding alarm output of channel, see Fehler! Verweisquelle konnte nicht gefunden werden.figure 11-27.

  • Page 72: Full Screen

    11.7.14 Full Screen In live preview, screen is rotated and enters full screen mode as in Figure 11-28. Figure 11- 28 Note: If you cannot enter full screen mode, check the settings of mobile phone. 11.7.14.1 Zoom In Via touch signal to zoom in current video, and can drag zoomed video in order to view details in video.

  • Page 73: Share File

    11.7.15.2 Share File 1. Click on or long press file to enter file manager mode. 2. Select file to share. 3. Click on to share file. 11.7.15.3 Export File 1. Click on or long press local file to enter manager mode.

  • Page 74: Edit E-Map

    11.7.16.2 Edit E-Map Select added e-map, click on button to editing mode.  Click on to siwtch map.  Click on to add monitoring spot.  Click on to delete monitoring spot.  Click on to save. 11.7.17 Favorites System supports to create new favorites, or add monitoring spot to existing favorites. 1.

  • Page 75: Alarm Manager

    Delete favorites:  Delete favorite (Android): Long press favorite to delete and click on delete in pop-up box.  Delete favorite (iOS): At row of favorite to delete, slide the delete button and click on delete button. Remove monitoring spot in favorites: ...

  • Page 76: Alarm Push Event List

    Note:  Video and picture push requires storage medium on front-end device and you must set alarm record.  System supports to store up to 50 historical records in event list. 11.7.18.3 Alarm Push Event List Click on event list. You will see the history of the recorded events in event list.
  • Page 77 12. Technical Specifications 12.1 TX-65 Model TX-65 1/3” 3Megapixel progressive scan CMOS Image Sensor 2048(H)  1536(V) Effective Pixels Scanning System Progressive Electronic Shutter Speed Auto/Manual, 1s~1/100000s Min. Illumination 0. 1Lux/F2.0(Color), 0Lux/F2.0(IR on) S/N Ratio More than 50dB Camera Features Max.
  • Page 78 General Power Supply DC12V Power Consumption <4.5W(IR on) Working Environment -30°C~+60°C, Less than 95% RH Ingress Protection IP67 380g (with package 440g) / Φ 0.70 x 16.5 cm Weight / Dimensions 12.2 TX-66 Model TX-66 1/3” 3Megapixel progressive scan CMOS Image Sensor Effective Pixels 2048(H) x1536(V)
  • Page 79 Network RJ-45 (10/100Base-T) Ethernet Wi-Fi(IEEE802.11b/g/n) 50m(open field) Wi-Fi IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, Protocol ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS Compatibility ONVIF, CGI Max. User Access 20 users Smart Phone iPhone, iPad, Android Auxiliary Interface Memory Slot Micro SD card, up to 128GB...
  • Page 80 Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 0° ~ 90°, auto flip 180° Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s Preset Speed Pan: 100° /s; Tilt: 60° /s Preset PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan Speed Setup Human-oriented focal length/ speed adaptation Power up Action...
  • Page 81 GPL v2 without charge except for the cost of media, shipping, and handling, upon written request to Technaxx GmbH & Co. KG, Kruppstraße 105, 60388 Frankfurt am Main, Germany.
  • Page 82 To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have.
  • Page 83 1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty;...
  • Page 84 In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 3.
  • Page 85 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
  • Page 86 It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices.
  • Page 87 NO WARRANTY 11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR...
  • Page 88 (3) This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. (4) This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;...
