Technaxx TX-83 User Manual
  1. Manuals
  2. Brands
  3. Technaxx Manuals
  4. Security Camera
  5. TX-83
  6. User manual

Technaxx TX-83 User Manual

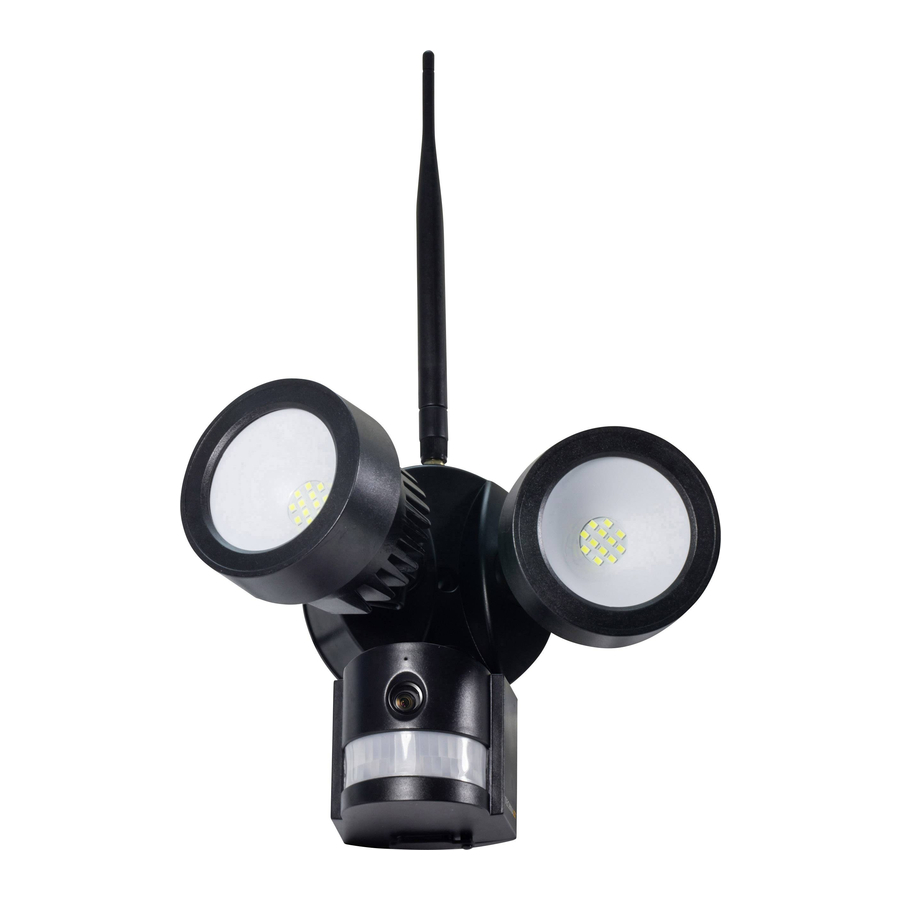

Ip-cam hd outdoor with led floodlight, wifi outdoor camera including led floodlight lighting
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
Technaxx
* User Manual
IP-Cam HD Outdoor
with LED Floodlight TX-83
WiFi outdoor camera including LED floodlight lighting
Important Hint regarding the User Manuals:
All languages of the user manual you find on the CD enclosed.
The english and german version of the user manuals you also find as printed version
enclosed. Before using the device the first time, read the user manual carefully.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-83 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technaxx TX-83

Summary of Contents for Technaxx TX-83

  • Page 1 ® Technaxx * User Manual IP-Cam HD Outdoor with LED Floodlight TX-83 WiFi outdoor camera including LED floodlight lighting Important Hint regarding the User Manuals: All languages of the user manual you find on the CD enclosed. The english and german version of the user manuals you also find as printed version...

  • Page 2: Table Of Contents

    Content Content ..........................2 Features..........................3 Technical specifications .......................4 1. Device Structure ......................5 2. Installing the mobile APP ....................6 3. Connecting the camera to your network ................6 3.1 Method1: Add Camera ....................7 3.2 Method2: Search camera in the LAN ................9 3.3 Wireless Network Connection..................11 4.

  • Page 3: Features

    The Declaration of Conformity you find here: www.technaxx.de/ (in bar at the bottom “Konformitätserklärung”). Before using the device the first time, read the user manual carefully. Service phone No. for technical support: 01805 012643 (14 cent/minute from German fixed-line and 42 cent/minute from mobile networks).

  • Page 4: Technical Specifications

    –10°C up to +60°C, humidity 90% or less Weight / Dimensions 1.2kg / (L) 20 x (W) 15 x (H) 20cm (with Antenna 40cm) IP-Cam outdoor with LED Floodlight TX-83, 2x screw (A), 1x screw (D), 2x Plastic plug (B), 1x Crossbar (C), Antenna, Package Contents...

  • Page 5: Device Structure

    1. Device Structure Front view Side view No. Name Description White light source The camera will use these in low-light conditions to generate a black and white image, even in total darkness. Fixed hole The camera can be fixed on a wall with screw through this hole. Microphone Allows the camera to pick up nearby sounds, and stream them with the video.

  • Page 6: Installing The Mobile App

    2. Installing the mobile APP The TX-83 works with iPhone and Android devices. Install the mobile APP and use your mobile for remote viewing/control your camera. The mobile APP is free to download for you, and is available from the respective Apple APP Store and Google Play Store.

  • Page 7: Method1: Add Camera

    Important Safety Instructions • Make sure product is fixed correctly and stable if fastened in place. • Do not operate if wires and terminals are exposed. • Apply for garden/square/wall/garage etc. Default Password Information • To ensure your privacy, this device supports password protection. •...
  • Page 8 3.1.2 Add camera Wait for about 90 seconds when the camera started up then operate according to the below steps: (1) Tap ”Settings” on your phone and go to “WIFI” option, look for the WIFI network named like “LEDCAM_XXXXXX”, please connect your phone to it by clicking on it. (2) Enter the WIFI password, default value is 0123456789, then click ”Join”...

  • Page 9: Method2: Search Camera In The Lan

    3.2 Method2: Search camera in the LAN 3.2.1 Preparation Router DC12V Connection AC Wall Socket RJ45 Connection...
  • Page 10 (1) Connect the RJ45 Ethernet connection on the camera, to a spare port on your router using the included Ethernet cable (or a longer one if required). (2) Connect the output of the supplied 12V power adapter into the power socket on the camera.

  • Page 11: Wireless Network Connection

    3.3 Wireless Network Connection If you want to connect the camera to router with WiFi, please enter the camera setting WiFi setting to set up, steps shown in the figure below: (1) Start the Security Advanced APP, Touch the gear shape icon to enter the camera setting screen.

  • Page 12: Install The Wifi Antenna

    5. Install the WiFi antenna Left and right Up and down Use a clockwise motion to connect the antenna. Make sure the antenna is connected firmly but not excessively. It is recommended to leave the antenna in a vertical position for best reception.

  • Page 13: Camera Field Of View

    Mount cameras at an elevated position - Mounting your cameras at an elevated position, can keep your cameras out of range of vandals or would be burglars. It also allows your camera to have a high vantage point increasing its viewing area. Cover your target area: When placing cameras, make sure you provide ample coverage, but not in excess.

  • Page 14: Lighting Tips

    6.3 Lighting Tips For best results do not point the camera towards a light source. Pointing the camera towards a glass window intending to see outside may result in a poor image because of glare and lighting conditions inside and outside. Do not place the camera in a shaded area that is looking into a well lit area as this will result in a poor display.

  • Page 15: Led And Camera Angle / Direction Adjustment

    Use a screw driver to screw Put the included screw (D) Connect the output of the crossbar into through the center hole of supplied DC12V power chosen surface with the the camera bracket and adapter into the power socket included screws (A). crossbar.

  • Page 16: Led Working Mode

    7. Main function introduction APP setting 7.1 LED working mode 7.1.1 Turn on /off LED manually (1) Start the Security Advanced APP on the “Device List” screen, touch the gear shaped icon to enter the selected camera setting screen. (2) Tap “Light Setting” to enter the light setting screen. (3) Select “Manual/Auto”...
  • Page 17 (1) Start the Security Advanced APP on the “Device List” screen, tap the gear shaped icon to enter the camera setting screen. (2) Tap “Light Setting” to enter the light setting screen. (3) Tap “Manual Mode Dwell Time” input box. (4) Enter required delay time from 1 to 10 hours.

  • Page 18: Environmental Illumination Threshold Setting For Day/Night Mode Switch

    7.1.4 LED ON Delay time setting at Auto mode (1) Start the Security Advanced APP on the “Device List” screen, tap the gear shaped icon to enter the camera setting screen. (2) Tap “Light Setting” to enter the light setting screen. (3) Tap “Auto Mode Dwell Time”...

  • Page 19: Pir Trigger Sensitivity Setting

    (1) Start the Security Advanced APP on the “Device List” screen, tap the gear shaped icon to enter the camera setting screen. (2) Tap “Light Setting” to enter the light setting screen. (3) Slide the LUX bar between icon to set up Day/Night switch threshold. You can adjust it according to your needs.

  • Page 20: Notification Push Setting For Pir Trigger

    7.4 Notification push setting for PIR trigger (1) Start the Security Advanced APP on the “Device List” screen, tap the gear shaped icon to enter the camera setting screen. (2) Tap “Alarm Setting” to enter the alarm setting screen.

  • Page 21: Notification Push Setting For Motion Detection Trigger

    (3) Enable or disable PIR detection, means enable notification push, means disable notification push. (4) Tap “Done” to save. (5) Tap “About\System setting” to enter system setting screen. (6) Enable all items on this screen. (7) When enable the PIR detection and someone enter the surveillance area, your mobile will pop up a message, then you can slide it to view.

  • Page 22: Recording To A Memory Card

    7.6 Recording to a Memory Card You can insert a MicroSD card into MicroSD card slot (Refer to chapter 4 to see how to insert card) for continuous recording. The camera supports MicroSD memory card up to 64GB. (1) Start the Security Advanced APP on the “Device List” screen, tap the gear shaped icon to enter the camera setting screen.

  • Page 23: My Messages

    7.7 My messages (1) Start the Security Advanced APP on the “Device List” screen, tap “My messages” to enter my messages screen. (2) Tap a selected camera to enter next screen. (3) Tap view a picture captured when motion or PIR detection event occurred up. (4) Tap play back video.

  • Page 24: Web Interface

    8. WEB Interface 8.1 Wired connection to LAN Tip: If you have already configured the camera, skip the procedure for configuring and continue with the installation of the CD. Power on the IP camera, connect IP camera to router by network cable, meanwhile, connect computer to the same router, example of figure 8-1.
  • Page 25 Figure 8-2 It will pop up user login dialog, enter default user name (admin) and password will be empty when the camera is registered for the first time as figure 8-3. Important: After first login change the password! (Chapter 8.8.2 User settings) Figure 8-3 After you logged in you will see options like in figure 8-4 below.

  • Page 26: Wifi Setup Via Web Browser

    We suggest using Internet Explorer 11 as browser to view the video (it can provide more functions), but user needs to install video player before viewing the video. Click “OCX Download ” to download OCX and install it. You can also find it on CD. Except IE browser, you can visit the camera by Firefox, Safari, Chrome, Opera browser etc., select “videostream mode (for Firefox)”...

  • Page 27: View Video

    Figure 8-6 Notice: When the device is connected both WIFI and wired, it will firstly connect to the wired network. If the camera enables DHCP to obtain IP address automatically, so the IP address is not same in wired connection and WIFI connection. 8.3 View video After installing the plug-in, click “livestream mode (for Internet Explorer),”...
  • Page 28 Audio, Talk, Record, Snapshot You can click these buttons to perform audio, talk, record and snapshot functions. Note: About recording path, click button to enter setting interface. Under Device basic information you can set “Local Recording Path” for saving manual taken snapshots and recordings, as seen in figure 8-8.
  • Page 29 Horizontal patrol Vertical patrol Reversal Mirror Contrast Brightness Chroma Saturation IR LED switched ON /Auto IR LED Switched OFF Switched OFF Switched ON Resolution: CBR Resolution: VBR PT speed setting: Slow, Medium, Fast Note: button can control work mode of IR LED. IR LED may have auto, forced close two mode, the IR LED will power on or off according to environment light in auto mode;...

  • Page 30: Device Basic Information

    8.4 Device basic information 8.4.1 Device information The user can obtain “Device firmware version”,” Web UI version”, “Alias”, “MAC” and etc. You also can change the language here. The UPnP setting of the camera is always activated. 8.4.2 Alias setting The user can name the camera, example for home, office etc.

  • Page 31: Alarm Settings

    8.4.5 MicroSD Card Record Schedule Here you can see the total capacity of the MicroSD card in MB. Also you can format the MicroSD card. Record coverage can be checked to automatically overwrite the oldest file (loop recording). After checking the Timer recording box you can set the time schedule. By clicking on the schedule the activated part turns blue.
  • Page 32 Device only triggers alarm when it detects any motion in armed time. User can set schedule time to be “all the time”, also assign the armed time. Before you set “Time Schedule”, please go to Date and Time settings to set the correct time Figure 8-13 After enabling Motion Detect Armed you can see the following options.
  • Page 33 Output Level Set up the output level to low or high (not supported) Send Alarm Check the box to get informed by E-mail when motion is Notification by Mail detected. The E-mail is with a picture attached. Note: You have to set the E-mail settings first. Upload Image of Alarm Check the box.
  • Page 34 8.5.3 FTP Service Setting When alarming, the device will snap local picture and send them to FTP server, but need to set the FTP setting correctly. As figure 8-15, after the setting is finished, click “Test” to check your settings are correct or not. Figure 8-15 Note: For using the FTP function, you need to apply a user with authority that you can write and create submenu and some memory space.

  • Page 35: Network Configuration

    8.6 Network configuration 8.6.1 Basic network settings The user can also enter the Basic Network Settings to set the IP address except using the search software “IPCameraSearch”. Default setting here is DHCP. See figure 8-17 below. Figure 8-17 Remark: The router connected to camera need to enable DHCP when the user uses “obtain IP from DHCP server”;...

  • Page 36: Configuration (Not Supported)

    8.6.3 DDNS Service setting User can also use DDNS, such as www.dyndns.com, User must apply a free domain name from this website and fill the info into the below blanks (Figure 8-19) and save the settings. Then the domain name can be used. Figure 8-19 Notice: Using the domain name, if the http port is not 80, the port number should be adding to the domain name with colon.

  • Page 37: User And Device Setting

    8.8 User and device setting 8.8.1 Multi-device Setting Like Figure 8-21 user can add maximum 9 devices to view video simultaneously. Click “refresh” button to check the device in the LAN. First choose a device on the left, like “The Device”...

  • Page 38: Security Advanced Pc Client

    8.8.3 Maintain Figure 8-23 Click “Restore factory settings”, it will pop up a dialog to ask you if restore to factory settings, the camera will restore factory settings and reboot after you confirmed. If there is any issue with the camera you also can reboot the camera by clicking on “Reboot Device”. There are two types of software in the camera, one is the device firmware, another is Web UI and you can upgrade them respectively.
  • Page 39 Add camera To add a camera click on “Manage” like seen in figure 9-2. Figure 9-2 In the new window that has opened, click “search” on the bottom, figure 9-3. Figure 9-3 The LAN will be scanned for devices. When a device is found it will be listed, figure 9-4. Figure 9-4...
  • Page 40 Double click on the device name you want to add. See figure 9-5. Enter password and click “OK”, then finish the camera adding. When it is the first time adding the camera and the password wasn’t modified, no need to enter the password, because the factory default value of the password is empty.
  • Page 41 Click next to the camera name (Figure 9-7), and enter the camera setting list you see in figure 9-8. Figure 9-7 Figure 9-8 Note: For your own safety please customize the password before you make any further settings. Go to User setting (figure 9-8) and set a customized user and password. For different user class refer to chapter 8.8.2...

  • Page 42: Troubleshooting

    10. Troubleshooting Q1: I have forgotten the username and password of the camera. A1: The default username is admin and the password is none. If you have changed the username and password to something different, you will need to reset the camera back to its default factory settings.
  • Page 43 GPL v2 without charge except for the cost of media, shipping, and handling, upon written request to Technaxx GmbH & Co. KG, Kruppstraße 105, 60388 Frankfurt am Main, Germany.
  • Page 44 Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.
  • Page 45 c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License.
  • Page 46 system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
  • Page 47 system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 8.
  • Page 48 HOW TO APPLY THESE TERMS TO YOUR NEW PROGRAMS (1) If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.
