Technaxx

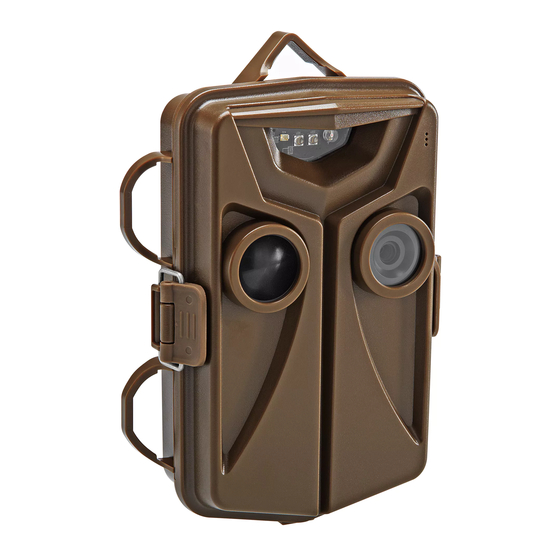

Wild Cam Camouflage TX–44+

User Manual

The Declaration of Conformity for this device is under the
Internet link: www.technaxx.de/ (in bottom bar
"Konformitätserklärung"). Before using the device the first time,
read the user manual carefully.
Service phone No. for technical support: 01805 012643 (14
cent/minute from German fixed-line and 42 cent/minute from
mobile networks). Free Email: support@technaxx.de
Features
FullHD Security camera for indoor and outdoor use
Video resolution 1920 x 1080 (1080P)
Ideal for viewing wild animals and for monitoring
houses
2.7" CMOS sensor with 2 mega pixels
Video and photo function are selectable
Standby time up to ~ 290 days
Motion and infrared sensor for night shots
1.2 seconds triggering time
Motion Detection Distance up to ~ 15m
IPX4 splash water proof
Easy handling and installation
®
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX–44+ Wild Cam Camouflage and is the answer not in the manual?

Questions and answers

Related Manuals for Technaxx TX–44+ Wild Cam Camouflage

Summary of Contents for Technaxx TX–44+ Wild Cam Camouflage

  • Page 1: User Manual

    Wild Cam Camouflage TX–44+ User Manual The Declaration of Conformity for this device is under the Internet link: www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the device the first time, read the user manual carefully. Service phone No. for technical support: 01805 012643 (14 cent/minute from German fixed-line and 42 cent/minute from mobile networks).

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction………..…………………..……..…..2 System Requirements...……...……………..… 2 2. Getting to know your camera…………………….. 3 Part Names (front and rear view)..……..… 3 3. Basic Camera Operation....………………… 4 Installing Batteries and MicroSD Card..... 5 Power On…..…………….…………….……. 7 4. Operation Mode…………….………..……………. 8 PIR Photo............

  • Page 3: Introduction

    1. Introduction System Requirements PC System Requirement ® Intel Core2Duo 1.8G or AMD equivalent CPU Hi-speed USB2.0 port 1 GB RAM internal memory minimum HD color monitor nVIDIA GeForce MX440 or above, AMD (ATi) Radeon 9200 or above DirectX 9.0 or higher Windows ®...

  • Page 4: Getting To Know Your Camera

    2. Getting to know your camera Part Names Front View Rear View...

  • Page 5: Basic Camera Operation

    3. Basic Camera Operation Installing Batteries and SD Card Release 2 Fastener Locks of the camera. Then take out the Rear Cover.

  • Page 6: Installing Batteries And Microsd Card

    Make sure the Power Switch of the camera is OFF. Install the MicroSD card. Be sure to observe the correct polarity with clipped corner on the card to the right. All the pictures and videos will be saved in the memory card. Install 8 brand new alkaline AA cell batteries in the battery box.
  • Page 7 Put the Battery Box into the Battery Room of the camera and make sure to observe correct polarity. Press the Battery Box to the end of the Battery Room. Make sure the Battery Box has fixed in the Battery Room.

  • Page 8: Power On

    Power On Slide the Power Switch to ON in the left side. It will initial the camera system. Wait until the LCD display the default mode on the preview screen. Slide the Power Switch to the right side to turn off the camera.

  • Page 9: Operation Mode

    4. Operation Mode Define use which operation mode to record image. Power On the camera. Press the Menu button to enter the Main Menu. Use the Up / Down key and change the Menu to Operation Mode. (Operation Mode (default) Setting Version)

  • Page 10: Pir Photo

    PIR PHOTO In OPERATION MODE menu, press the OK Button then the mode item is blinking. 1. Use Up / Down Keys to change the operation mode to PIR PHOTO then press OK Button again. (PIR PHOTO (default) / PIR VIDEO / TIME LAPSE) 2.
  • Page 11 PHOTO QUALITY Set the resolution of still picture. The higher resolution can provide high quality picture. But it needs more memory space to save and reduce the picture number of the memory card. HIGH 5.0MP (default) / MEDIUM 2.0MP / LOW 0.5MP / BEST 8.0MP (interpolated) PHOTO DELAY Define how longer of the interval time to active the PIR...

  • Page 12: Pir Video

    CONT. SHOT Set the number of continuous shoot. SINGLE (default) / 9 PHOTOS / 8 PHOTOS / ..2 PHOTOS PIR VIDEO In OPERATION MODE menu, press the OK Button then the mode item is blinking. Use Up / Down Keys to change the operation mode to PIR VIDEO then press OK Button again.
  • Page 13 VIDEO QUALITY Select a resolution size of video record. The higher resolution can provide high quality video. But it needs more memory space to save and reduce the record time of the memory card. 1280 X 720 (default) / 720 X 480 FullHD 1920 x 1080 (1080P) VIDEO LENGTH Define the time length of video record for each clip.
  • Page 14 before it will take another video. The delay time of PIR sensor will recount after the video record finish. For example: The Rec Time is 15 seconds and PIR delay time is 30 seconds. 5S (default) / 30M / 10M / 5M / 1M / 30S / 15S / 10S REC AUDIO Enable or disable / mute the microphone during video record.

  • Page 15: Time Lapse

    TIME LAPSE In OPERATION MODE menu, press the OK Button then the mode item is blinking. Use Up / Down Keys to change the operation mode to TIME LAPSE then press OK Button again. T.L. QUALITY Set the resolution of time lapse picture. The higher resolution can provide high quality picture.
  • Page 16 T.L. DELAY Time Lapse is an interval capture function. You can set an interval time to take picture one by one. The camera will take a picture one by one after every 15 seconds automatic until the memory full or battery power empty or terminate it by manual.

  • Page 17: Setting

    5. Setting For change all default settings if need. Power On the camera. Press the Menu button to enter the Main Menu. Use the Up / Down keys and change the Menu to Setting.
  • Page 18 SETUP DATE Adjust the current date. Use the Up / Down keys to adjust the number and use the Left / Right keys to shift next item M/D/Y. SETUP TIME Adjust the current time. Use the Up / Down keys to adjust the number and use the Left / Right keys to shift next item HR mm:ss.
  • Page 19 / video clips were taken by which camera. Use the Up / Down keys to change the alphabet / number and use the Left / Right keys to shift next text. TECHNAXX (default)
  • Page 20 INFO BAR Print an information stamp on the picture. You can see the record date, time and some other information from the picture directly. ON (default) / OFF Record the temperature during Temperature: this picture taken. Define an index name for this Camera Name: camera.
  • Page 21 The main purpose is the active of most animals have a relation with the moon phase. This information is helpful to search the animals. Capture Time: Record the time information when this picture taken. Capture Date: Record the date information when this picture taken.
  • Page 22 ERASE ALL Delete all files (picture / video) in the memory card. NO (default) / YES Note: 1. All data will be lose and can’t restore after delete. Make sure you have backup all data in the hard disk or other storage device before format it.

  • Page 23: Test Mode

    Use the Up / Down keys and change the Menu to Version. The firmware version shows on the screen. 6. TEST Mode Before use the camera. Make sure the PIR sensor work normally. Test its sensitivity and a correct detection zone for your purpose.
  • Page 24 Slide the Power Switch to TEST position. Close the rear cover. Lock Fastener Locks completely then camerawhere you want to monitor.

  • Page 25: Surveillance Mode

    Walk back and forth in front of the camera. The Red TEST LED will illuminate when the camera sensor has detected you. Using this method you can accurately position your camera as desired. Note: This TEST LED does not illuminate in Surveillance mode. 7.
  • Page 26 The Operation Mode show which record mode is in use. The File Counter show how many files have saved in the memory card. The camera starts to countdown 30 seconds and show it on the Delay Time Counter. Before the delay time countdown completely and enter the Surveillance Mode.

  • Page 27: Playback

    8. Playback Download Release 2 Fastener Locks of the camera. Then take out the Rear Cover. Make sure the Power switch of the camera is Off.

  • Page 28: Playback From Pc

    Take the micro SD card out and insert it to a compatible card reader. download your record files from "X:\DCIM\100SIMOS" folder. Playback from PC The video file format is AVI which can be played by Windows Media Player with PC. Windows 7: The videos can be viewed by the built-in Windows Media Player or QuickTime...

  • Page 29: Appendix

    9. Appendix Specifications Image Sensor 2.7” CMOS Sensor, 2 Mega Pixels Display Digital LCD Panel Lens Specification F=2.7, f=14.1mm, 2G2P 52° View Angle Lens Lens Focus Fixed White Balance Auto Exposure Auto Video Resolution FullHD: 1920 x 1080 (1080P) WVGA: 720 x 480 Video Encode Motion JPEG Audio Encode...

  • Page 30: Ui Flow

    UI Flow OPERATION MODE (default) VIDEO DELAY PIR PHOTO (default) 5 S (default) PHOTO QUALITY 30 M HIGH 5.0MP (default) 10 M MEDIUM 2.0MP LOW 0.5MP BEST 8.0MP 30 S 15 S PHOTO DELAY 10 S 5 S (default) 30 M REC AUDIO 10 M ON (default)
  • Page 31 12HR 03:45AM (default) 24HR 03:45 TIME START 06:00PM TIME STOP 18:00PM TIME SHOT OFF (default) NIGHT ONLY DAY ONLY CAMERA NAME TECHNAXX INFO BAR ON (default) LANGUAGE ENG (default) TEMP UNIT ° F (default) ° C ERASE ALL NO (default) DELETEING...
  • Page 33 Wipe the cleaned device accurately. Important Notice: Should battery fluid leak from a battery, wipe the battery case with a soft cloth dry. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany...
