GEZE Perlan AUT-NT
14

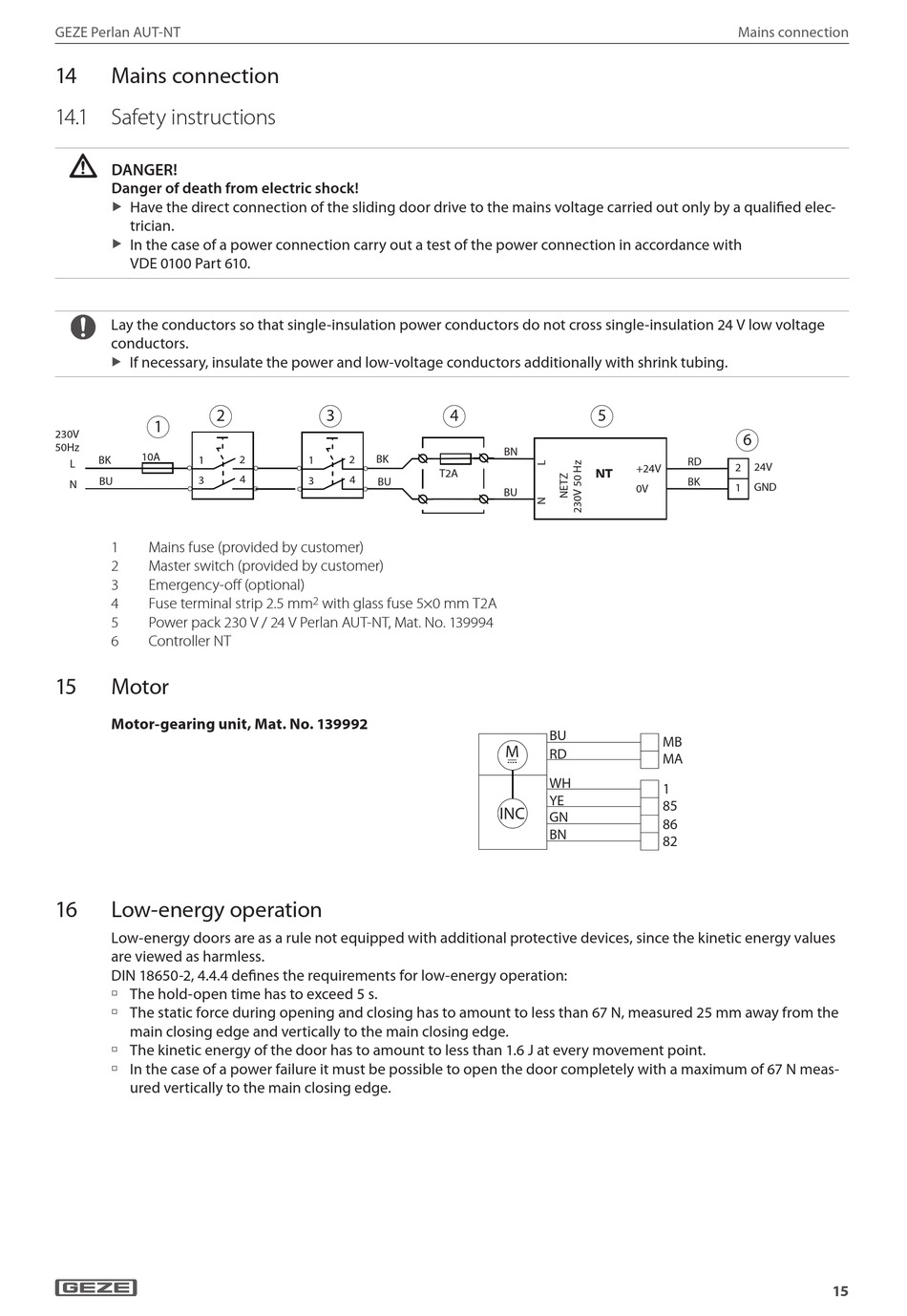

Mains connection

14. 1 Safety instructions

DANGER!
Danger of death from electric shock!
Have the direct connection of the sliding door drive to the mains voltage carried out only by a qualified elec-
X
trician.
In the case of a power connection carry out a test of the power connection in accordance with
X
VDE 0100 Part 610.
Lay the conductors so that single-insulation power conductors do not cross single-insulation 24 V low voltage
conductors.
If necessary, insulate the power and low-voltage conductors additionally with shrink tubing.
X
2
1
230V
50Hz
10A
BK 1
L
3
BU
N
1 Mains fuse (provided by customer)
2 Master switch (provided by customer)
3 Emergency-off (optional)
4 Fuse terminal strip 2.5 mm
5 Power pack 230 V / 24 V Perlan AUT-NT, Mat. No. 139994
6 Controller NT
15

Motor

Motor-gearing unit, Mat. No. 139992
16

Low-energy operation

Low-energy doors are as a rule not equipped with additional protective devices, since the kinetic energy values
are viewed as harmless.
DIN 18650-2, 4.4.4 defines the requirements for low-energy operation:
à The hold-open time has to exceed 5 s.
à The static force during opening and closing has to amount to less than 67 N, measured 25 mm away from the
main closing edge and vertically to the main closing edge.
à The kinetic energy of the door has to amount to less than 1.6 J at every movement point.
à In the case of a power failure it must be possible to open the door completely with a maximum of 67 N meas-
ured vertically to the main closing edge.
3
2 BK
1 2
4
4
3
BU
2 with glass fuse 5×0 mm T2A
4 5
BN
NT
T2A
BU
BU
M
RD
WH
YE
INC
GN
BN
Mains connection
6
RD
24V
2
+24V
BK
GND
1
0V
MB
MA
1
85
86
82
15
