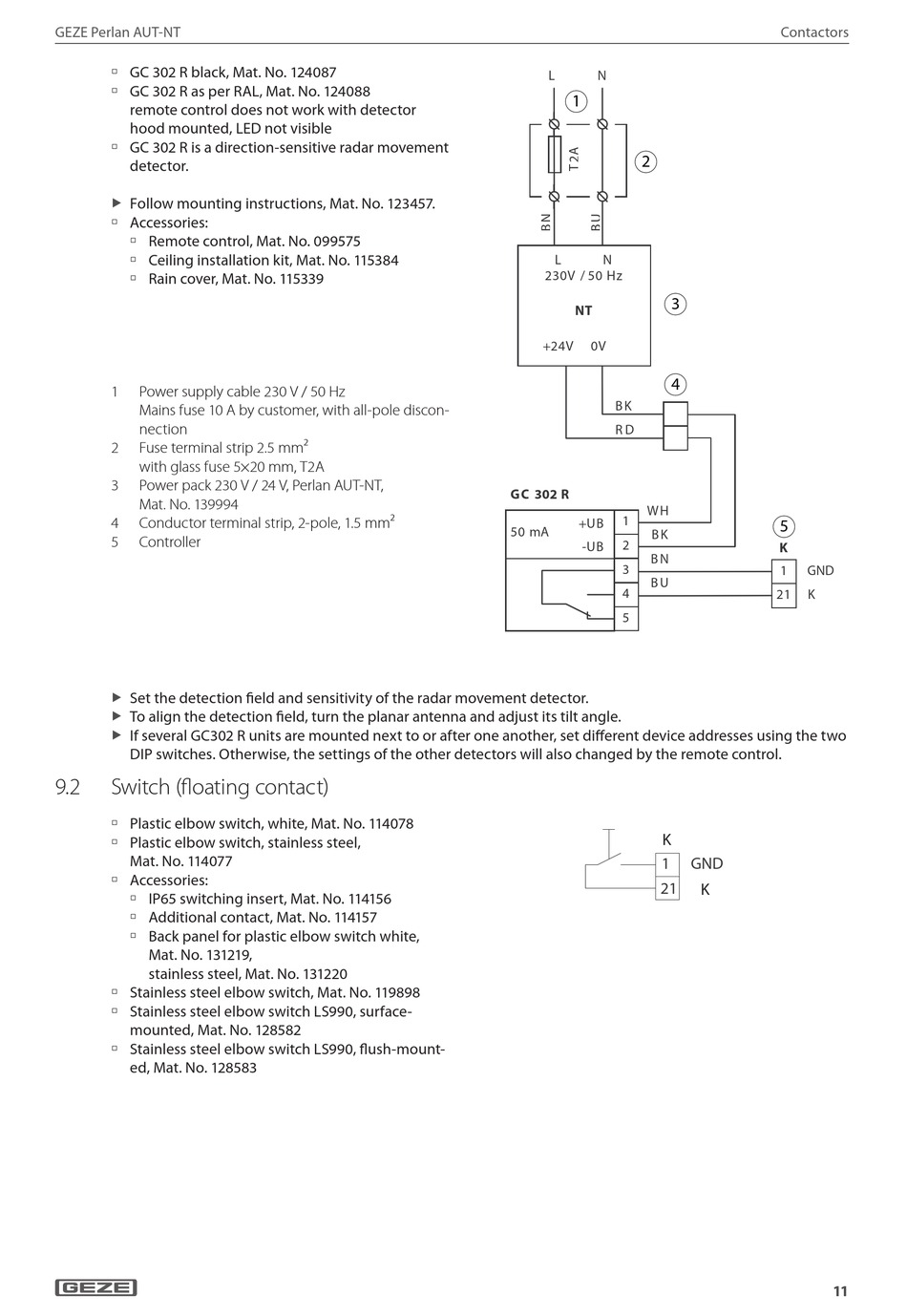

Switch (Floating Contact) - GEZE Perlan AUT-NT Wiring Diagram

GEZE Perlan AUT-NT
à GC 302 R black, Mat. No. 124087
à GC 302 R as per RAL, Mat. No. 124088
remote control does not work with detector
hood mounted, LED not visible
à GC 302 R is a direction-sensitive radar movement
detector.
Follow mounting instructions, Mat. No. 123457.
X
à Accessories:
à Remote control, Mat. No. 099575
à Ceiling installation kit, Mat. No. 115384
à Rain cover, Mat. No. 115339
1 Power supply cable 230 V / 50 Hz
Mains fuse 10 A by customer, with all-pole discon-
nection
2 Fuse terminal strip 2.5 mm²
with glass fuse 5×20 mm, T2A
3 Power pack 230 V / 24 V, Perlan AUT-NT,
Mat. No. 139994
4 Conductor terminal strip, 2-pole, 1.5 mm²
5 Controller
Set the detection field and sensitivity of the radar movement detector.
X
To align the detection field, turn the planar antenna and adjust its tilt angle.
X
If several GC302 R units are mounted next to or after one another, set different device addresses using the two
X
DIP switches. Otherwise, the settings of the other detectors will also changed by the remote control.
9.2

Switch (floating contact)

à Plastic elbow switch, white, Mat. No. 114078
à Plastic elbow switch, stainless steel,
Mat. No. 114077
à Accessories:
à IP65 switching insert, Mat. No. 114156
à Additional contact, Mat. No. 114157
à Back panel for plastic elbow switch white,
Mat. No. 131219,
stainless steel, Mat. No. 131220
à Stainless steel elbow switch, Mat. No. 119898
à Stainless steel elbow switch LS990, surface-
mounted, Mat. No. 128582
à Stainless steel elbow switch LS990, flush-mount-
ed, Mat. No. 128583
