Commissioning and service

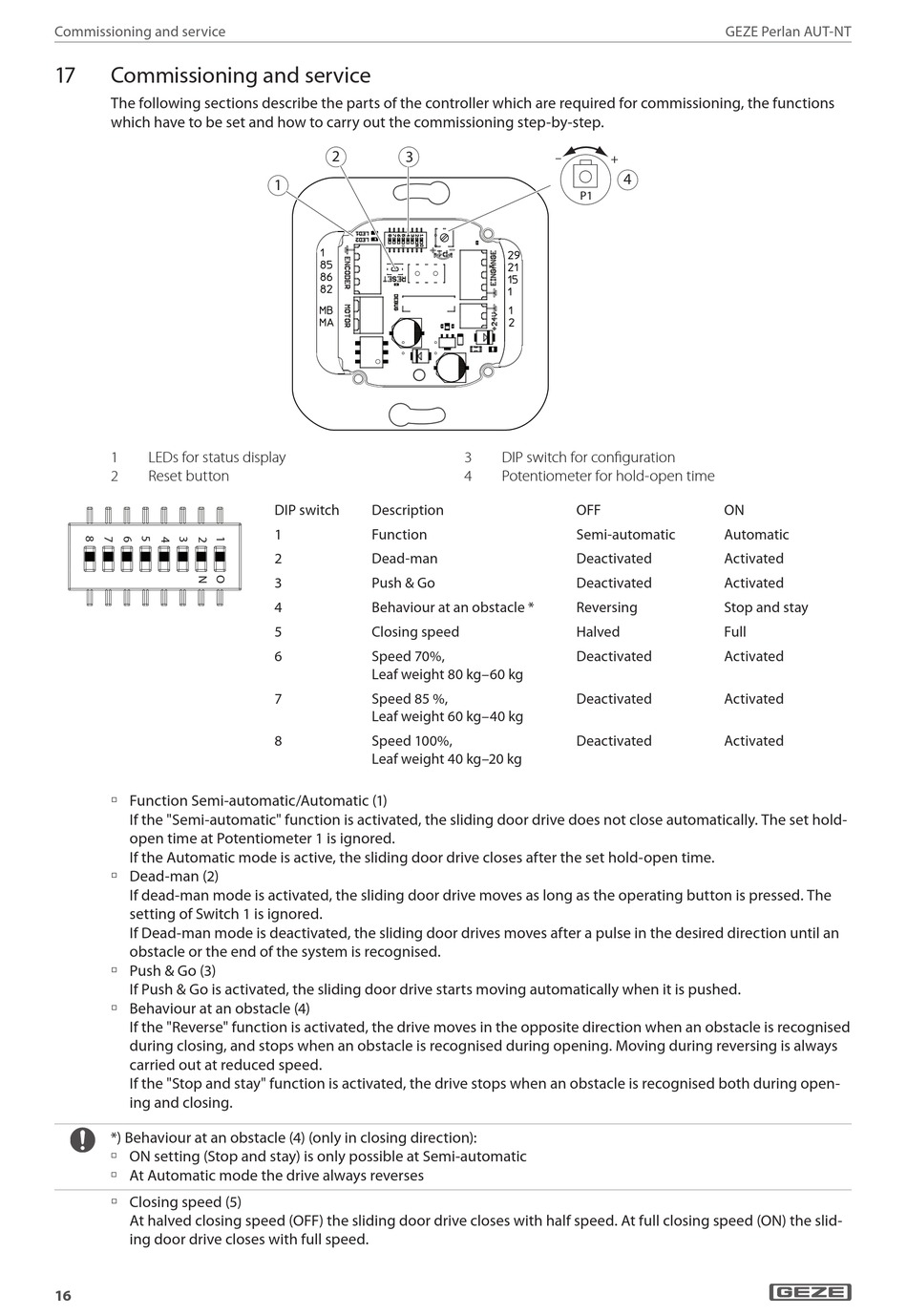

17 Commissioning and service
The following sections describe the parts of the controller which are required for commissioning, the functions
which have to be set and how to carry out the commissioning step-by-step.
1 LEDs for status display
2 Reset button
à Function Semi-automatic/Automatic (1)
If the "Semi-automatic" function is activated, the sliding door drive does not close automatically. The set hold-
open time at Potentiometer 1 is ignored.
If the Automatic mode is active, the sliding door drive closes after the set hold-open time.
à Dead-man (2)
If dead-man mode is activated, the sliding door drive moves as long as the operating button is pressed. The
setting of Switch 1 is ignored.
If Dead-man mode is deactivated, the sliding door drives moves after a pulse in the desired direction until an
obstacle or the end of the system is recognised.
à Push & Go (3)
If Push & Go is activated, the sliding door drive starts moving automatically when it is pushed.
à Behaviour at an obstacle (4)
If the "Reverse" function is activated, the drive moves in the opposite direction when an obstacle is recognised
during closing, and stops when an obstacle is recognised during opening. Moving during reversing is always
carried out at reduced speed.
If the "Stop and stay" function is activated, the drive stops when an obstacle is recognised both during open-
ing and closing.
*) Behaviour at an obstacle (4) (only in closing direction):
à ON setting (Stop and stay) is only possible at Semi-automatic
à At Automatic mode the drive always reverses
à Closing speed (5)
At halved closing speed (OFF) the sliding door drive closes with half speed. At full closing speed (ON) the slid-
ing door drive closes with full speed.
16
2 3
1
DIP switch Description
1 Function
2 Dead-man
3 Push & Go
4 Behaviour at an obstacle *
5 Closing speed
6 Speed 70%,
Leaf weight 80 kg–60 kg
7 Speed 85 %,
Leaf weight 60 kg–40 kg
8 Speed 100%,
Leaf weight 40 kg–20 kg
– +
4
P1
3 DIP switch for configuration
4 Potentiometer for hold-open time
OFF
Semi-automatic
Deactivated
Deactivated
Reversing
Halved
Deactivated
Deactivated
Deactivated
GEZE Perlan AUT-NT
ON
Automatic
Activated
Activated
Stop and stay
Full
Activated
Activated
Activated
