Contactors

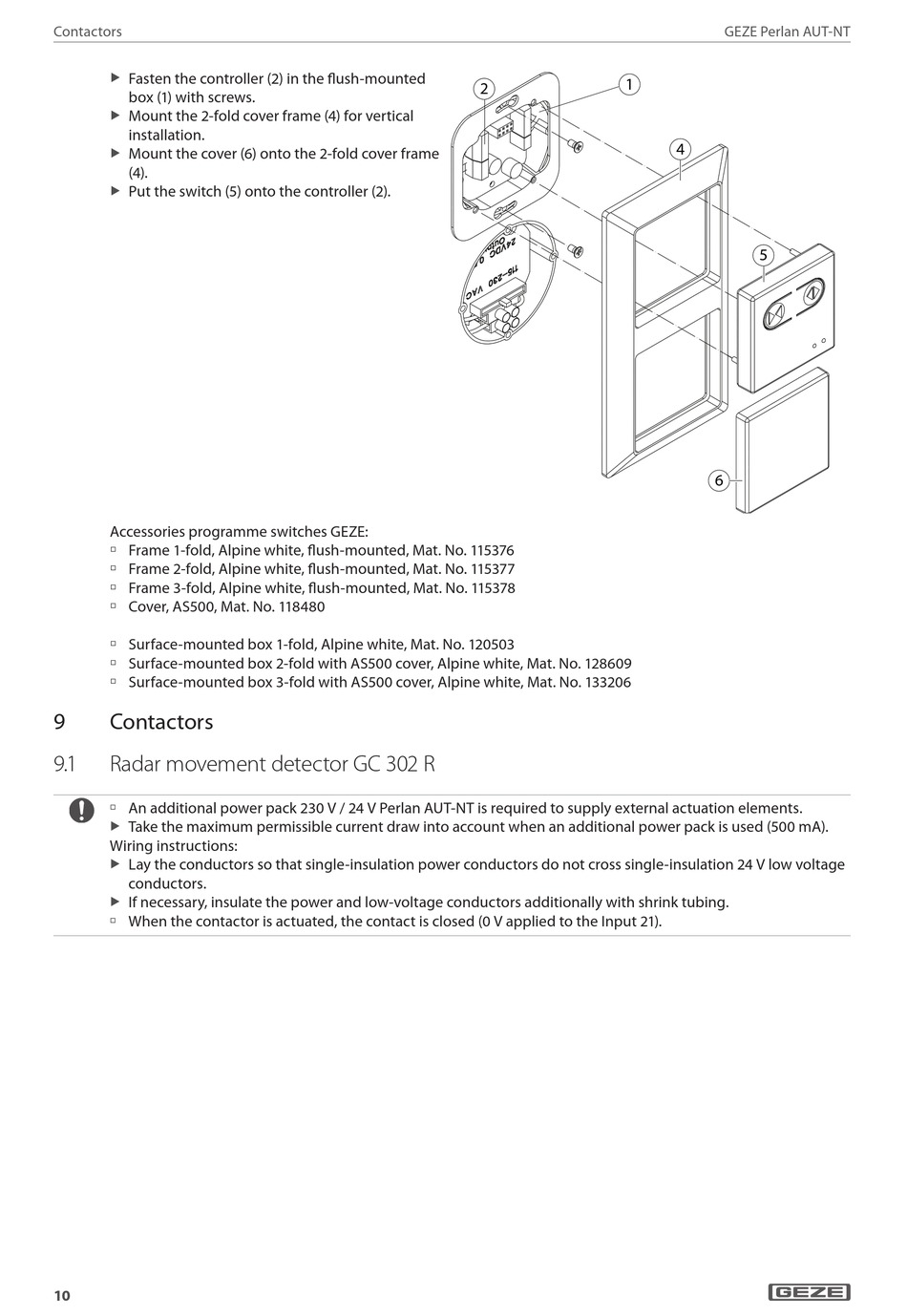

Fasten the controller (2) in the flush-mounted
X
box (1) with screws.
Mount the 2-fold cover frame (4) for vertical
X
installation.
Mount the cover (6) onto the 2-fold cover frame
X
(4).
Put the switch (5) onto the controller (2).
X
Accessories programme switches GEZE:
à Frame 1-fold, Alpine white, flush-mounted, Mat. No. 115376
à Frame 2-fold, Alpine white, flush-mounted, Mat. No. 115377
à Frame 3-fold, Alpine white, flush-mounted, Mat. No. 115378
à Cover, AS500, Mat. No. 118480
à Surface-mounted box 1-fold, Alpine white, Mat. No. 120503
à Surface-mounted box 2-fold with AS500 cover, Alpine white, Mat. No. 128609
à Surface-mounted box 3-fold with AS500 cover, Alpine white, Mat. No. 133206
9 Contactors
9. 1

Radar movement detector GC 302 R

à An additional power pack 230 V / 24 V Perlan AUT-NT is required to supply external actuation elements.
Take the maximum permissible current draw into account when an additional power pack is used (500 mA).
X
Wiring instructions:
Lay the conductors so that single-insulation power conductors do not cross single-insulation 24 V low voltage
X
conductors.
If necessary, insulate the power and low-voltage conductors additionally with shrink tubing.
X
à When the contactor is actuated, the contact is closed (0 V applied to the Input 21).
10
1
2
GEZE Perlan AUT-NT
4
5
6
