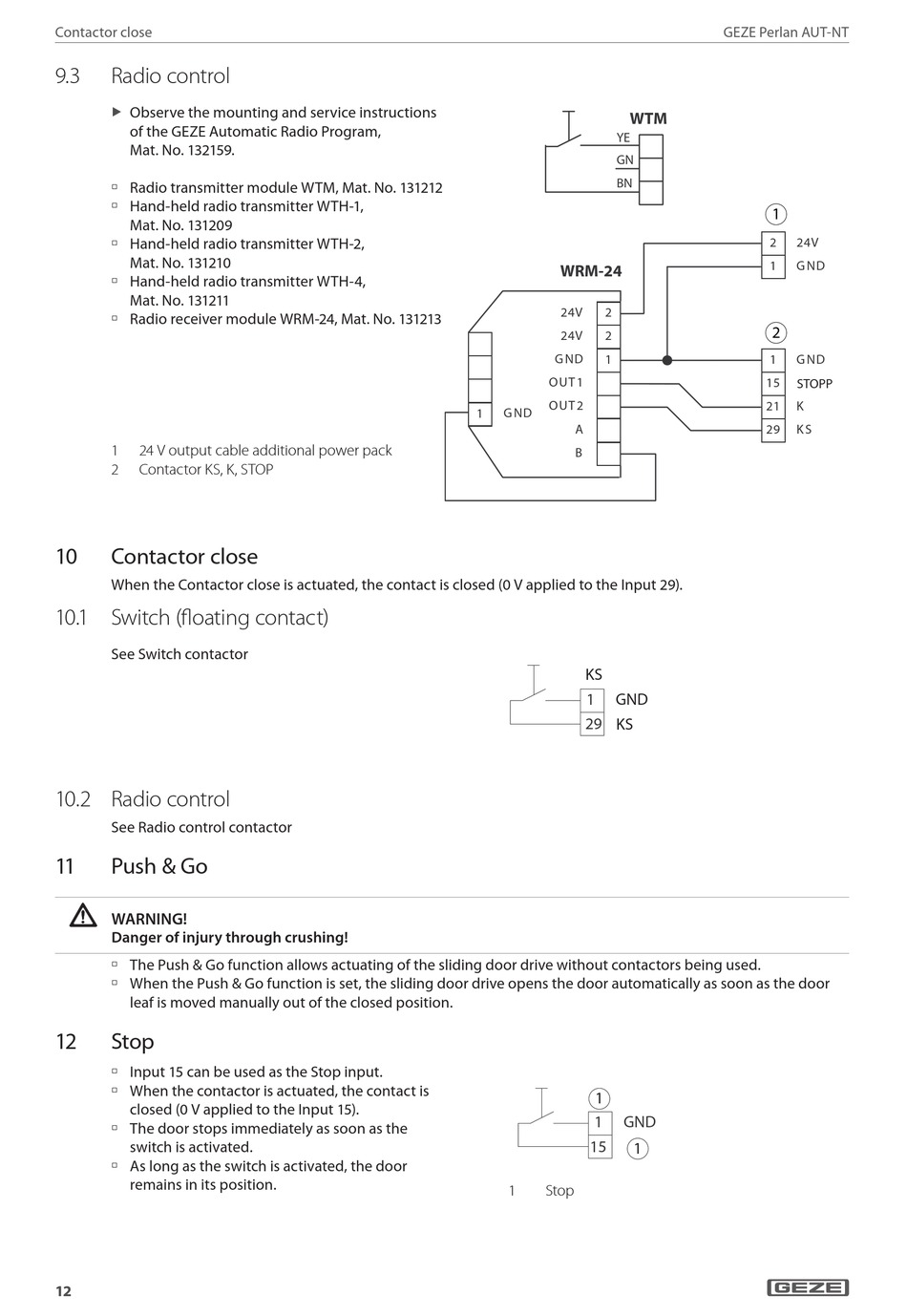

Radio Control; Contactor Close; Switch (Floating Contact); Push & Go - GEZE Perlan AUT-NT Wiring Diagram

Contactor close

9.3

Radio control

Observe the mounting and service instructions
X
of the GEZE Automatic Radio Program,
Mat. No. 132159.
à Radio transmitter module WTM, Mat. No. 131212
à Hand-held radio transmitter WTH-1,
Mat. No. 131209
à Hand-held radio transmitter WTH-2,
Mat. No. 131210
à Hand-held radio transmitter WTH-4,
Mat. No. 131211
à Radio receiver module WRM-24, Mat. No. 131213
1 24 V output cable additional power pack
2 Contactor KS, K, STOP
10 Contactor close
When the Contactor close is actuated, the contact is closed (0 V applied to the Input 29).

10. 1 Switch (floating contact)

See Switch contactor
10.2 Radio control
See Radio control contactor
11 Push & Go
WARNING!
Danger of injury through crushing!
à The Push & Go function allows actuating of the sliding door drive without contactors being used.
à When the Push & Go function is set, the sliding door drive opens the door automatically as soon as the door
leaf is moved manually out of the closed position.
12

Stop

à Input 15 can be used as the Stop input.
à When the contactor is actuated, the contact is
closed (0 V applied to the Input 15).
à The door stops immediately as soon as the
switch is activated.
à As long as the switch is activated, the door
remains in its position.
12
WTM
YE
GN
BN
WRM-24
24V
2
24V 2
G ND 1
OUT 1
OUT 2
G ND
1
A
B
KS
1 GND
29 KS
1
1 GND
15
1
1 Stop
GEZE Perlan AUT-NT
1
2 24V
1 G ND
2
1 G ND
15
STOPP
21 K
K S
29
