Component Identity & Orientation - Mojotone Tweed Champ Manual

(1) Indicator Lamp Assembly
w/ hardware
RESISTORS
(1) 2w 4.7k Metal Oxide
(1) .5w 220k Carbon Comp.
(2) .5w 22k Carbon Comp.
(1) .5w 1m Carbon Comp.
(2) .5w 1.5k Carbon Comp.
(2) .5w 100Ω Carbon Comp.
(2) .5w 68k Carbon Comp.
(2) .5w 100k Carbon Comp.

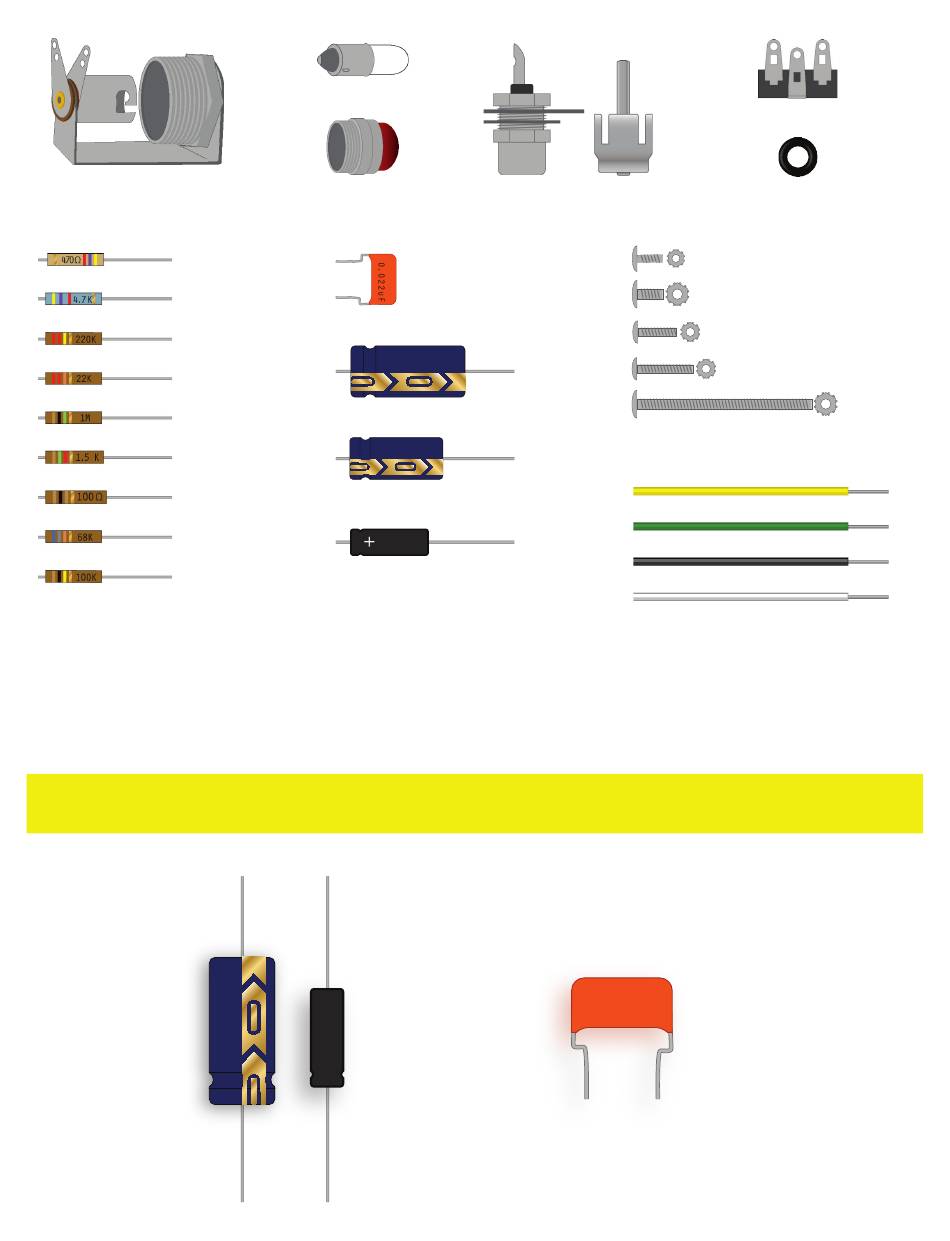

SECTION 4:
COMPONENT IDENTITY & ORIENTATION
ENSURE ALL POLARIZED CAPS ARE IN THE CORRECT ORIENTATION WHEN INSTALLING ONTO
THE BOARD. THIS IS TYPICALLY DENOTED BY AN ARROW POINTING TOWARDS THE NEG-
ATIVE SIDE, OR A SMALL INDENTION ON THE POSITIVE SIDE.
SAFETY FIRST!
A CAP IN THE WRONG ORIENTATION CAN EXPLODE! SO FOLLOW YOUR SCHEMATIC
AND WIRING DIAGRAM AND PAY CLOSE ATTENTION WHEN ORIENTING YOUR POLARIZED CAPS.
POLARIZED
--
+
(1) Pilot Light
(1) Jewel Lens
CAPACITORS
(2) .022µf @ 600v Orange Drop
16uF
(1) 16µf @ 475v Electrolytic
8uF
(2) 8µf @ 475v Electrolytic
25uF
(1) 25µf @ 50v Sprague Atom
--
+
w w w. m o j o t o n e . c o m
(1) Speaker Jack
w/ hardware
HARDWARE
(4) 4-40
(2) 8-32
(6) 4-40
(2) 6-32
(2) 10-32 1
WIRES
22 gauge Yellow Pre-Tinned
18 gauge Green Pre-Tinned
22 gauge Black Stranded
22 gauge White Stranded
NON-POLARIZED
(1) Three-Lug Ground
(2) Rubber Grommets
/ '' Screw & Kep Nuts
1
4
/ '' Screw & Kep Nuts
1
4
/ '' Screw & Kep Nuts
3
8
/ '' Screw & Kep Nuts
1
2
/ '' Screw & Kep Nuts
1
2
5
